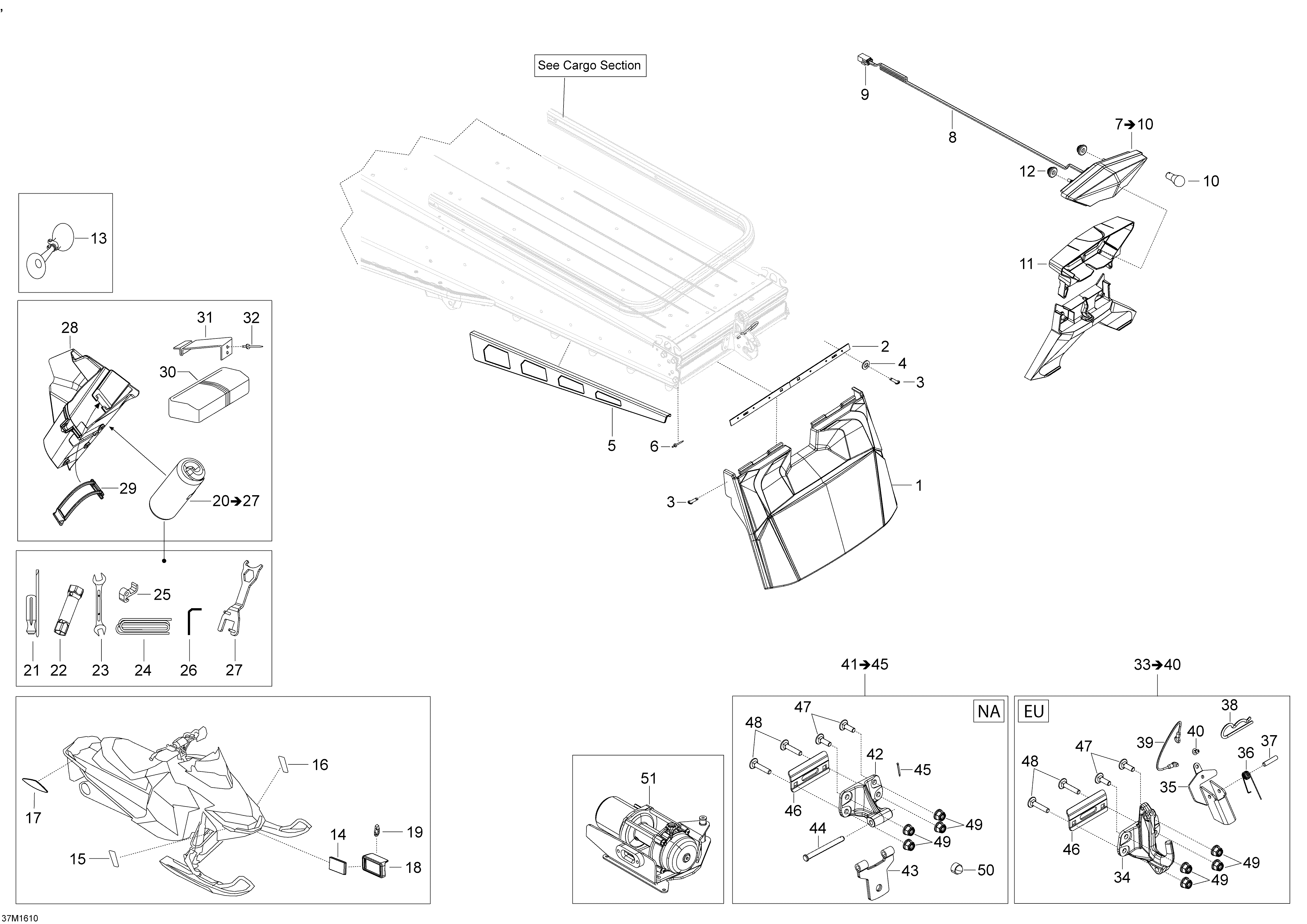

09- Utilities для BRP Ski-Doo EXPEDITION - LE-SE-Xtreme 2-STROKE - 2016
-
№АртикулНазвание
-
1520001410 Snow Guard. Model-EuropeSnow Guard. Model-Europe
-
SRFC Expedition LE 1200 4-TEC. Model-Black-Black North AmericaExpedition LE 1200 4-TEC. Model-Black-Black North America
-
1520001406 Snow Guard. Model-North AmericaSnow Guard. Model-North America
-
2520001021 Fastening PlateFastening Plate
-
3250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
4250200025 Washer M5Washer M5
-
5520000693 RH ProtectorRH Protector
-
5520000694 LH ProtectorLH Protector
-
6293150163 RivetRivet
-
7520000848 Rear Light. Includes 7 To 10Rear Light. Includes 7 To 10
-
8520000849 Wiring HarnessWiring Harness
-
9515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
10520000758 Bulb (21/5W, 12V)Bulb (21/5W, 12V)
-
11511000764 Rear Light SupportRear Light Support
-
12705003666 GrommetGrommet
-
13549011291 Horn. Model-EuropeHorn. Model-Europe
-
1421118 Bright Reflector. Model-EuropeBright Reflector. Model-Europe
-
15520001600 Yellow RH ReflectorYellow RH Reflector
-
16520001601 Yellow LH ReflectorYellow LH Reflector
-
17705002423 Amber Lateral Reflector. Model-EuropeAmber Lateral Reflector. Model-Europe
-
17705003412 Red Reflector. Model-North AmericaRed Reflector. Model-North America
-
18520000871 Reflector Support. Model-EuropeReflector Support. Model-Europe
-
1927120 Tie Rap. Model-EuropeTie Rap. Model-Europe
-
20529000077 Tool Kit. Includes 20 To 27Tool Kit. Includes 20 To 27
-
21529000004 Screw DriverScrew Driver
-
22529000046 Socket Wrench (16/21mm)Socket Wrench (16/21mm)
-
23529000002 Fork Wrench (10/13mm)Fork Wrench (10/13mm)
-
24412500200 Starter RopeStarter Rope
-
25529000060 Starter GripStarter Grip
-
26520001142 KeyKey
-
27520001499 WrenchWrench
-
28520000720 Tool Kit Rack. Model-LE & SETool Kit Rack. Model-LE & SE
-
29520000528 Latch. Model-LE & SELatch. Model-LE & SE
-
30708200043 Tool Box. Model-ExtremeTool Box. Model-Extreme
-
315346728 Tool Box Support. Model-ExtremeTool Box Support. Model-Extreme
-
3236108 Rivet. Model-ExtremeRivet. Model-Extreme
-
33520001475 Hitch Ass'y. Includes 33 To 40, Model-EuropeHitch Ass'y. Includes 33 To 40, Model-Europe
-
3741012 Spring Pin 6 x 30Spring Pin 6 x 30
-
3841029 Cotter SpringCotter Spring
-
40390909100 Avex RivetAvex Rivet
-
41520001398 Hitch Ass'y. Includes 41 To 45, Model-North AmericaHitch Ass'y. Includes 41 To 45, Model-North America
-
44560309200 Retainer PinRetainer Pin
-
4541031 Cotter PinCotter Pin
-
46520000727 PlatePlate
-
47207782544 Screw M8 x 25Screw M8 x 25
-
48207784044 Screw M8 x 40Screw M8 x 40
-
49233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
5028056 Cover. Model-North AmericaCover. Model-North America
-
51619400069 Winch Kit. Model-SEWinch Kit. Model-SE
