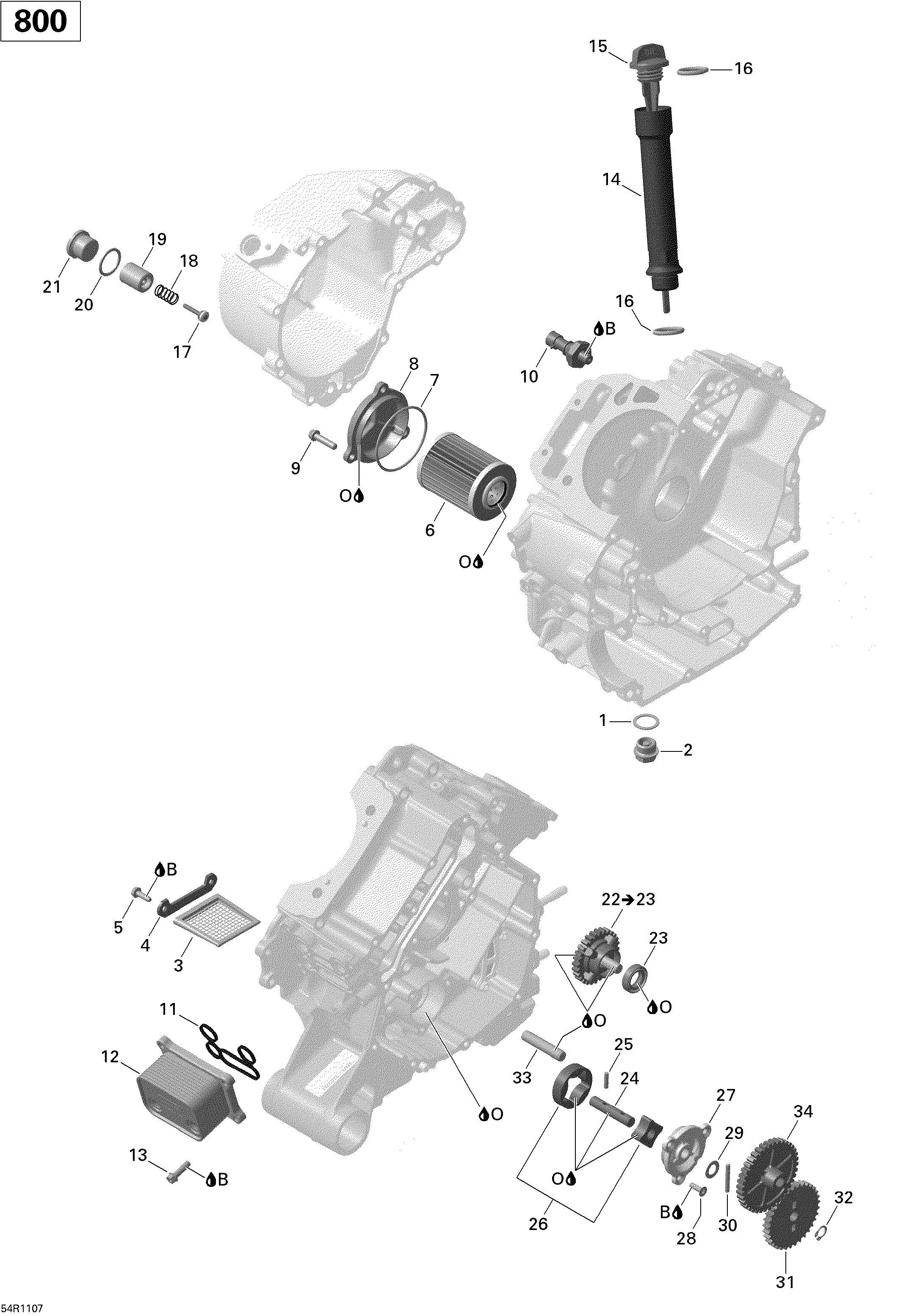

01- Engine Lubrication для BRP Commander 800 - 2011
-
№АртикулНазвание
-
1420552280 O-RingO-Ring
-
2420840277 Drain Plug M18 X 1.5Drain Plug M18 X 1.5
-
3420256321 Oil SieveOil Sieve
-
4420612070 Cover SieveCover Sieve
-
5420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
6420256188 Oil FilterOil Filter
-
7420230920 O-RingO-Ring
-
8420210418 Oil Filter CoverOil Filter Cover
-
9420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
10420256915 Oil Pressure SwitchOil Pressure Switch
-
11420430325 Oil SealOil Seal
-
12420890180 Oil RadiatorOil Radiator
-
13420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
14420856922 Oil Lever TubeOil Lever Tube
-
15420856810 Oil DipstickOil Dipstick
-
16420631640 O-RingO-Ring
-
17420656370 Pressure Relief ValvePressure Relief Valve
-
18420939485 Compression SpringCompression Spring
-
19420256486 Housing ValveHousing Valve
-
20420650465 Gasket RingGasket Ring
-
21420640270 Screw PlugScrew Plug
-
22420434307 Idle Gear Ass'y, 28 Teeth. Includes 22 to 23Idle Gear Ass'y, 28 Teeth. Includes 22 to 23
-
23420430555 Oil SealOil Seal
-
24420237059 Oil Pump ShaftOil Pump Shaft
-
25420232730 Needle PinNeedle Pin
-
26420256347 Oil Pump RotorOil Pump Rotor
-
27420210641 Oil Pump CoverOil Pump Cover
-
28420640821 Torx Screw M5 X 16Torx Screw M5 X 16
-
29420827590 Thrust WasherThrust Washer
-
30420232430 Needle PinNeedle Pin
-
31420434320 Oil Pump Gear, 33 TeethOil Pump Gear, 33 Teeth
-
32420245330 Snap RingSnap Ring
-
33420229301 Location PinLocation Pin
-
34420434300 Idle Gear, 38 TeethIdle Gear, 38 Teeth
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
