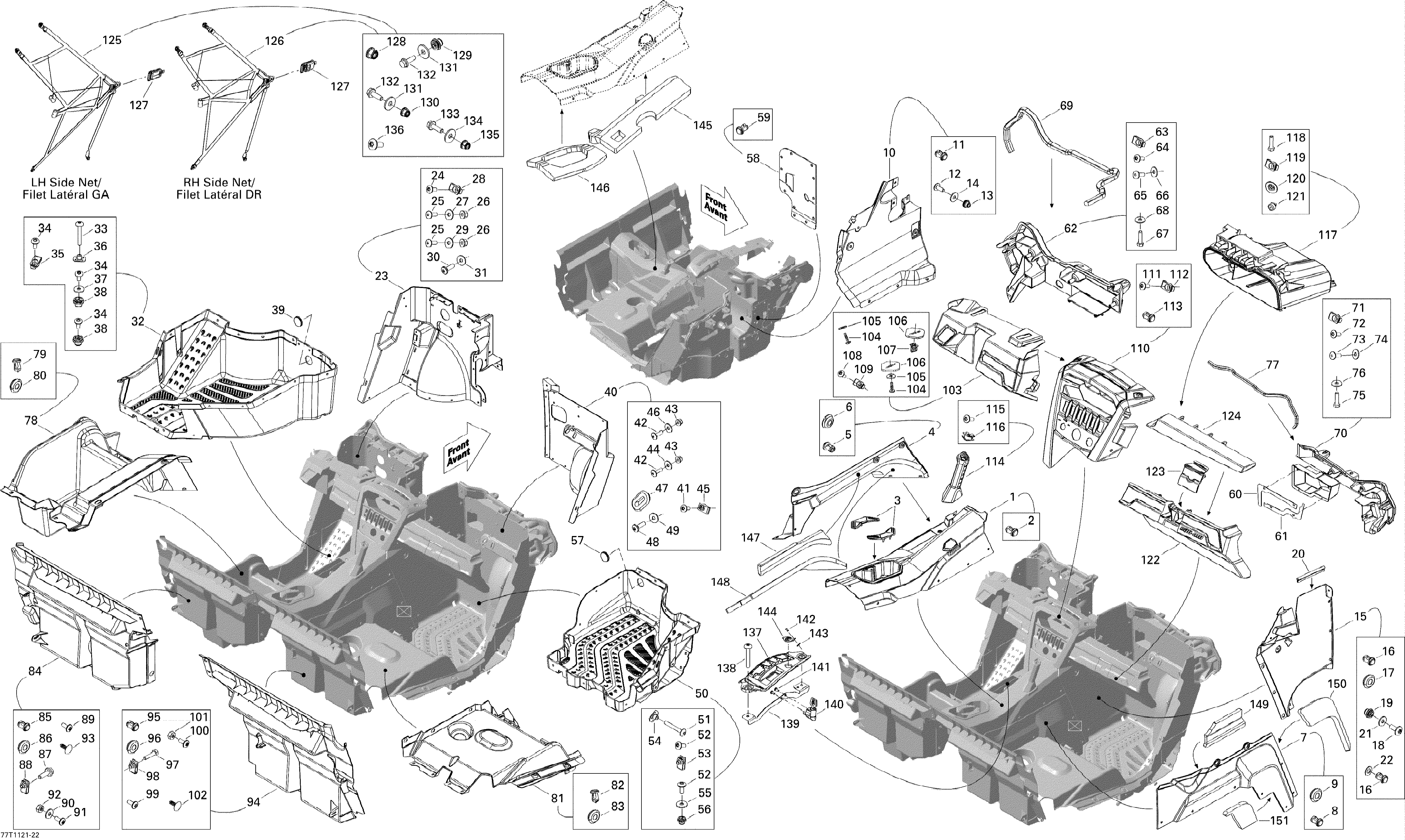

09- Cab Interior для BRP Commander 800 - 2011
-
№АртикулНазвание
-
1715001247 Central Console Ass'yCentral Console Ass'y
-
2293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3707900036 Cup RetainerCup Retainer
-
4707900001 LH Side ConsoleLH Side Console
-
5293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
6705003264 GrommetGrommet
-
7707900002 RH Side ConsoleRH Side Console
-
8293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
9705003264 GrommetGrommet
-
10707900017 LH Fixe Side ConsoleLH Fixe Side Console
-
11293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
12250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
13293450274 InsertInsert
-
14234062670 Flat WasherFlat Washer
-
15707900021 RH Fixe Side ConsoleRH Fixe Side Console
-
16293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
17705003264 GrommetGrommet
-
18250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
19293450274 InsertInsert
-
20293250240 Neoprene sealNeoprene seal
-
21234062670 Flat WasherFlat Washer
-
22506151252 WasherWasher
-
23707900003 LH Front FloorLH Front Floor
-
24250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
25250000335 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
26233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
27234062670 Flat WasherFlat Washer
-
28250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
29234062670 Flat WasherFlat Washer
-
30250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
31234062410 Flat Washer 6 mmFlat Washer 6 mm
-
32707900022 LH Lower FloorLH Lower Floor
-
33250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
34250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
35250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
36293100003 Nut M6Nut M6
-
37234062670 Flat WasherFlat Washer
-
38293450274 InsertInsert
-
39293250242 Rubber CoverRubber Cover
-
40707900004 RH Front FloorRH Front Floor
-
41250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
42250000335 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
43233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
44234062670 Flat WasherFlat Washer
-
45250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
46234062670 Flat WasherFlat Washer
-
47705003668 Oblong GrommetOblong Grommet
-
48250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
49234062410 Flat Washer 6 mmFlat Washer 6 mm
-
50707900023 RH Lower FloorRH Lower Floor
-
51250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
52250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
53250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
54293100003 Nut M6Nut M6
-
55234062670 Flat WasherFlat Washer
-
56293450274 InsertInsert
-
57293250242 Rubber CoverRubber Cover
-
58707900039 DeflectorDeflector
-
59293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
60293250252 Upper SealUpper Seal
-
61293250253 Bottom SealBottom Seal
-
62707900029 LH Floor SupportLH Floor Support
-
63250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
64250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
65250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
66224060201 Flat WasherFlat Washer
-
67207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
68224061201 Flat WasherFlat Washer
-
69293200093 Neoprene SealNeoprene Seal
-
70707900030 RH Floor SupportRH Floor Support
-
71250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
72250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
73250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
74224060201 Flat WasherFlat Washer
-
75207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
76224061201 Flat WasherFlat Washer
-
77293200093 Neoprene SealNeoprene Seal
-
78715001264 LH Under Cover Ass'yLH Under Cover Ass'y
-
79293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
80705003264 GrommetGrommet
-
81707900006 RH Under Cover Ass'yRH Under Cover Ass'y
-
82293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
83705003264 GrommetGrommet
-
84707900007 LH Rear DeflectorLH Rear Deflector
-
85293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
86705003264 GrommetGrommet
-
87207662034 Hex. Flanged ScrewHex. Flanged Screw
-
88250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
89250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
90234082410 Flat Washer 8 mmFlat Washer 8 mm
-
91250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
92232061600 Hex. Nut M6Hex. Nut M6
-
93293730011 Dart, BlackDart, Black
-
94707900008 RH Rear DeflectorRH Rear Deflector
-
95293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
96705003264 GrommetGrommet
-
97207662034 Hex. Flanged ScrewHex. Flanged Screw
-
98250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
99250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
100250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
101233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
102293730011 Dart, BlackDart, Black
-
103715001250 Dashboard Ass'yDashboard Ass'y
-
104250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
105234062670 Flat WasherFlat Washer
-
106705003841 Support PlateSupport Plate
-
107517302785 ClipClip
-
108250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
109250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
110715001265 Central Dashboard Ass'yCentral Dashboard Ass'y
-
111250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
112250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
113293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
114707900011 Passenger HandlePassenger Handle
-
115250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
116707900048 Connector TubeConnector Tube
-
117707900009 Storage BinStorage Bin
-
117707900046 Storage Bin. XTStorage Bin. XT
-
118207662034 Hex. Flanged ScrewHex. Flanged Screw
-
119250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
120414859400 CapCap
-
121293830005 Rubber Plug, BlackRubber Plug, Black
-
122715001263 Bin Cover Ass'yBin Cover Ass'y
-
123707900031 LatchLatch
-
124707900062 Trim Glove BoxTrim Glove Box
-
125707900033 LH Lateral Net. Upper Link 707900049LH Lateral Net. Upper Link 707900049
-
126707900034 RH Lateral Net. Upper Link 707900049RH Lateral Net. Upper Link 707900049
-
127707900035 BuckleBuckle
-
128233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
129293450274 InsertInsert
-
130233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
131234062410 Flat Washer 6 mmFlat Washer 6 mm
-
132207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
133207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
134234082410 Flat Washer 8 mmFlat Washer 8 mm
-
135233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
136250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
137707900037 Lever IndicatorLever Indicator
-
138250000081 Torx Screw M6 X 25Torx Screw M6 X 25
-
145707900041 Front Central Console FoamFront Central Console Foam
-
146707900042 Rear Central Console FoamRear Central Console Foam
-
147707900043 LH Upper Lateral Console FoamLH Upper Lateral Console Foam
-
148707900044 LH Lower Lateral Console FoamLH Lower Lateral Console Foam
-
149707900045 RH Lateral Console FoamRH Lateral Console Foam
-
150707900055 RH Lateral Console FoamRH Lateral Console Foam
-
151707900056 RH Lateral Console FoamRH Lateral Console Foam
