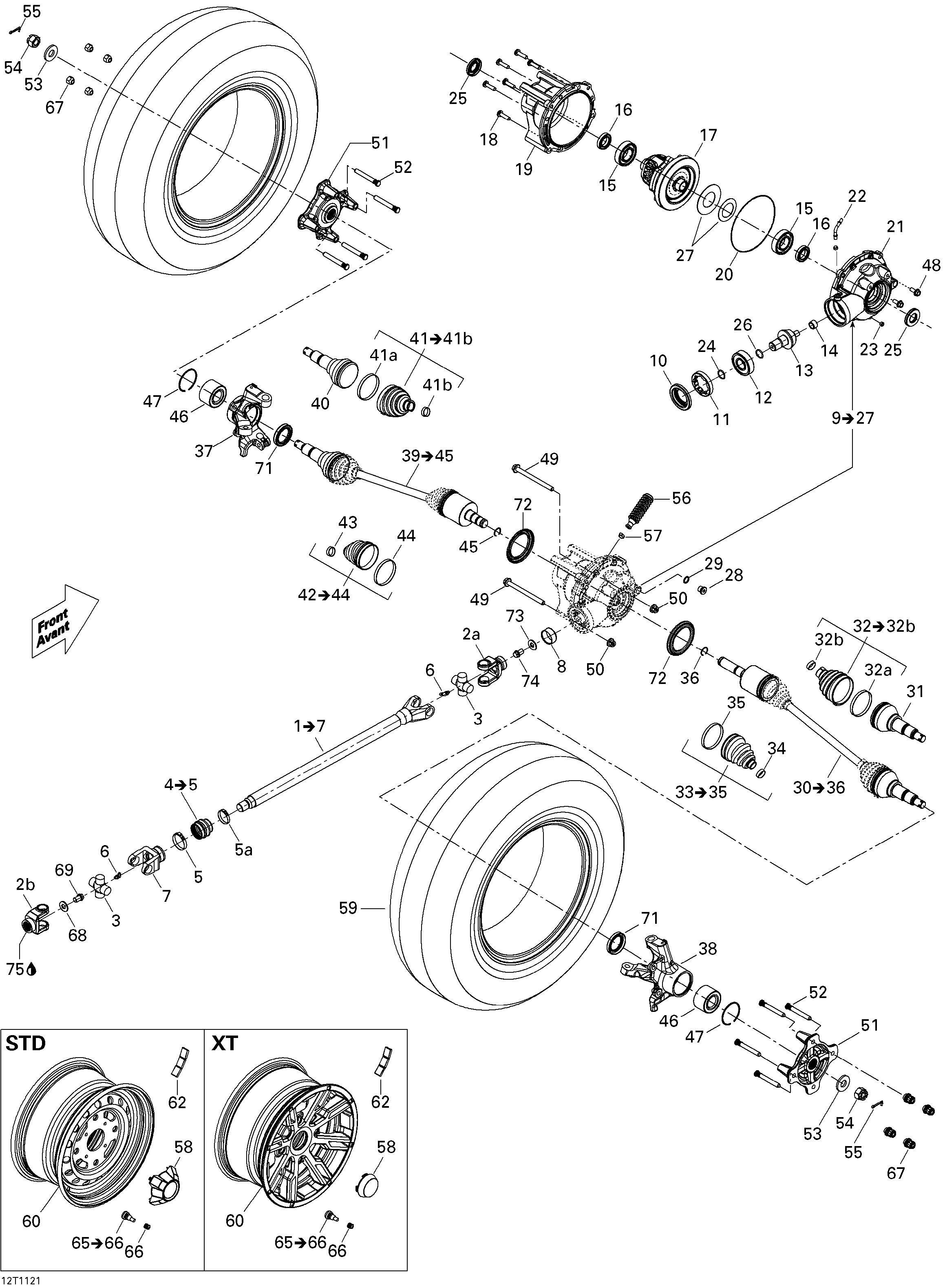

07- Drive System, Front для BRP Commander 800 - 2011
-
№АртикулНазвание
-
1705400637 Drive Axle Ass'y. Includes 1 to 7Drive Axle Ass'y. Includes 1 to 7
-
2a705500348 Fix JointFix Joint
-
2b705400782 Fix JointFix Joint
-
3703000024 Unit Pack KitUnit Pack Kit
-
4703500255 Rubber Boot Kit. Includes 4 to 5Rubber Boot Kit. Includes 4 to 5
-
5293650138 Oetiker ClampOetiker Clamp
-
5a705400148 CollarCollar
-
6715900067 Grease FittingGrease Fitting
-
7705500762 Slip JointSlip Joint
-
8705400036 Wear RingWear Ring
-
9705401048 Differential Ass'y. Includes 9 to 29Differential Ass'y. Includes 9 to 29
-
10705400027 Oil SealOil Seal
-
11705400661 NutNut
-
12705500260 Ball BearingBall Bearing
-
13705501051 10 Teeth Pinion10 Teeth Pinion
-
14705500261 Needle BearingNeedle Bearing
-
15705500259 Ball BearingBall Bearing
-
16293350044 Ball BearingBall Bearing
-
17705400645 DifferentialDifferential
-
18705500892 ScrewScrew
-
19705400297 Front CoverFront Cover
-
20705500265 SealSeal
-
21705401049 Front CoverFront Cover
-
22705500893 Vent ValveVent Valve
-
23705500894 Drain PlugDrain Plug
-
24705500267 O-RingO-Ring
-
25705500255 Oil SealOil Seal
-
26703500049 Pinion Shim KitPinion Shim Kit
-
26705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
26705501162 Pinion Gear ShimPinion Gear Shim
-
26705501163 Pinion Gear Shim 2.12mmPinion Gear Shim 2.12mm
-
27703500288 Differential Shim KitDifferential Shim Kit
-
27703500050 Differential Shim KitDifferential Shim Kit
-
28705500504 Fill Level PlugFill Level Plug
-
29705500506 Copper WasherCopper Washer
-
30705400952 RH CV Joint Ass'y. Includes 30 to 36RH CV Joint Ass'y. Includes 30 to 36
-
31705501238 CV JointCV Joint
-
32705500907 Boot Kit. Includes 32 to 32bBoot Kit. Includes 32 to 32b
-
32a715900139 Oetiker ClampOetiker Clamp
-
32b293650192 Oetiker ClampOetiker Clamp
-
33705400512 Differential Boot Kit. Includes 33 a 35Differential Boot Kit. Includes 33 a 35
-
34293650192 Oetiker ClampOetiker Clamp
-
35293650193 Oetiker ClampOetiker Clamp
-
36705400042 CirclipCirclip
-
37705401008 LH KnuckleLH Knuckle
-
38705401009 RH KnuckleRH Knuckle
-
39705400953 LH CV Joint Ass'y. Includes 39 to 45LH CV Joint Ass'y. Includes 39 to 45
-
40705501238 CV JointCV Joint
-
41705500907 Boot Kit. Includes 41 to 41bBoot Kit. Includes 41 to 41b
-
41a715900139 Oetiker ClampOetiker Clamp
-
41b293650192 Oetiker ClampOetiker Clamp
-
42705400512 Differential Boot Kit. Includes 42 to 44Differential Boot Kit. Includes 42 to 44
-
43293650192 Oetiker ClampOetiker Clamp
-
44293650193 Oetiker ClampOetiker Clamp
-
45705400042 CirclipCirclip
-
46293350040 Cone BearingCone Bearing
-
47293370019 CirclipCirclip
-
48207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
49230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
50233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
51705400713 Wheel HubWheel Hub
-
52705400791 Wheel StudWheel Stud
-
53250200049 Spring WasherSpring Washer
-
54250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
55250400036 Cotter PinCotter Pin
-
56705400352 Rubber BellowRubber Bellow
-
57293650042 Oetiker ClampOetiker Clamp
-
58705400504 Wheel Cap. XT CAMOWheel Cap. XT CAMO
-
58705400520 Wheel Cap. XT Except CAMOWheel Cap. XT Except CAMO
-
58705400921 Wheel Cap. STDWheel Cap. STD
-
59705400631 Front Tire. XT International Except CAMOFront Tire. XT International Except CAMO
-
59705400631 Front Tire. XT North America Except CAMOFront Tire. XT North America Except CAMO
-
59705400781 Front Tire. STDFront Tire. STD
-
59705400631 Front Tire. XT CAMOFront Tire. XT CAMO
-
60705400632 Silver Front Rim. XT International Except CAMOSilver Front Rim. XT International Except CAMO
-
60705400632 Silver Front Rim. XT North America Except CAMOSilver Front Rim. XT North America Except CAMO
-
60705400910 Front Rim. STDFront Rim. STD
-
60705400919 Black Front Rim. XT CAMOBlack Front Rim. XT CAMO
-
60705400910 Front Rim. STDFront Rim. STD
-
62705501385 1/2 OZ Weight1/2 OZ Weight
-
65705400193 Rim Valve with CapRim Valve with Cap
-
66293000110 Valve CapValve Cap
-
67250100042 Wheel Nut. STDWheel Nut. STD
-
67250100082 Chrome Wheel Nut M10 X 1.25. XT Except CAMOChrome Wheel Nut M10 X 1.25. XT Except CAMO
-
67250100100 Black Wheel Nut M10 X 1.25. XT CAMOBlack Wheel Nut M10 X 1.25. XT CAMO
-
68250200102 Flat Washer M12Flat Washer M12
-
69250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
70293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
71293250246 O-RingO-Ring
-
72705400780 Wear SleeveWear Sleeve
-
73250200102 Flat Washer M12Flat Washer M12
-
74250000378 Hex Flanged Screw S.Grip M12 X 16Hex Flanged Screw S.Grip M12 X 16
-
75293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
