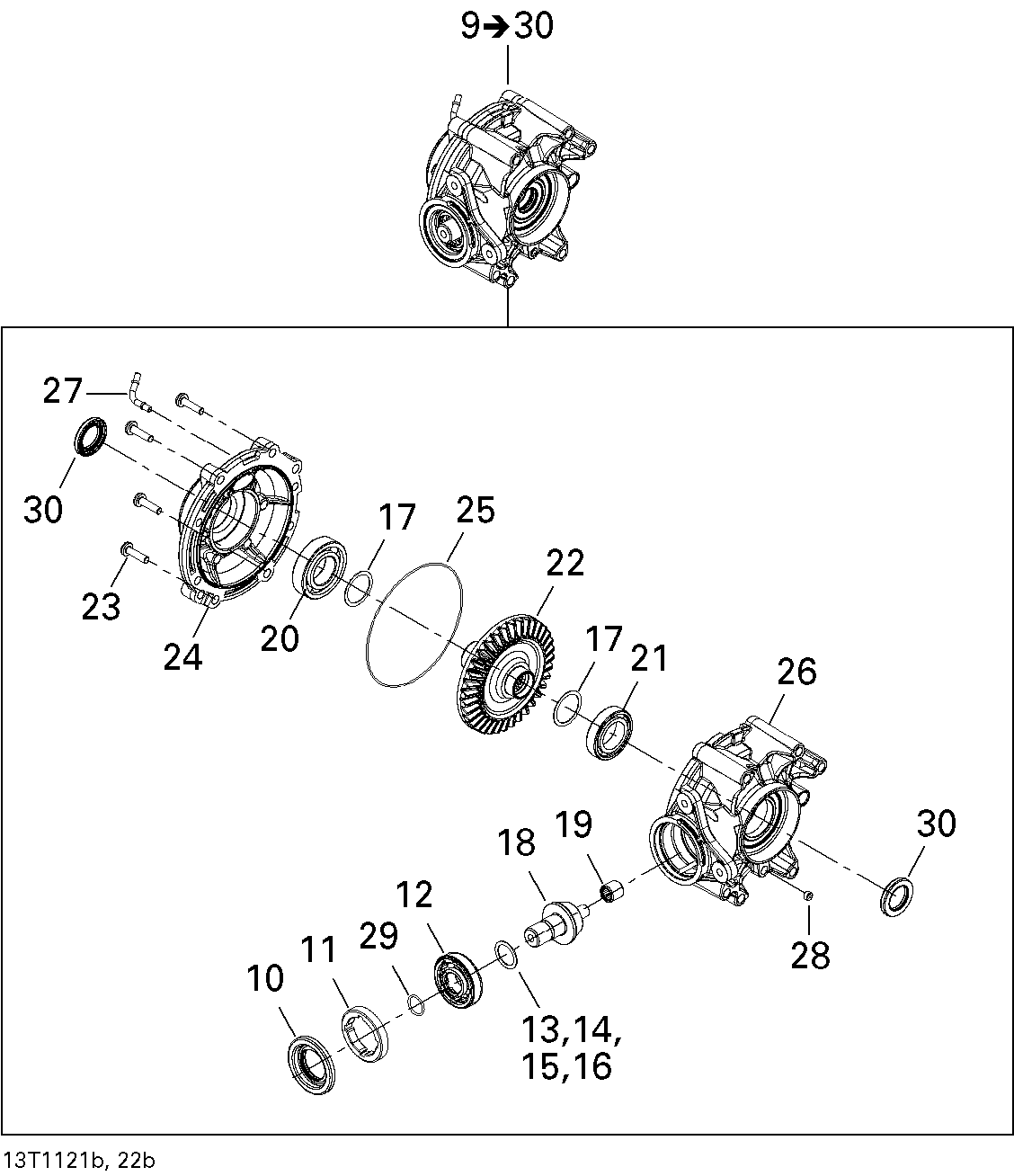

08- Differential Ass, Rear 2 для BRP Commander 800 - 2011
-
№АртикулНазвание
-
10705400027 Oil Seal. After 2010-10-14Oil Seal. After 2010-10-14
-
11705500987 Nut. After 2010-10-14Nut. After 2010-10-14
-
12705500260 Ball Bearing. After 2010-10-14Ball Bearing. After 2010-10-14
-
13705500075 Pinion Gear Shim .022''. After 2010-10-14Pinion Gear Shim .022''. After 2010-10-14
-
14703500049 Pinion Shim Kit. After 2010-10-14Pinion Shim Kit. After 2010-10-14
-
15705501162 Pinion Gear Shim. After 2010-10-14Pinion Gear Shim. After 2010-10-14
-
16705501163 Pinion Gear Shim 2.12mm. After 2010-10-14Pinion Gear Shim 2.12mm. After 2010-10-14
-
17703500548 Differential Shim Kit. After 2010-10-14Differential Shim Kit. After 2010-10-14
-
19705501408 Needle Bearing. After 2010-10-14Needle Bearing. After 2010-10-14
-
20705500749 Ball Bearing. After 2010-10-14Ball Bearing. After 2010-10-14
-
21705501389 Ball Bearing. After 2010-10-14Ball Bearing. After 2010-10-14
-
22705501397 Gear, 36 Tooth. After 2010-10-14Gear, 36 Tooth. After 2010-10-14
-
23705500892 Screw. After 2010-10-14Screw. After 2010-10-14
-
24705501393 Rear Cover. After 2010-10-14Rear Cover. After 2010-10-14
-
25705500265 Seal. After 2010-10-14Seal. After 2010-10-14
-
26705501395 Pinion Rear Cover. After 2010-10-14Pinion Rear Cover. After 2010-10-14
-
27705500893 Vent Valve. After 2010-10-14Vent Valve. After 2010-10-14
-
28705500894 Drain Plug. After 2010-10-14Drain Plug. After 2010-10-14
-
29705500267 O-Ring. After 2010-10-14O-Ring. After 2010-10-14
-
30705501196 Oil Seal. After 2010-10-14Oil Seal. After 2010-10-14
-
6CBA 00049 - 00328. STD, 800EFI, Yellow, C/U. After 2010-10-1400049 - 00328. STD, 800EFI, Yellow, C/U. After 2010-10-14
-
6CBC 00007 - 00334. STD, 800EFI, Yellow, INT. After 2010-10-1400007 - 00334. STD, 800EFI, Yellow, INT. After 2010-10-14
-
6DBA 00003 - 00305. XT, 800EFI, Yellow, C/U. After 2010-10-1400003 - 00305. XT, 800EFI, Yellow, C/U. After 2010-10-14
