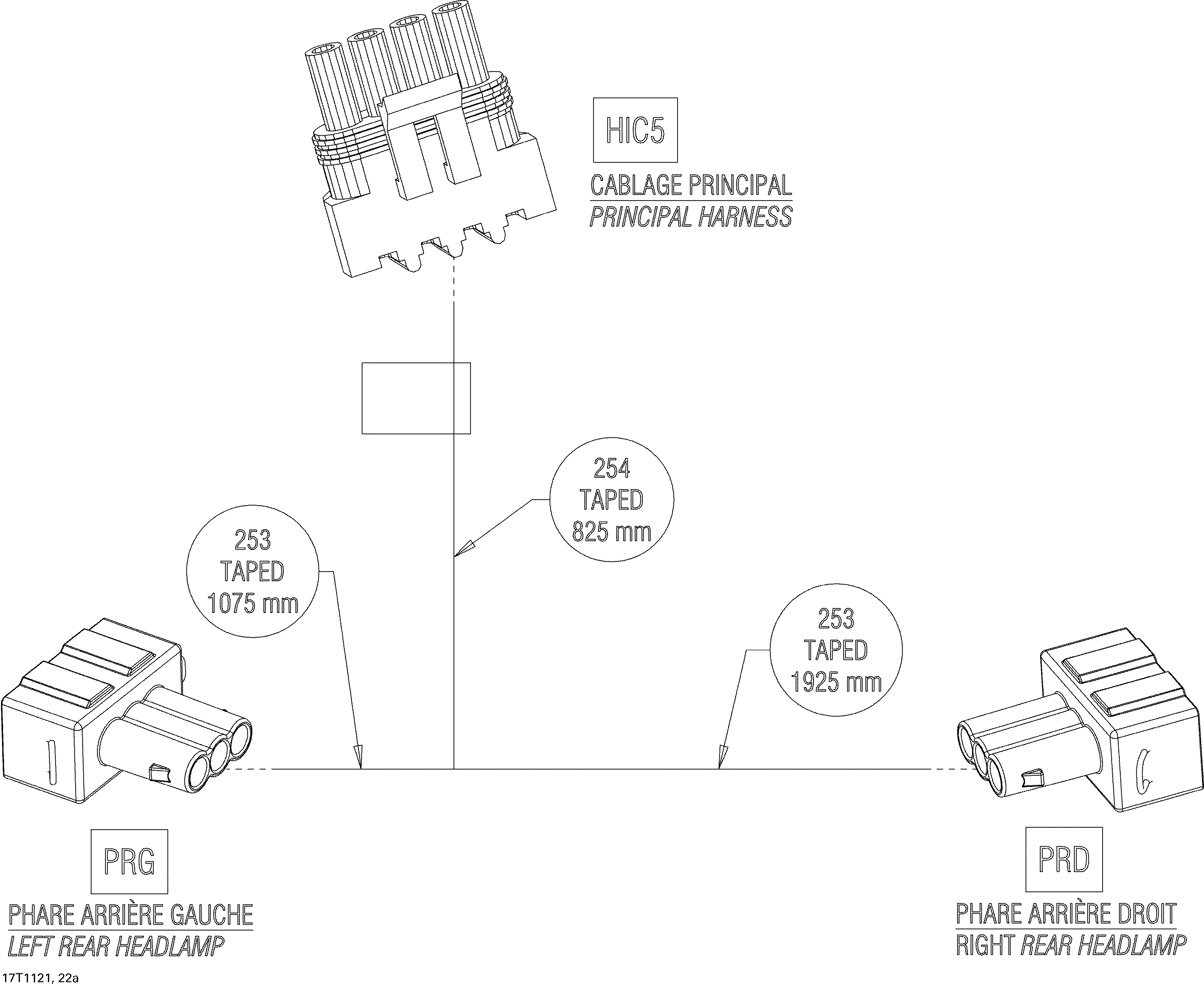

10- Electrical Harness, Rear Section для BRP Commander 800 - 2011
-
№АртикулНазвание
-
HIC5278000395 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
HIC5278000585 Wire Seal (20 Gauge) (Purple)(Packard)Wire Seal (20 Gauge) (Purple)(Packard)
-
HIC5278000223 Female TerminalFemale Terminal
-
PRD710002104 HousingHousing
-
PRD415128501 SealSeal
-
PRD278000998 Female TerminalFemale Terminal
-
PRG710002104 HousingHousing
-
PRG415128501 SealSeal
-
PRG278000998 Female TerminalFemale Terminal
