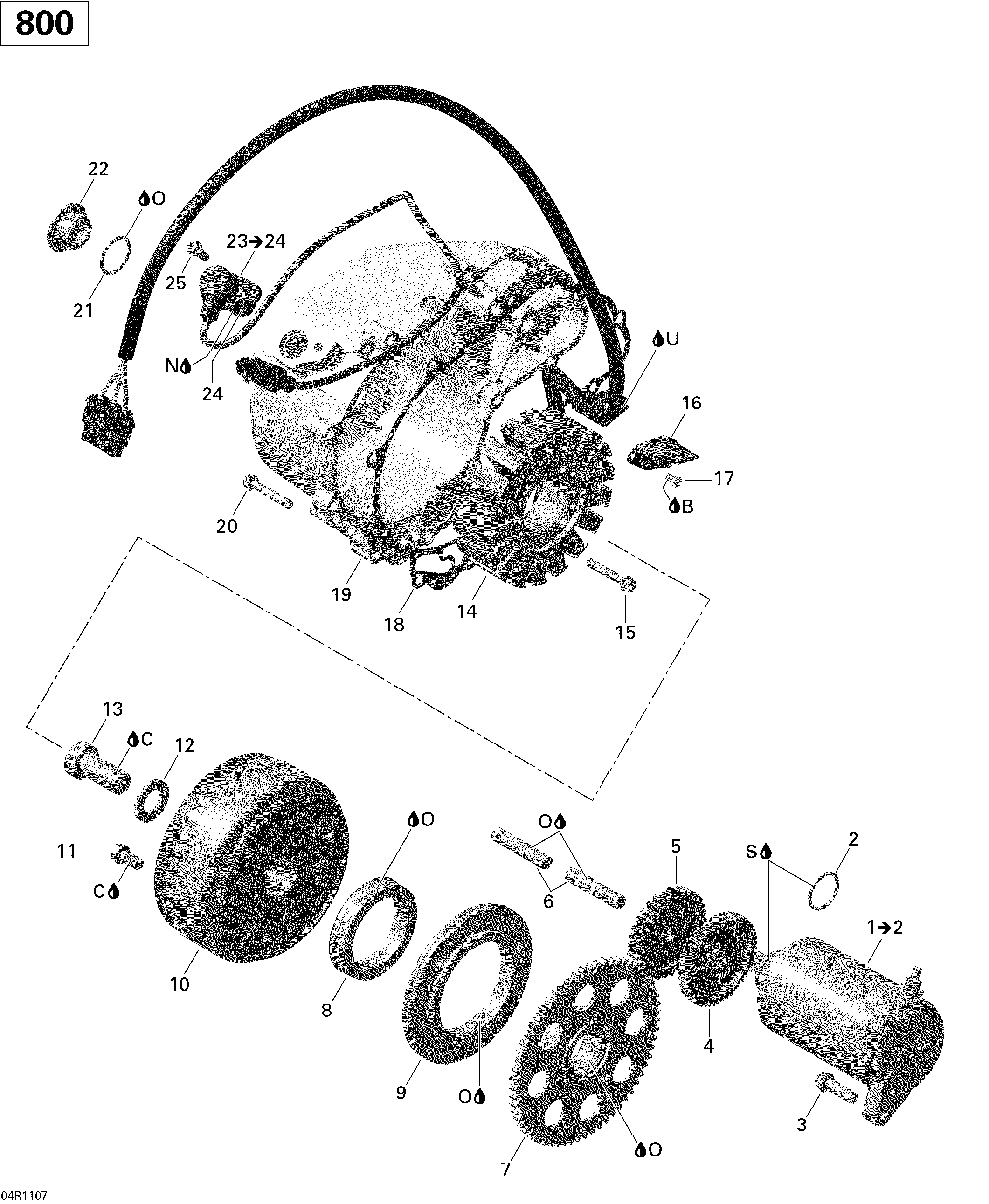

03- Magneto And Electric Starter для BRP Commander 800 - 2011
-
№АртикулНазвание
-
1420684560 Starter Ass'y. Includes 1 to 2Starter Ass'y. Includes 1 to 2
-
2420250140 O-RingO-Ring
-
3420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
4420634741 Double GearDouble Gear
-
5420634605 Gear, 30 TeethGear, 30 Teeth
-
6420229301 Location PinLocation Pin
-
7420434235 Free Wheel Gear, 64 TeethFree Wheel Gear, 64 Teeth
-
8420659112 Sprag ClutchSprag Clutch
-
9420659261 Sprag Clutch HousingSprag Clutch Housing
-
10420685649 FlywheelFlywheel
-
11420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
12420627270 ShimShim
-
13420241549 Socket Head Screw M16 X 35Socket Head Screw M16 X 35
-
14420685631 Stator PlateStator Plate
-
15420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
16420251880 Cable Inner CoverCable Inner Cover
-
17420240195 Tapping Screw M4 X 8Tapping Screw M4 X 8
-
18420651200 GasketGasket
-
19420611132 CoverCover
-
20420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
21420430782 O-RingO-Ring
-
22420241630 Screw PlugScrew Plug
-
23420966570 Crankshaft Position Sensor. Includes 23 to 24Crankshaft Position Sensor. Includes 23 to 24
-
24420431580 O-RingO-Ring
-
25420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
C413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
N293550030 Grease, Super LubeGrease, Super Lube
-
S293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
U420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
