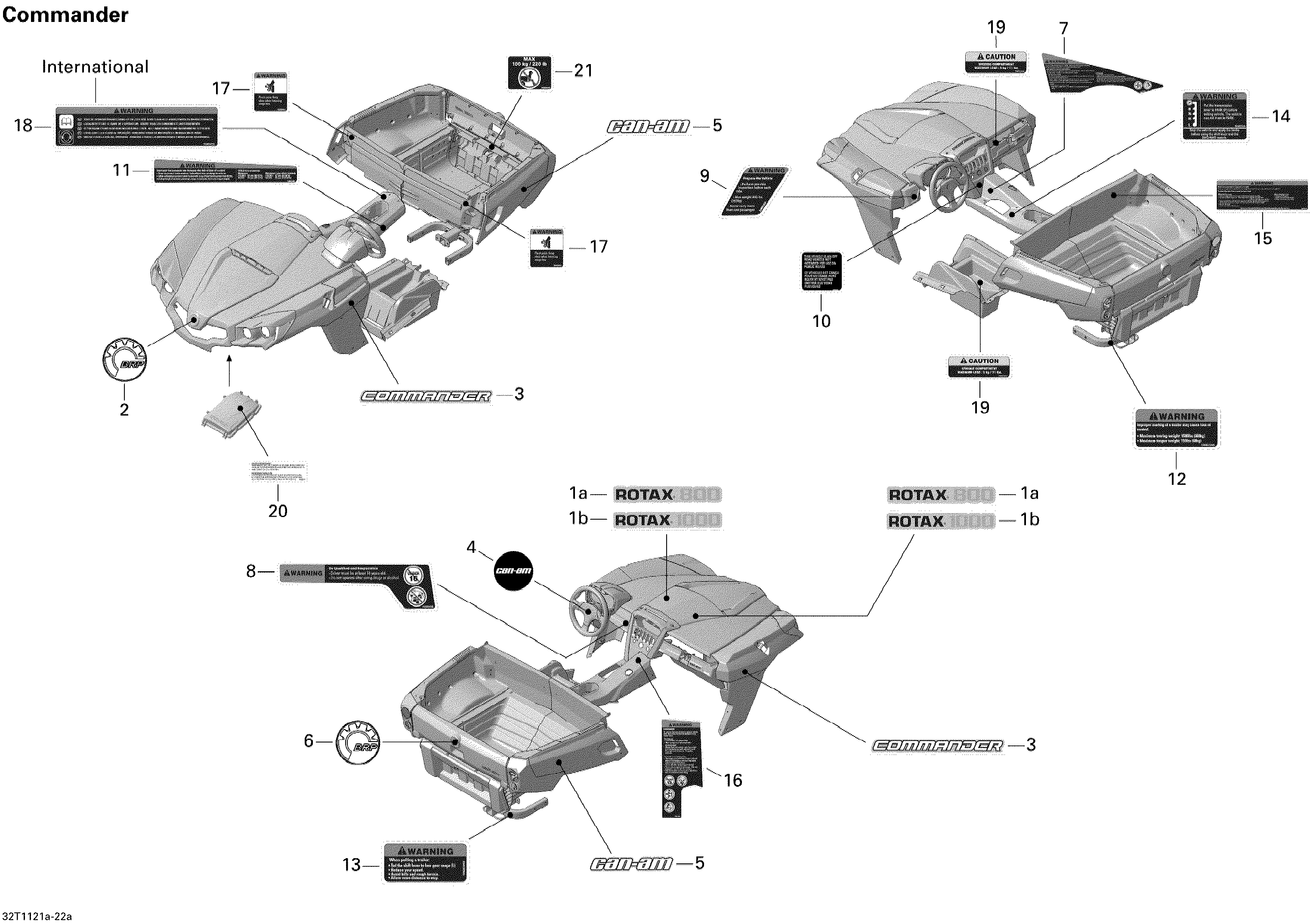

09- Decals STD для BRP Commander 800 - 2011
-
№АртикулНазвание
-
1a704901996 Hood Decal, Rotax 800Hood Decal, Rotax 800
-
2219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
3704902310 Side Decal, CommanderSide Decal, Commander
-
4704902065 Logo Can-Am, 35 mmLogo Can-Am, 35 mm
-
5704902320 Decal, Can-AmDecal, Can-Am
-
6219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
7704902328 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
8704902414 Warning Decal, ResponsibleWarning Decal, Responsible
-
9704902332 Warning Decal, VehicleWarning Decal, Vehicle
-
10704902407 Decal, Public Roads UseDecal, Public Roads Use
-
11704902334 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
12704902336 Warning Decal, TowingWarning Decal, Towing
-
13704902345 Warning Decal, TrailerWarning Decal, Trailer
-
14704902338 Warning Decal, TransmissionWarning Decal, Transmission
-
15704902343 Warning Decal, Cargo BoxWarning Decal, Cargo Box
-
16704902347 Warning Decal, PassengerWarning Decal, Passenger
-
17704902350 Warning Decal, InjuryWarning Decal, Injury
-
18704902422 Warning Decal, Multilingual. InternationalWarning Decal, Multilingual. International
-
19704902434 Caution Decal, Maximum LoadCaution Decal, Maximum Load
-
20707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
21704902420 Decal, MAX 100 kg/220 lbDecal, MAX 100 kg/220 lb
