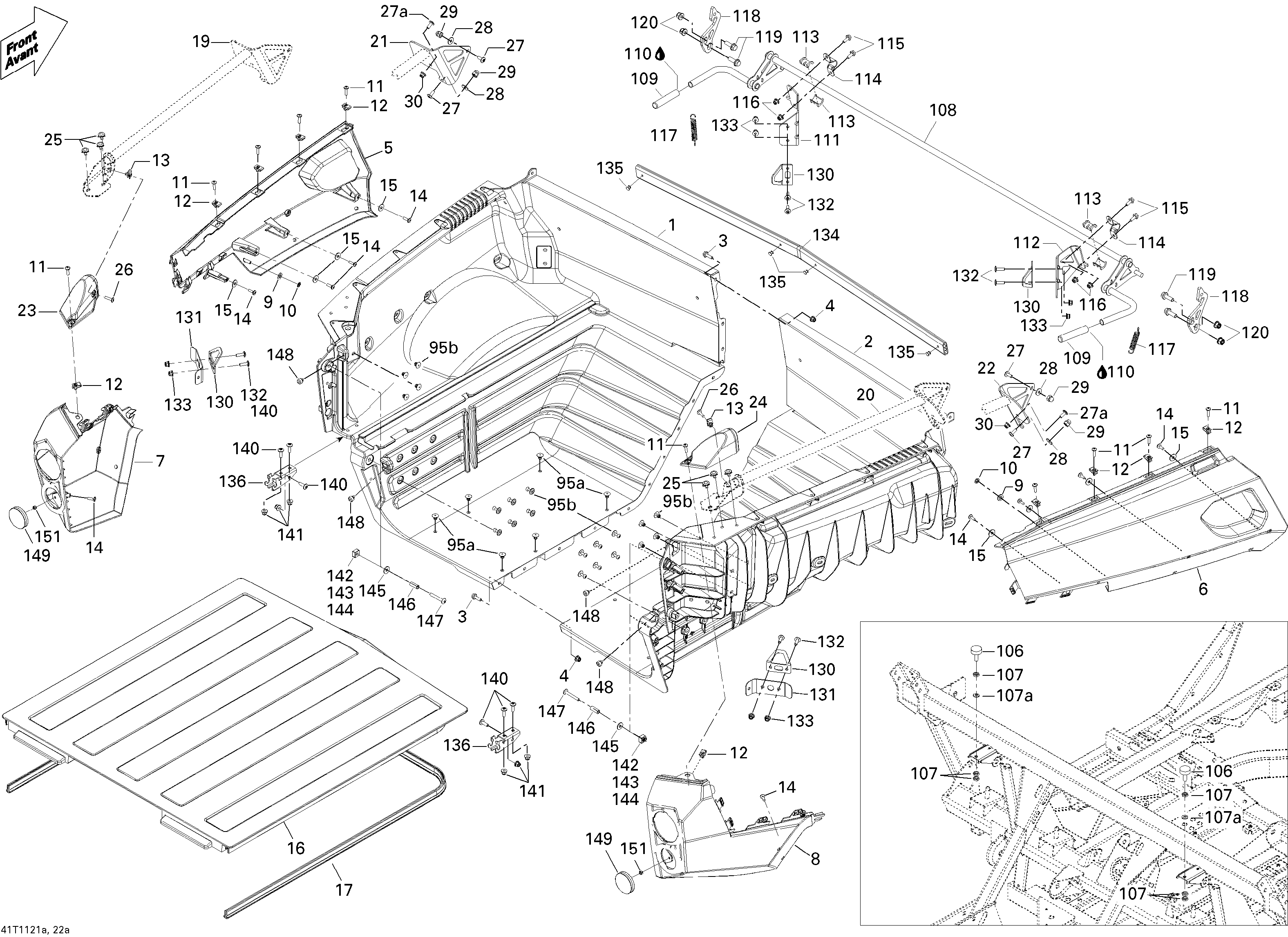

09- Rear Cargo Box 1 для BRP Commander 800 - 2011
-
№АртикулНазвание
-
1715001259 LH BoxLH Box
-
2715001257 RH BoxRH Box
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5708300101 LH Rear Fender, Yellow. STDLH Rear Fender, Yellow. STD
-
5708300101 LH Rear Fender, Yellow. XT YellowLH Rear Fender, Yellow. XT Yellow
-
5708300437 LH Rear Fender, Camo. XT CamoLH Rear Fender, Camo. XT Camo
-
6708300102 RH Rear Fender, Yellow. STDRH Rear Fender, Yellow. STD
-
6708300102 RH Rear Fender, Yellow. XT YellowRH Rear Fender, Yellow. XT Yellow
-
6708300438 RH Rear Fender, Camo. XT CamoRH Rear Fender, Camo. XT Camo
-
7708300103 LH Rear FaciaLH Rear Facia
-
8708300104 RH Rear FaciaRH Rear Facia
-
9234081100 Flat Washer 8 mmFlat Washer 8 mm
-
10732610072 Push NutPush Nut
-
11250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
12250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
13250000079 Panel Nut M5 X 0.8. XTPanel Nut M5 X 0.8. XT
-
14250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
15234062670 Flat WasherFlat Washer
-
16708300131 Separator Pannel Ass'y. Includes 16 to 17Separator Pannel Ass'y. Includes 16 to 17
-
17293250240 Neoprene sealNeoprene seal
-
19708300231 LH Welded Rail. XTLH Welded Rail. XT
-
20708300232 RH Welded Rail. XTRH Welded Rail. XT
-
21708300333 LH Painted Rail Cap. Except XTLH Painted Rail Cap. Except XT
-
22708300334 RH Painted Rail Cap. Except XTRH Painted Rail Cap. Except XT
-
23708300233 LH Rail Cover. XTLH Rail Cover. XT
-
24708300234 RH Rail Cover. XTRH Rail Cover. XT
-
25293150190 Pop Rivet 3/16. XTPop Rivet 3/16. XT
-
26250000130 Torx Screw M5 X 20. XTTorx Screw M5 X 20. XT
-
27250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
27a250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
28234062670 Flat WasherFlat Washer
-
29232361493 Domed Nut M6Domed Nut M6
-
30233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
95a293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
95b293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
106293720091 Frame Rubber BumperFrame Rubber Bumper
-
107232180600 Nut M8Nut M8
-
107a234181401 Lock Washer 8 mmLock Washer 8 mm
-
108708300491 Latch Lever Ass'yLatch Lever Ass'y
-
109708300358 Cap Latch LeverCap Latch Lever
-
110293800100 Loctite 406, 7 OzLoctite 406, 7 Oz
-
111708300278 LH Latch Lever SupportLH Latch Lever Support
-
112708300351 RH Latch Lever SupportRH Latch Lever Support
-
113705500033 Half RingHalf Ring
-
114708300392 Clamp ReatinerClamp Reatiner
-
115207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
116233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
117708300454 SpringSpring
-
118708300136 Box RetainerBox Retainer
-
119207583086 Flanged Hex. Screw M8 X 30, Scotch GripFlanged Hex. Screw M8 X 30, Scotch Grip
-
120233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
130708300183 Retaining PlateRetaining Plate
-
131708300206 Retaining Plate SupportRetaining Plate Support
-
132250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
133233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
134708300346 Front SupportFront Support
-
135293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
136708300345 Upper Pivot SupportUpper Pivot Support
-
140250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
141233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
142269500725 Nut Housing Ass'y. Includes 142 to 144Nut Housing Ass'y. Includes 142 to 144
-
143269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
144232561600 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
145234062670 Flat WasherFlat Washer
-
146517304852 SpacerSpacer
-
147250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
148293830005 Rubber Plug, BlackRubber Plug, Black
-
149705002408 Reflector, RedReflector, Red
-
151232551414 Elastic Stop Nut M5Elastic Stop Nut M5
