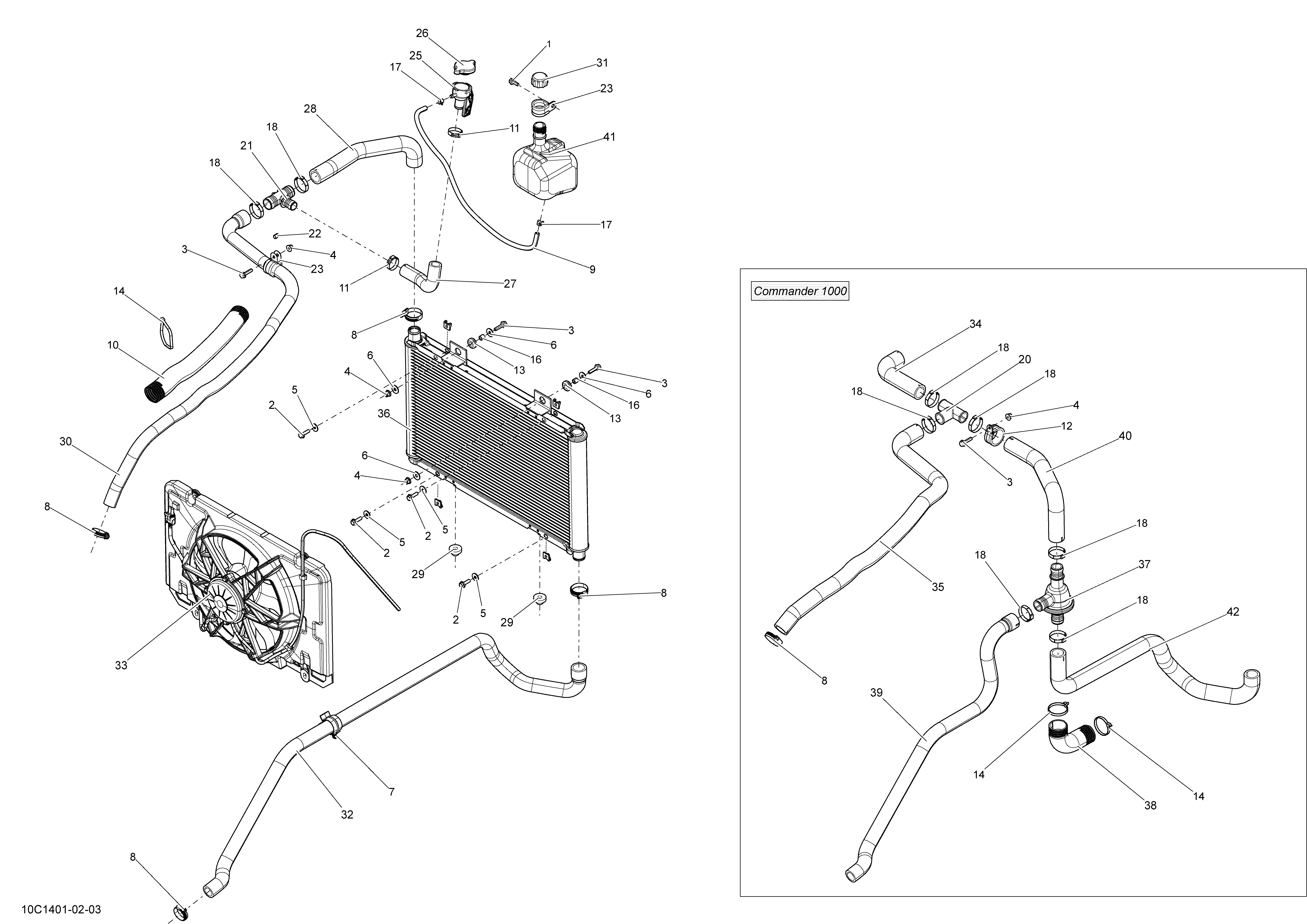

01- Cooling System для BRP Commander 1000, LTD - 2014
-
№АртикулНазвание
-
1207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3207662534 Hex. Flanged ScrewHex. Flanged Screw
-
4233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
5234062410 Flat Washer 6 mmFlat Washer 6 mm
-
6250200082 Flat WasherFlat Washer
-
7275500590 RetainerRetainer
-
8293650098 Norma Gear ClampNorma Gear Clamp
-
9415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
10515176260 Tubing 35mmTubing 35mm
-
11293650099 Crimp ClampCrimp Clamp
-
12293650218 Hose RetainerHose Retainer
-
13293720053 GrommetGrommet
-
14293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
16293900105 BushingBushing
-
17414554800 Spring ClampSpring Clamp
-
18509000162 Gear ClampGear Clamp
-
20509000219 T-FittingT-Fitting
-
21509000372 T-FittingT-Fitting
-
23709200036 Hose AnchorHose Anchor
-
25709200179 Filler NeckFiller Neck
-
26709200207 Pressure CapPressure Cap
-
27709200264 Filler Neck HoseFiller Neck Hose
-
28709200265 Radiator Outlet HoseRadiator Outlet Hose
-
29709200285 GrommetGrommet
-
31709200328 Tank CapTank Cap
-
33709200375 Fan Ass'yFan Ass'y
-
34709200380 Intermediate HoseIntermediate Hose
-
35709200382 Intermediate HoseIntermediate Hose
-
36709200395 RadiatorRadiator
-
37709200406 ThermostatThermostat
-
38515176260 Tubing 35mmTubing 35mm
-
39709200441 Pump HosePump Hose
-
40709200447 HoseHose
-
41709200504 Coolant TankCoolant Tank
-
42709200513 Radiator Inlet HoseRadiator Inlet Hose
