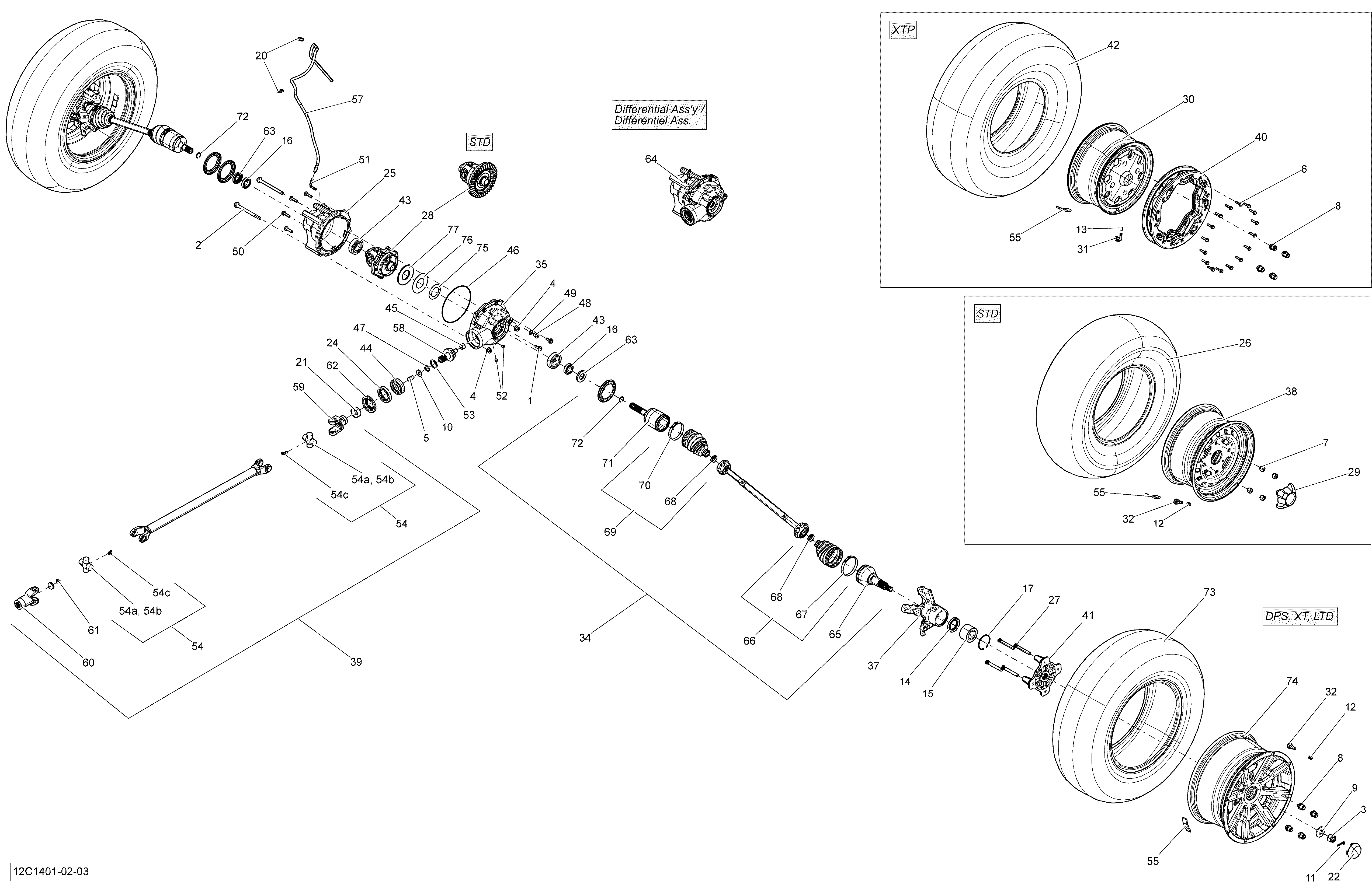

07- Drive System, Front для BRP Commander 1000, LTD - 2014
-
№АртикулНазвание
-
1207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
2230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
3250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
4233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
5250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
-
8250100082 Chrome Wheel Nut M10 X 1.25Chrome Wheel Nut M10 X 1.25
-
9250200049 Spring WasherSpring Washer
-
10250200102 Flat Washer M12Flat Washer M12
-
11250400036 Cotter PinCotter Pin
-
12293000110 Valve CapValve Cap
-
14293250246 O-RingO-Ring
-
15293350040 Cone BearingCone Bearing
-
16293350044 Ball BearingBall Bearing
-
17293370019 CirclipCirclip
-
20293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
21705400036 Wear RingWear Ring
-
22705400520 Wheel CapWheel Cap
-
24705400661 NutNut
-
25705400762 Front CoverFront Cover
-
27705400791 Wheel StudWheel Stud
-
28705400822 DifferentialDifferential
-
32705400193 Rim Valve With CapRim Valve With Cap
-
34705401105 LH Half ShaftLH Half Shaft
-
34705401106 RH Half ShaftRH Half Shaft
-
35705401136 Front Gear CoverFront Gear Cover
-
37705401548 LH Front KnuckleLH Front Knuckle
-
37705401549 RH Front KnuckleRH Front Knuckle
-
39705401239 Axle Drive Ass'yAxle Drive Ass'y
-
41705401314 Wheel HubWheel Hub
-
43705500259 Ball BearingBall Bearing
-
44705500260 Ball BearingBall Bearing
-
45705500261 Needle BearingNeedle Bearing
-
46705500265 SealSeal
-
47705500267 O-RingO-Ring
-
48705500504 Fill Level PlugFill Level Plug
-
49705500506 Copper WasherCopper Washer
-
50705500892 ScrewScrew
-
51705500893 Vent ValveVent Valve
-
52705500894 Drain PlugDrain Plug
-
53705501162 Pinion Gear ShimPinion Gear Shim
-
54703500814 Unit Pack KitUnit Pack Kit
-
54a715900183 U-JointU-Joint
-
54b715900117 Snap RingSnap Ring
-
54c703500813 Grease FittingGrease Fitting
-
55705501385 1/2 OZ Weight1/2 OZ Weight
-
57415080200 Hose, PolyurethaneHose, Polyurethane
-
58705501588 10 Teeth Pinion10 Teeth Pinion
-
60715900231 Yoke Joint. Cover 715900483Yoke Joint. Cover 715900483
-
59715900232 Yoke JointYoke Joint
-
61703500815 Grease FittingGrease Fitting
-
62705401481 Oil SealOil Seal
-
63705401486 Oil SealOil Seal
-
64705401488 Front Differential Ass'yFront Differential Ass'y
-
65705401353 CV JointCV Joint
-
66705401354 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
67715900260 Oetiker Clamp, LargeOetiker Clamp, Large
-
68715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
69705401355 Boot Kit, Differential SideBoot Kit, Differential Side
-
70715900262 Oetiker Clamp, LargeOetiker Clamp, Large
-
71705401357 RH Plunging JointRH Plunging Joint
-
71705401359 LH Plunging JointLH Plunging Joint
-
72705401349 Circlip JointCirclip Joint
-
73705400961 Front Tire. Model- LTD EuropeFront Tire. Model- LTD Europe
-
73705401377 Front Tire. Model- LTD Except EuropeFront Tire. Model- LTD Except Europe
-
74705401380 Front RimFront Rim
-
75703500049 Pinion Shim KitPinion Shim Kit
-
76703500288 Differential Shim Spool KitDifferential Shim Spool Kit
-
77703500050 Differential Shim Spool KitDifferential Shim Spool Kit
