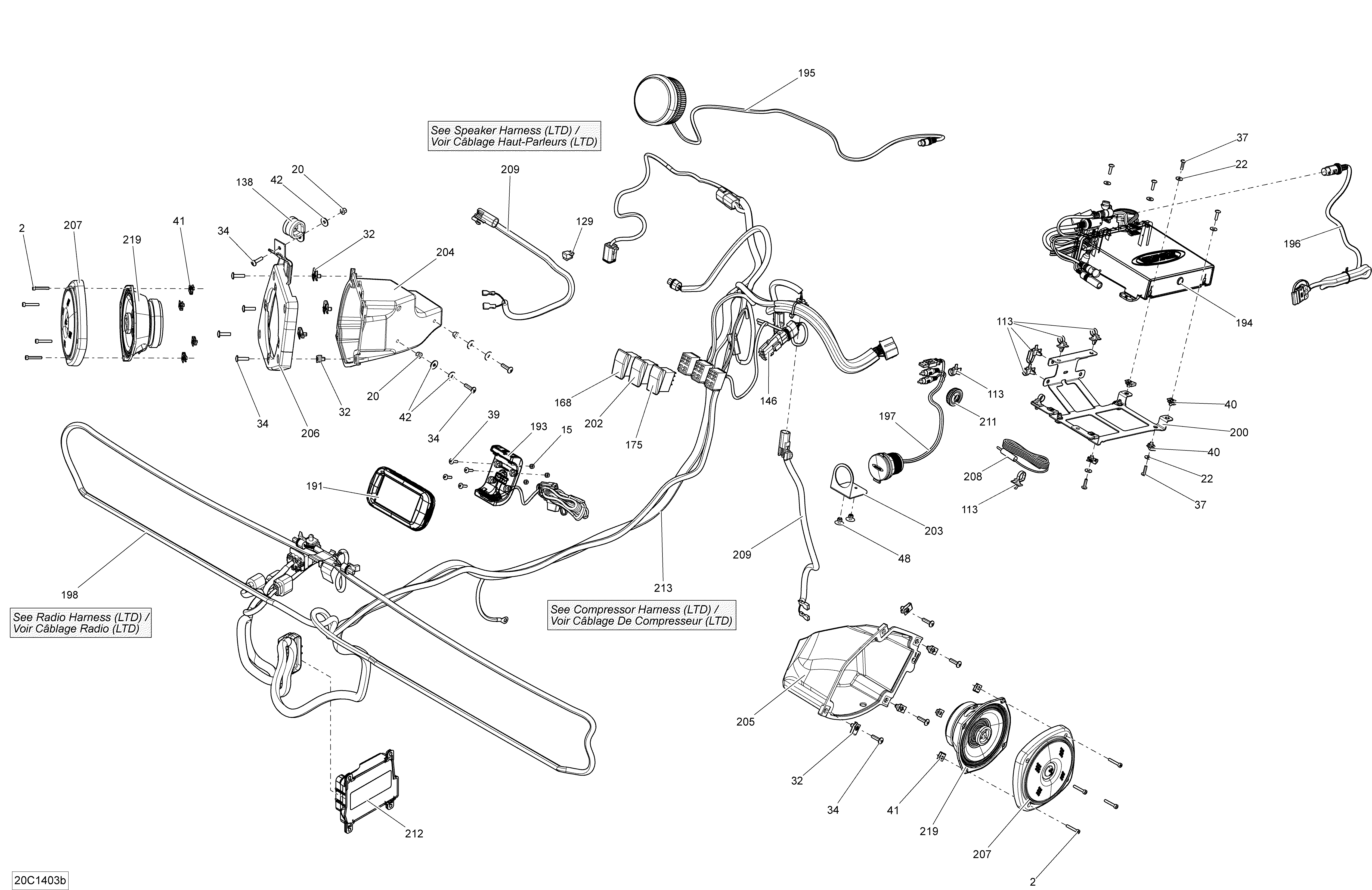

10- Electrical System LTD для BRP Commander 1000, LTD - 2014
-
№АртикулНазвание
-
2205042560 Socket Head Screw M4 X 25Socket Head Screw M4 X 25
-
15232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
20233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
22234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
32250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
34250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
34250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
37250000242 Truss Torx Screw M4 X 16Truss Torx Screw M4 X 16
-
39250000575 Torx-Truss M4 X 16Torx-Truss M4 X 16
-
40250100143 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
41250100149 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
42250200025 Washer M5Washer M5
-
48293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
113293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
113293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
113293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
113293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
113293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
113293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
113293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
113293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
129414227300 ClipClip
-
138709200036 Hose AnchorHose Anchor
-
146710001059 Connector Ass'yConnector Ass'y
-
168710001781 Switch DPSSwitch DPS
-
175710002052 SwitchSwitch
-
191715001361 GPS North AmericaGPS North America
-
191715001361 GPS North AmericaGPS North America
-
191715001406 GPS EuropeGPS Europe
-
193710002545 GPS SupportGPS Support
-
194710002548 AmplifierAmplifier
-
195710002549 Radio InterfaceRadio Interface
-
196710002550 IPOD ExtensionIPOD Extension
-
197710002551 USB ExtensionUSB Extension
-
198710002553 Radio HarnessRadio Harness
-
200710002556 Amplifier SupportAmplifier Support
-
202710002684 Switched AccessorySwitched Accessory
-
203710002731 USB Extension SupportUSB Extension Support
-
204710002786 LH Front Speaker BoxLH Front Speaker Box
-
205710002787 RH Front Speaker BoxRH Front Speaker Box
-
206710002789 Speaker Box PlateSpeaker Box Plate
-
207710002790 Speaker CoverSpeaker Cover
-
208710002810 AntennaAntenna
-
209710002833 Speaker HarnessSpeaker Harness
-
211710002926 Grommet BootGrommet Boot
-
212710002947 Calibrated Compressor ModuleCalibrated Compressor Module
-
213710003005 Compressor HarnessCompressor Harness
-
219710003233 Front SpeakerFront Speaker
