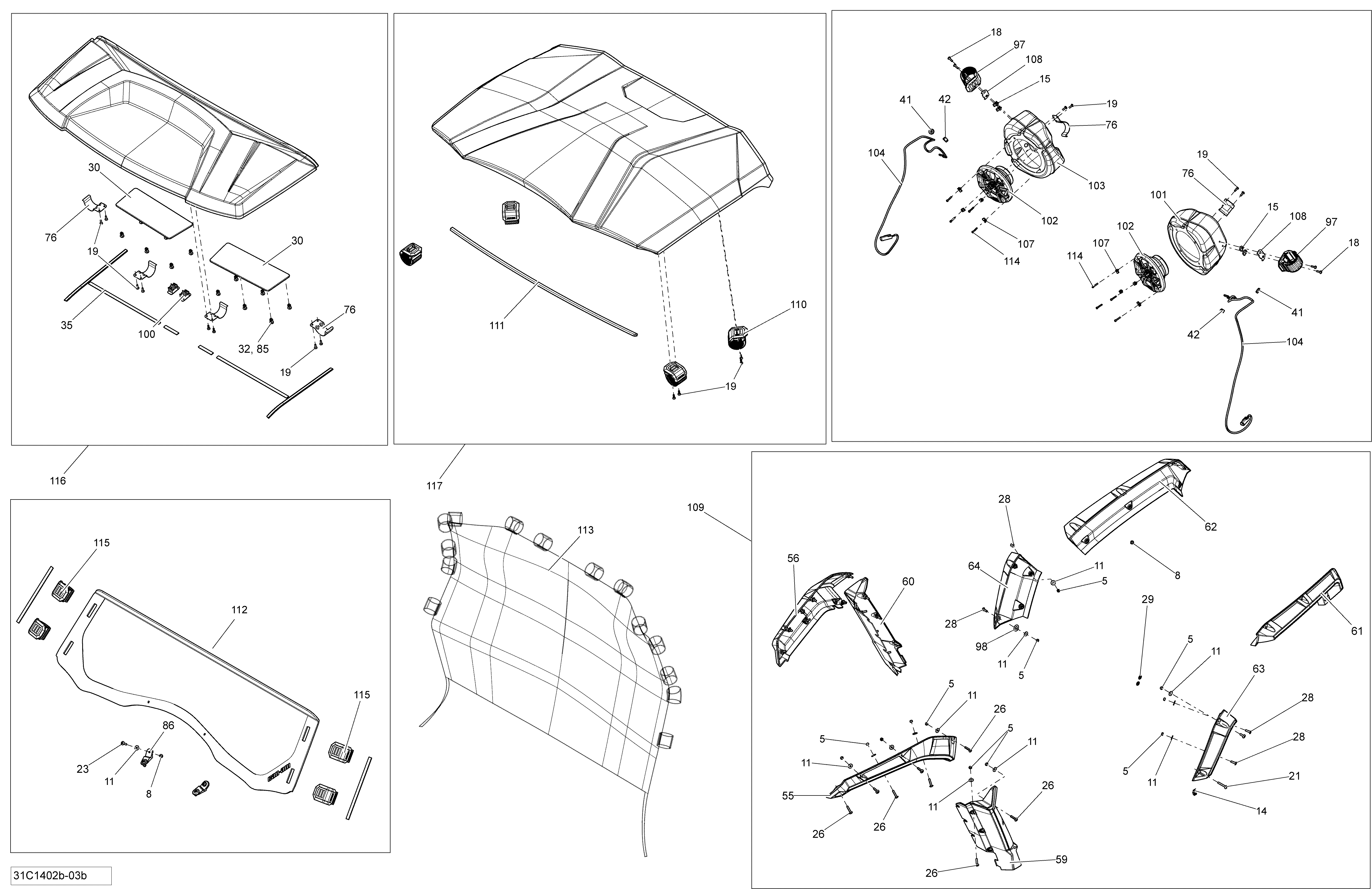

09- Body And Accessories KIT для BRP Commander 1000, LTD - 2014
-
№АртикулНазвание
-
8233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
11234062670 Flat WasherFlat Washer
-
15250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
18250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
19250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
23250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
28250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
30280000496 Visor PocketVisor Pocket
-
32293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
35293250087 Gasket, NeopreneGasket, Neoprene
-
41414036300 GrommetGrommet
-
42414227300 ClipClip
-
76705004430 ''U'' Bracket''U'' Bracket
-
85705005658 Visor Fastener KitVisor Fastener Kit
-
86705005776 Windshield SupportWindshield Support
-
97705007962 Perforated Velcro StrapPerforated Velcro Strap
-
100710001999 Plug CarlingPlug Carling
-
101710002837 LH Speaker Box Ass'yLH Speaker Box Ass'y
-
102710002838 SpeakerSpeaker
-
103710002839 RH Speaker Box Ass'yRH Speaker Box Ass'y
-
104710002857 Speaker HarnessSpeaker Harness
-
107250100143 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
108710002946 M5 Support PlateM5 Support Plate
-
110705005720 Perforated Velcro StrapPerforated Velcro Strap
-
111293200136 Seal, MeterSeal, Meter
-
112705005671 Half Windshield Ass'yHalf Windshield Ass'y
-
113715002003 Rear Net Wind Deflector Ass'yRear Net Wind Deflector Ass'y
-
114250000622 Torx Pan Screw M4 X 20Torx Pan Screw M4 X 20
-
115705007961 Velcro StrapVelcro Strap
-
116715001952 Roof Visor Ass'yRoof Visor Ass'y
-
117715001949 Mid Roof KitMid Roof Kit
