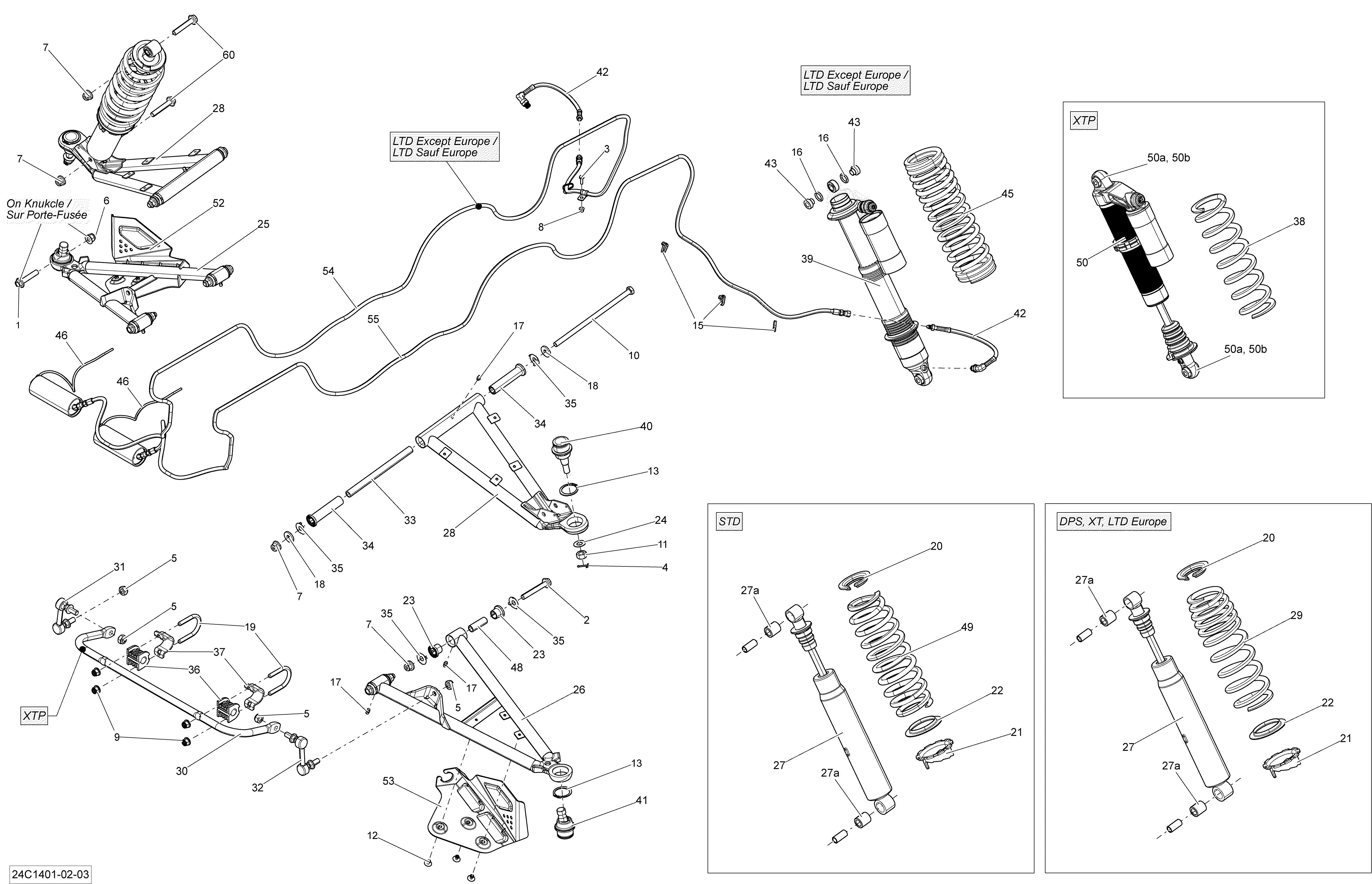

07- Front Suspension для BRP Commander 1000, LTD - 2014
-
№АртикулНазвание
-
1207605044 Hex. Flanged Screw M10 X 50Hex. Flanged Screw M10 X 50
-
2207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
3210251680 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
4211400017 Cotter PinCotter Pin
-
6233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
7233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
8233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
10250000510 Hex. Cap Screw M10 X 225Hex. Cap Screw M10 X 225
-
11250100099 Nut M12Nut M12
-
12293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
13293370035 CirclipCirclip
-
15293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
16715500360 O-Ring BushingO-Ring Bushing
-
17408200700 Grease FittingGrease Fitting
-
18503190439 WasherWasher
-
20706000567 Spring StopperSpring Stopper
-
21706000910 Adjustable RingAdjustable Ring
-
22706000911 Protector RingProtector Ring
-
23703500875 Bushing Kit. Includes 48Bushing Kit. Includes 48
-
24250200086 Flat WasherFlat Washer
-
25706200742 LH Lower Suspension ArmLH Lower Suspension Arm
-
26706200744 RH Lower Suspension ArmRH Lower Suspension Arm
-
27706200782 Front ShockFront Shock
-
27a715900122 BushingBushing
-
28706200796 Suspension Upper ArmSuspension Upper Arm
-
29706201369 Black Front SpringBlack Front Spring
-
33706201061 Inner BushingInner Bushing
-
34706201062 CushionCushion
-
35706201063 Wear PlateWear Plate
-
39706201364 Front ShockFront Shock
-
40706202044 Ball JointBall Joint
-
41706202045 Ball JointBall Joint
-
42706201446 LH Front Hose AssemblyLH Front Hose Assembly
-
43715500361 Interior BushingInterior Bushing
-
45706201473 Black SpringBlack Spring
-
46706001143 Hose, Polyurethane 4 mmHose, Polyurethane 4 mm
-
48703500875 Bushing Kit. Includes 23Bushing Kit. Includes 23
-
52706201669 LH ProtectorLH Protector
-
53706201670 RH ProtectorRH Protector
-
54706201792 LH Front Hose Ass'y. Includes 46LH Front Hose Ass'y. Includes 46
-
55706201793 RH Front Hose Ass'y. Includes 46RH Front Hose Ass'y. Includes 46
-
60207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
