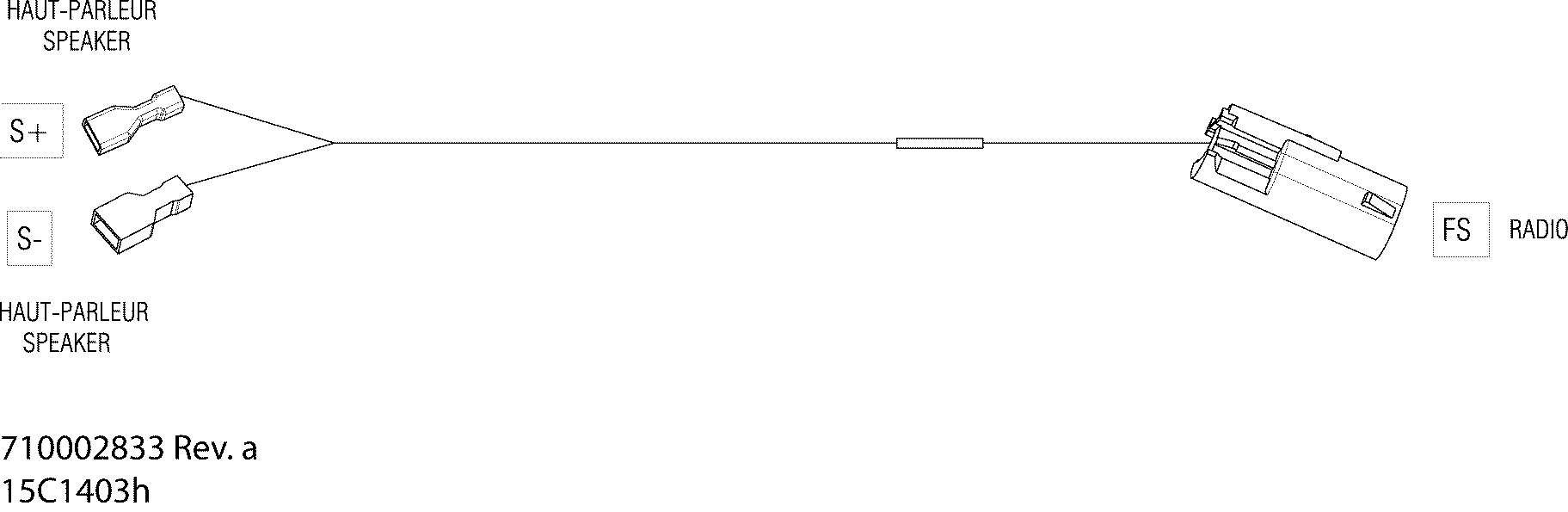

10- Electrical Harness Speaker для BRP Commander 1000, LTD - 2014
-
№АртикулНазвание
-
1710002833 Speaker Harness. LTDSpeaker Harness. LTD
-
FS710001038 ClipClip
-
FS710001151 Housing PTHousing PT
-
FS710001152 LockLock
-
FS710001153 Seal WireSeal Wire
-
FS710001154 Male TerminalMale Terminal
-
S-293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
S-710000114 Female TerminalFemale Terminal
-
S+293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
S+710001235 TerminalTerminal
