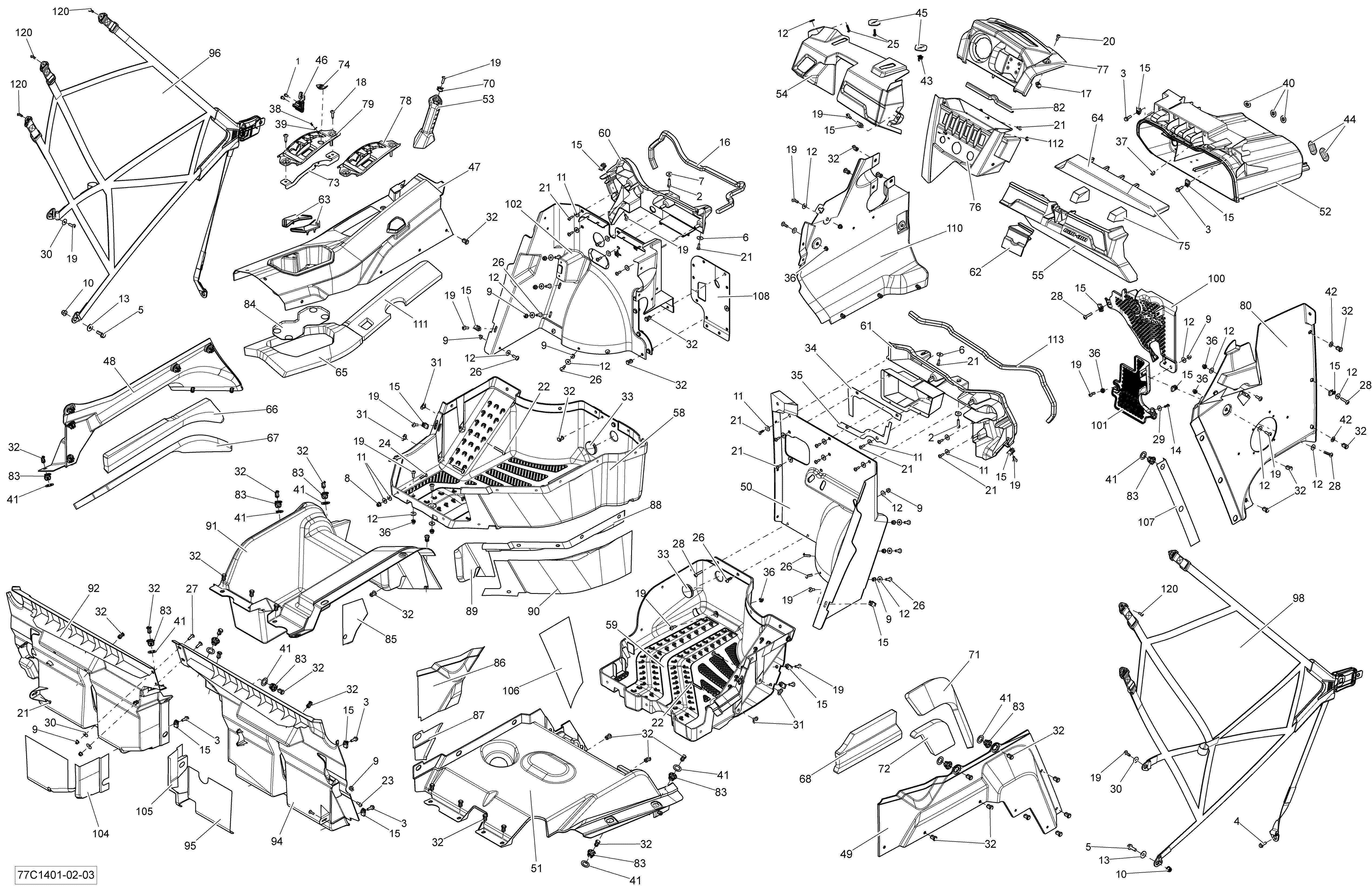

09- Cab Interior для BRP Commander 1000, LTD - 2014
-
№АртикулНазвание
-
1205951046 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
2207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
3207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
6224060201 Flat WasherFlat Washer
-
7224061201 Flat WasherFlat Washer
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11234062410 Flat Washer 6 mmFlat Washer 6 mm
-
12234062670 Flat WasherFlat Washer
-
13234082410 Flat Washer 8 mmFlat Washer 8 mm
-
14241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
15250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
16293200093 Neoprene SealNeoprene Seal
-
17250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
18250000081 Torx Screw M6 X 25Torx Screw M6 X 25
-
19250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
20250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
21250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
22250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
23250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
24250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
25250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
26250000335 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
27250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
28250000398 Stainless Torx Screw,Nylon Patch,M6 X 30Stainless Torx Screw,Nylon Patch,M6 X 30
-
29250200025 Washer M5Washer M5
-
30250200040 Flat WasherFlat Washer
-
31293100003 Nut M6Nut M6
-
32293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
33293250242 Rubber CoverRubber Cover
-
34293250252 Upper SealUpper Seal
-
35293250253 Bottom SealBottom Seal
-
36293450274 InsertInsert
-
37293830005 Rubber BumperRubber Bumper
-
38390401400 RivetRivet
-
39391301000 WasherWasher
-
40414859400 CapCap
-
41503189273 WasherWasher
-
42506151252 WasherWasher
-
43517302785 ClipClip
-
44705003668 Oblong GrommetOblong Grommet
-
45705003841 Support PlateSupport Plate
-
46707000666 LockLock
-
47715001247 Central Console Ass'y. Except EuropeCentral Console Ass'y. Except Europe
-
47715001249 Central Console Ass'y. EuropeCentral Console Ass'y. Europe
-
48707900001 LH Side ConsoleLH Side Console
-
49707900002 RH Side ConsoleRH Side Console
-
50707900004 RH Front FloorRH Front Floor
-
51707900006 RH Under Cover Ass'yRH Under Cover Ass'y
-
52707900046 Storage BinStorage Bin
-
53707900011 Passenger HandlePassenger Handle
-
54715001250 Dashboard Ass'yDashboard Ass'y
-
55715001263 Bin Cover Ass'yBin Cover Ass'y
-
58707900022 LH Lower FloorLH Lower Floor
-
59707900023 RH Lower FloorRH Lower Floor
-
60707900029 LH Floor SupportLH Floor Support
-
61707900030 RH Floor SupportRH Floor Support
-
62707900031 LatchLatch
-
63707900036 Cup RetainerCup Retainer
-
64707900038 Trim Glove BoxTrim Glove Box
-
65707900042 Rear Central Console FoamRear Central Console Foam
-
66707900043 LH Upper Lateral Console FoamLH Upper Lateral Console Foam
-
67707900044 LH Lower Lateral Console FoamLH Lower Lateral Console Foam
-
68707900045 RH Lateral Console FoamRH Lateral Console Foam
-
70707900048 Connector TubeConnector Tube
-
71707900055 RH Lateral Console FoamRH Lateral Console Foam
-
72707900056 RH Lateral Console FoamRH Lateral Console Foam
-
73707900058 Lock SupportLock Support
-
74707900060 CapCap
-
75707900062 Trim Glove BoxTrim Glove Box
-
76707900065 Lower Central Dashboard Ass'y. LTDLower Central Dashboard Ass'y. LTD
-
76715001265 Central Dashboard Ass'y. Except EuropeCentral Dashboard Ass'y. Except Europe
-
76715900108 Central Dashboard Ass'y. EuropeCentral Dashboard Ass'y. Europe
-
77707900066 Gauge SupportGauge Support
-
78707900070 Lever IndicatorLever Indicator
-
79707900071 Lever IndicatorLever Indicator
-
80707900098 RH Fixe Side ConsoleRH Fixe Side Console
-
82271000110 Protection TrimProtection Trim
-
83707900133 InsertInsert
-
84707900145 Heat SheetHeat Sheet
-
85707900146 Heat SheetHeat Sheet
-
86707900147 Heat SheetHeat Sheet
-
87707900148 Heat SheetHeat Sheet
-
88707900149 Heat SheetHeat Sheet
-
89707900150 Heat SheetHeat Sheet
-
90707900151 Heat SheetHeat Sheet
-
91715001982 Plaque Inferieur De Siege Ass. GAPlaque Inferieur De Siege Ass. GA
-
92707900164 LH Rear Deflector. LTD EuropeLH Rear Deflector. LTD Europe
-
92707900165 LH Rear Deflector. LTD Except EuropeLH Rear Deflector. LTD Except Europe
-
94707900166 RH Rear DeflectorRH Rear Deflector
-
95707900167 Heat ShieldHeat Shield
-
96707900171 LH Safety NetLH Safety Net
-
98707900172 RH Safety NetRH Safety Net
-
100707900178 GrillGrill
-
101707900180 GrillGrill
-
102707900181 LH Front FloorLH Front Floor
-
103707900182 Heat ShieldHeat Shield
-
104707900183 Heat ShieldHeat Shield
-
105707900184 Heat ShieldHeat Shield
-
106707900190 Heat SheetHeat Sheet
-
107707900191 Heat SheetHeat Sheet
-
108707900192 DeflectorDeflector
-
110707900193 Front Side Dash PanelFront Side Dash Panel
-
111707900214 Front Central Console FoamFront Central Console Foam
-
112732610072 Push NutPush Nut
-
113293200093 Neoprene SealNeoprene Seal
-
120250000145 Torx Screw M5 X 14Torx Screw M5 X 14
