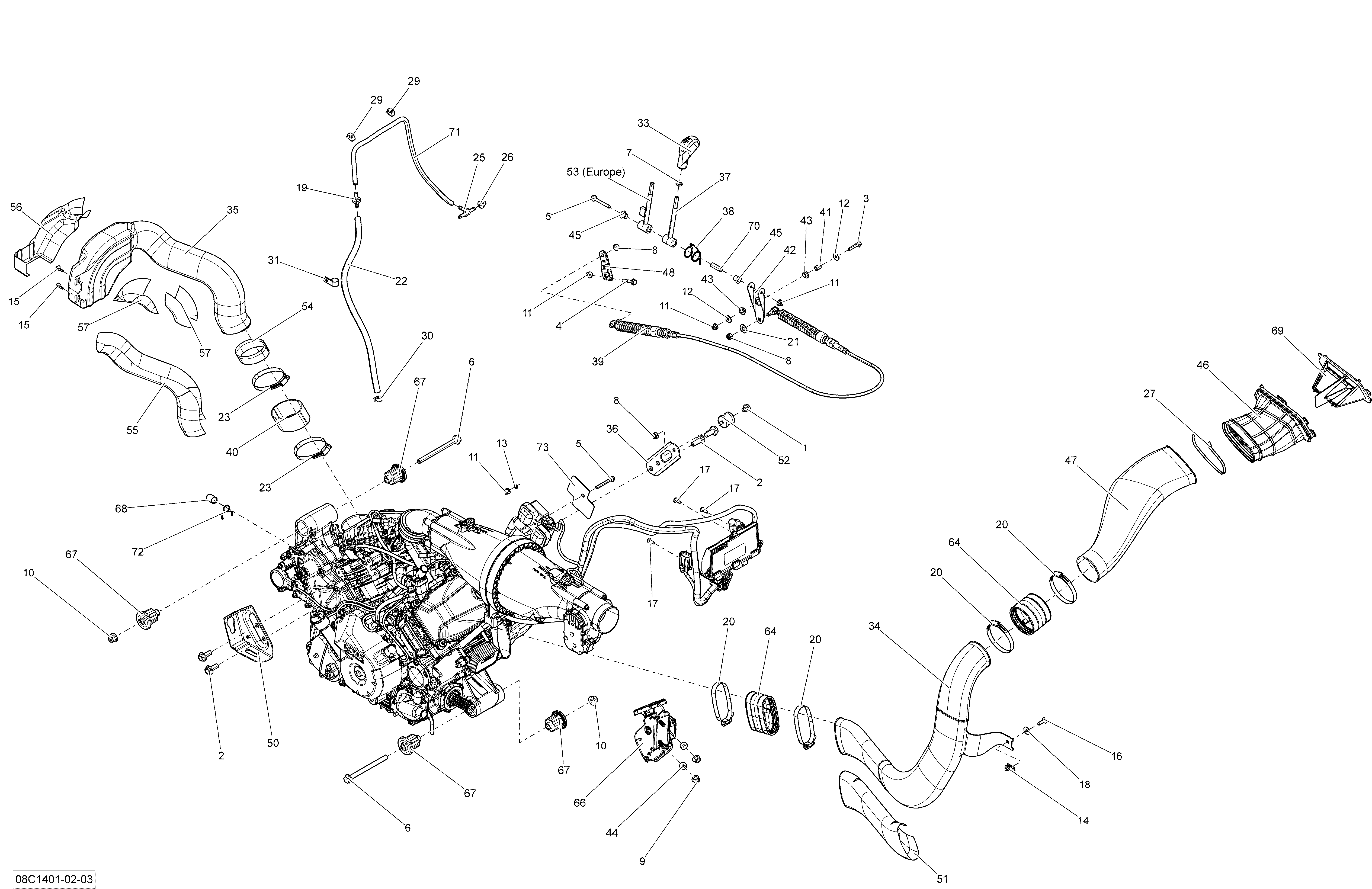

01- Engine для BRP Commander 1000, LTD - 2014
-
№АртикулНазвание
-
1207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
2207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
3207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
4207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
5207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
6230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
7232180491 Hex. Jam Nut M8Hex. Jam Nut M8
-
8232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
9233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
10233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12234062410 Flat Washer 6 mmFlat Washer 6 mm
-
13234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
14250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
15250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
16250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
17250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
18250200082 Flat WasherFlat Washer
-
19275500398 Check ValveCheck Valve
-
20293650091 Norma ClampNorma Clamp
-
21234001410 Flat Washer 10 mmFlat Washer 10 mm
-
22415079800 Hose 1/4''Hose 1/4''
-
23293650118 Norma Gear ClampNorma Gear Clamp
-
25293710059 Y-FittingY-Fitting
-
26293720029 GrommetGrommet
-
27293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
29414227300 ClipClip
-
30414415200 Spring ClampSpring Clamp
-
31518321570 Open ClampOpen Clamp
-
33707000284 Lever HandleLever Handle
-
34707000639 Air InletAir Inlet
-
35707000640 CVT Air OutletCVT Air Outlet
-
36707000707 Upper Engine BracketUpper Engine Bracket
-
37707000711 Upper Lever ArmUpper Lever Arm
-
38707000750 Lever Arm SpringLever Arm Spring
-
39707000775 Shifting CableShifting Cable
-
40707000789 AdaptorAdaptor
-
41707000801 BushingBushing
-
42707000828 Lower Lever ArmLower Lever Arm
-
43707000847 Flanged BushingFlanged Bushing
-
44707000848 BushingBushing
-
45707000869 Flanged BushingFlanged Bushing
-
46707000908 AdaptorAdaptor
-
47707000909 Primary Air IntakePrimary Air Intake
-
48707000911 LeverLever
-
50707000919 Cable SupportCable Support
-
51707000924 Reflective SheetReflective Sheet
-
52707000949 Rubber IsolatorRubber Isolator
-
54707000988 ReflectorReflector
-
55707000989 Reflective SheetReflective Sheet
-
56707000990 Reflective SheetReflective Sheet
-
57707000991 ReflectorReflector
-
64707001043 Flexible AdaptorFlexible Adaptor
-
66707001166 Accelerator PedalAccelerator Pedal
-
67707001169 DamperDamper
-
68707001185 PlugPlug
-
69707001344 CVT FilterCVT Filter
-
70707001376 BushingBushing
-
71415080200 Hose, PolyurethaneHose, Polyurethane
-
72707800506 Retainer ClipRetainer Clip
-
73710000073 Insulator PadInsulator Pad
