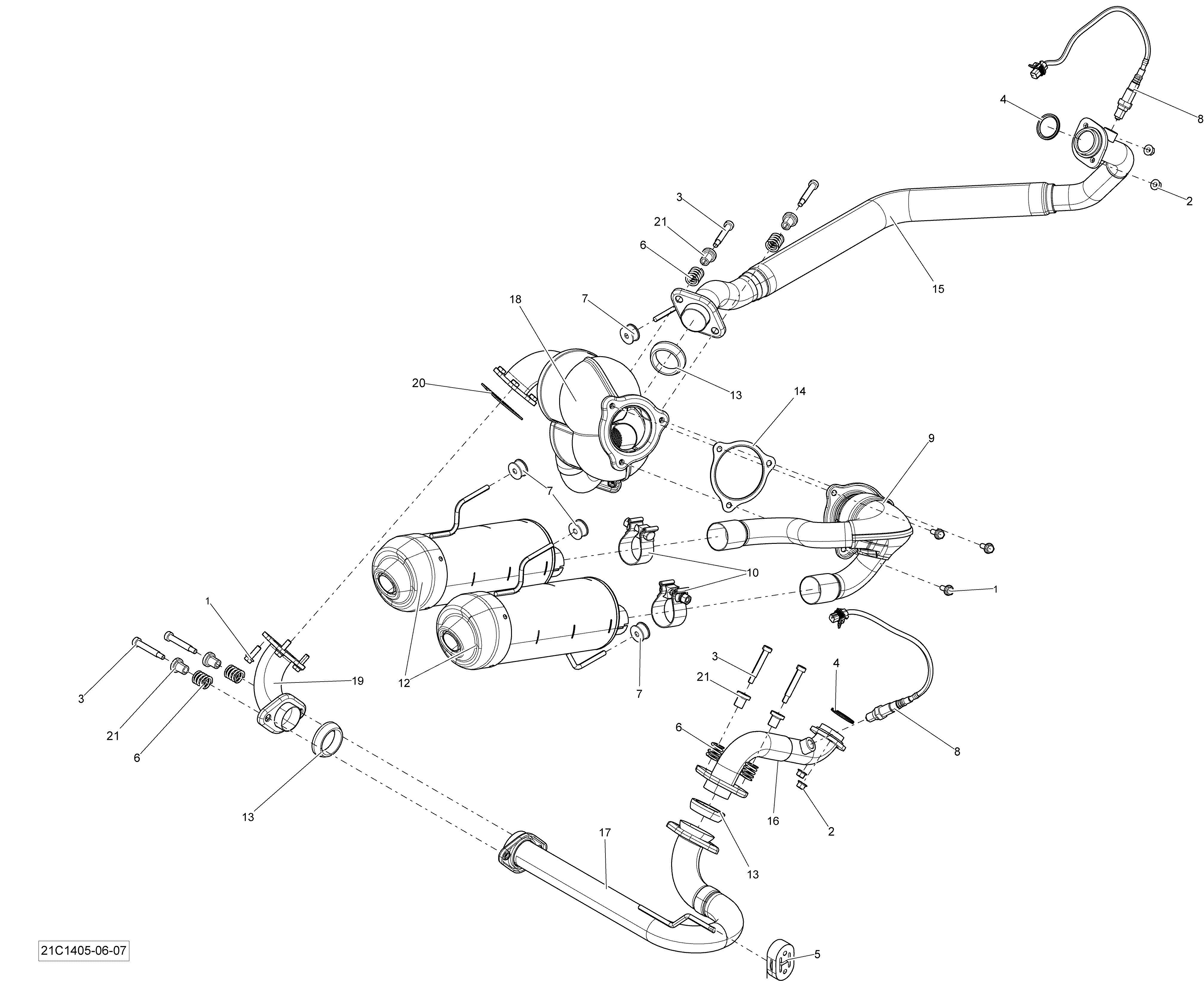

01- Exhaust System для BRP Maverick 1000, XXC - 2014
-
№АртикулНазвание
-
1207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
2233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
3250000658 Shoulder Socket ScrewShoulder Socket Screw
-
4707600317 GasketGasket
-
5707600638 Rubber BumperRubber Bumper
-
6707600682 SpringSpring
-
7707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
8707600872 Oxygen SensorOxygen Sensor
-
9707601278 Head PipeHead Pipe
-
10293650231 Gear ClampGear Clamp
-
12707601038 MufflerMuffler
-
13707601128 Seal JointSeal Joint
-
14707601147 Seal JointSeal Joint
-
15707601210 Head PipeHead Pipe
-
16707601213 Head PipeHead Pipe
-
17707601214 Head PipeHead Pipe
-
18707601220 TuyauTuyau
-
19707601232 TuyauTuyau
-
20707601244 Seal JointSeal Joint
-
21707601254 BushingBushing
