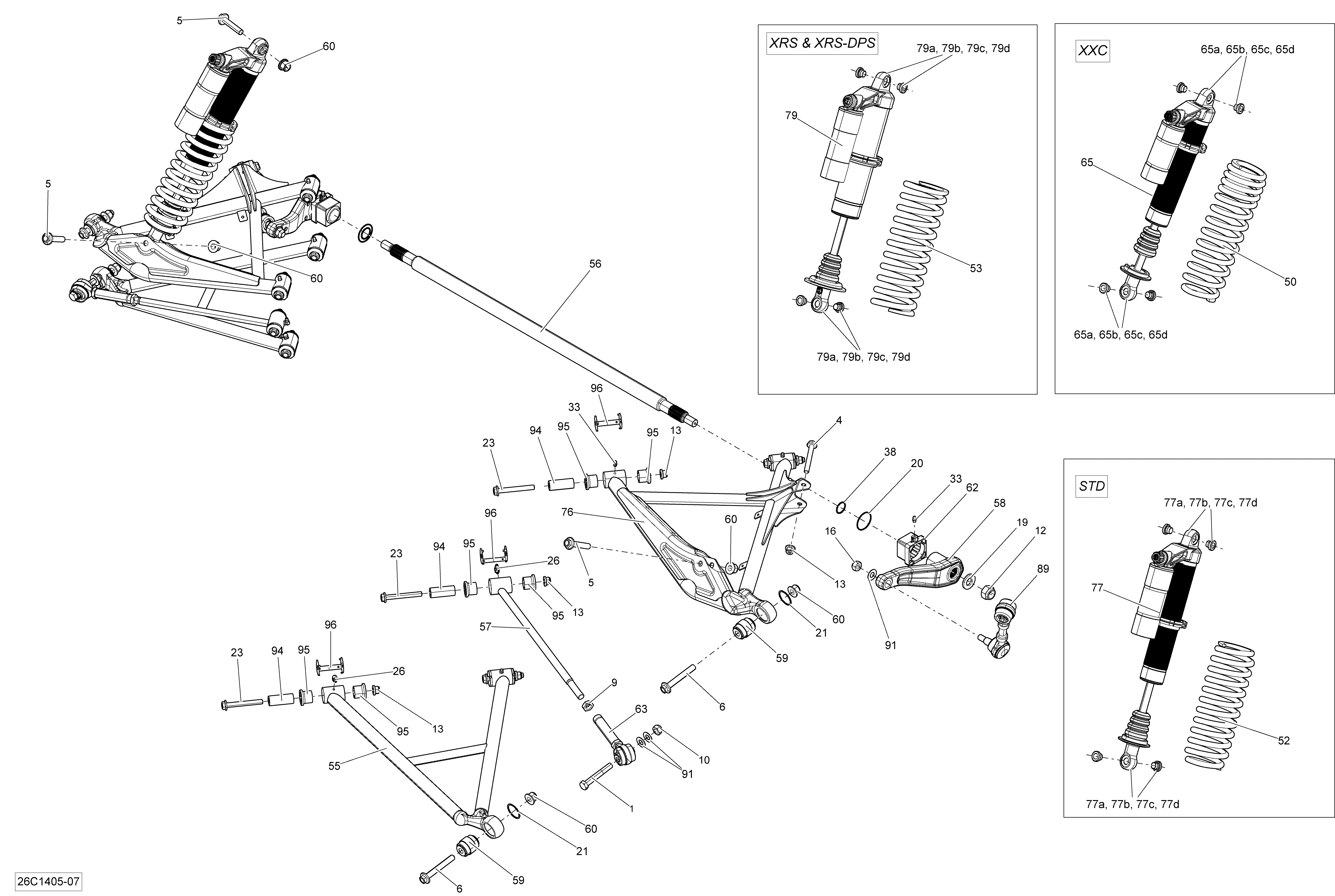

08- Rear Suspension для BRP Maverick 1000, XXC - 2014
-
№АртикулНазвание
-
1207028046 Hex. Screw M12 X 80Hex. Screw M12 X 80
-
4207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
5207626046 Hex. Flanged Screw M12 X 60Hex. Flanged Screw M12 X 60
-
6207628546 Hex. Flanged Screw M12 X 85Hex. Flanged Screw M12 X 85
-
9232175411 LH Hex. Lock Nut M14LH Hex. Lock Nut M14
-
10232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
12232591414 Elastic Stop Nut M18Elastic Stop Nut M18
-
13233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
16250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
19250200045 WasherWasher
-
20293300100 O-RingO-Ring
-
21293370093 Retaining RingRetaining Ring
-
23207608046 Hex Flanged Screw M10 X 80Hex Flanged Screw M10 X 80
-
26293550056 Grease Fitting 90°Grease Fitting 90°
-
33408200700 Grease FittingGrease Fitting
-
38706000251 Retaining RingRetaining Ring
-
50706001462 Yellow Rear Spring. Model-XXC BlackYellow Rear Spring. Model-XXC Black
-
50706001591 Red Rear Spring. Model-XXC WhiteRed Rear Spring. Model-XXC White
-
55706001484 LH Rear Painted Lower ArmLH Rear Painted Lower Arm
-
55706001485 RH Rear Painted Lower ArmRH Rear Painted Lower Arm
-
56706001356 Sway BarSway Bar
-
57706001489 Rear Coupling BarRear Coupling Bar
-
58706001371 Sway Bar LeverSway Bar Lever
-
59706001373 Radial JointRadial Joint
-
60233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
62706001402 Sway Bar HousingSway Bar Housing
-
63706001438 LH Ball JointLH Ball Joint
-
65706001461 Rear Shocks. Model-XXC, Includes 65a To 65dRear Shocks. Model-XXC, Includes 65a To 65d
-
65a715900266 Spherical BearingSpherical Bearing
-
65b715900252 Retaining RingRetaining Ring
-
65c715900267 Interior BushingInterior Bushing
-
65d715900268 O-Ring BushingO-Ring Bushing
-
76706001467 Yellow LH Rear Upper Arm. Model-XXC BlackYellow LH Rear Upper Arm. Model-XXC Black
-
76706001582 Red LH Rear Upper Arm. Model-XXC WhiteRed LH Rear Upper Arm. Model-XXC White
-
76706001468 Yellow RH Rear Upper Arm. Model-XXC BlackYellow RH Rear Upper Arm. Model-XXC Black
-
76706001583 Red RH Rear Upper Arm. Model-XXC WhiteRed RH Rear Upper Arm. Model-XXC White
-
89706001555 LH Ball JointLH Ball Joint
-
89706001556 RH Ball JointRH Ball Joint
-
91250200086 Flat WasherFlat Washer
-
94706201590 SleeveSleeve
-
95706201659 CushionCushion
-
96706201660 Wear PlateWear Plate
