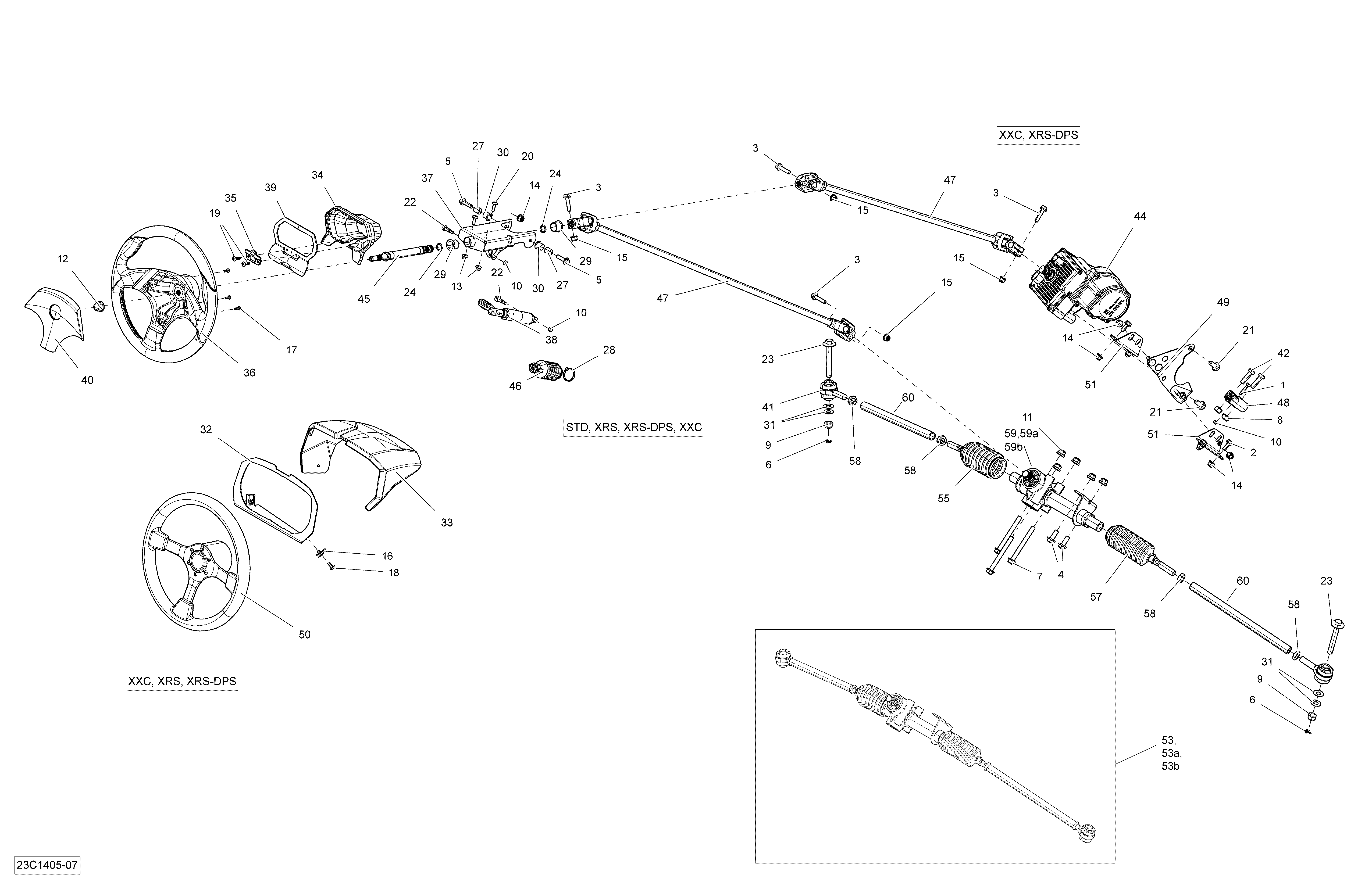

07- Steering для BRP Maverick 1000, XXC - 2014
-
№АртикулНазвание
-
1207063044 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
2207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
3207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
4207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
5207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
6211400017 Cotter PinCotter Pin
-
7230500046 Hex. Screw M10 X 100, Scotch GripHex. Screw M10 X 100, Scotch Grip
-
8232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
9232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
10232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
11233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
12233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
16250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
18250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
20250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
21250000601 Hex. Flanged Screw M10 X 20, Scotch GripHex. Flanged Screw M10 X 20, Scotch Grip
-
22250000649 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
23250000657 Hexagonal Screw M12 X 88Hexagonal Screw M12 X 88
-
24293300144 O-RingO-Ring
-
27293900106 BushingBushing
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
29415108000 CushionCushion
-
30705600799 BushingBushing
-
31250200086 Flat WasherFlat Washer
-
32707900013 Cluster SupportCluster Support
-
33707900124 Upper Cluster CoverUpper Cluster Cover
-
37709400655 Steering SupportSteering Support
-
38709400656 Adjustment CylinderAdjustment Cylinder
-
41709401125 Ball JointBall Joint
-
42207103586 Hex. Screw M10 X 35Hex. Screw M10 X 35
-
44709401406 Power SteeringPower Steering
-
45709401167 Steering ShaftSteering Shaft
-
46709401232 Boot Kit, Tube SideBoot Kit, Tube Side
-
47709401293 Steering Shaft Ass'y. XRS-DPSSteering Shaft Ass'y. XRS-DPS
-
48709401294 CouplingCoupling
-
49709401296 SupportSupport
-
50715001134 Steering Wheel KitSteering Wheel Kit
-
51709401339 SupportSupport
-
53709401354 Control Rack Ass'yControl Rack Ass'y
-
55715900235 Boot Kit, Pinion SideBoot Kit, Pinion Side
-
57715900236 Boot Kit, Tube SideBoot Kit, Tube Side
-
58715900238 Steering Rode NutSteering Rode Nut
-
59709401236 Rack And Pinion SteeringRack And Pinion Steering
-
60709401272 Tie RodTie Rod
