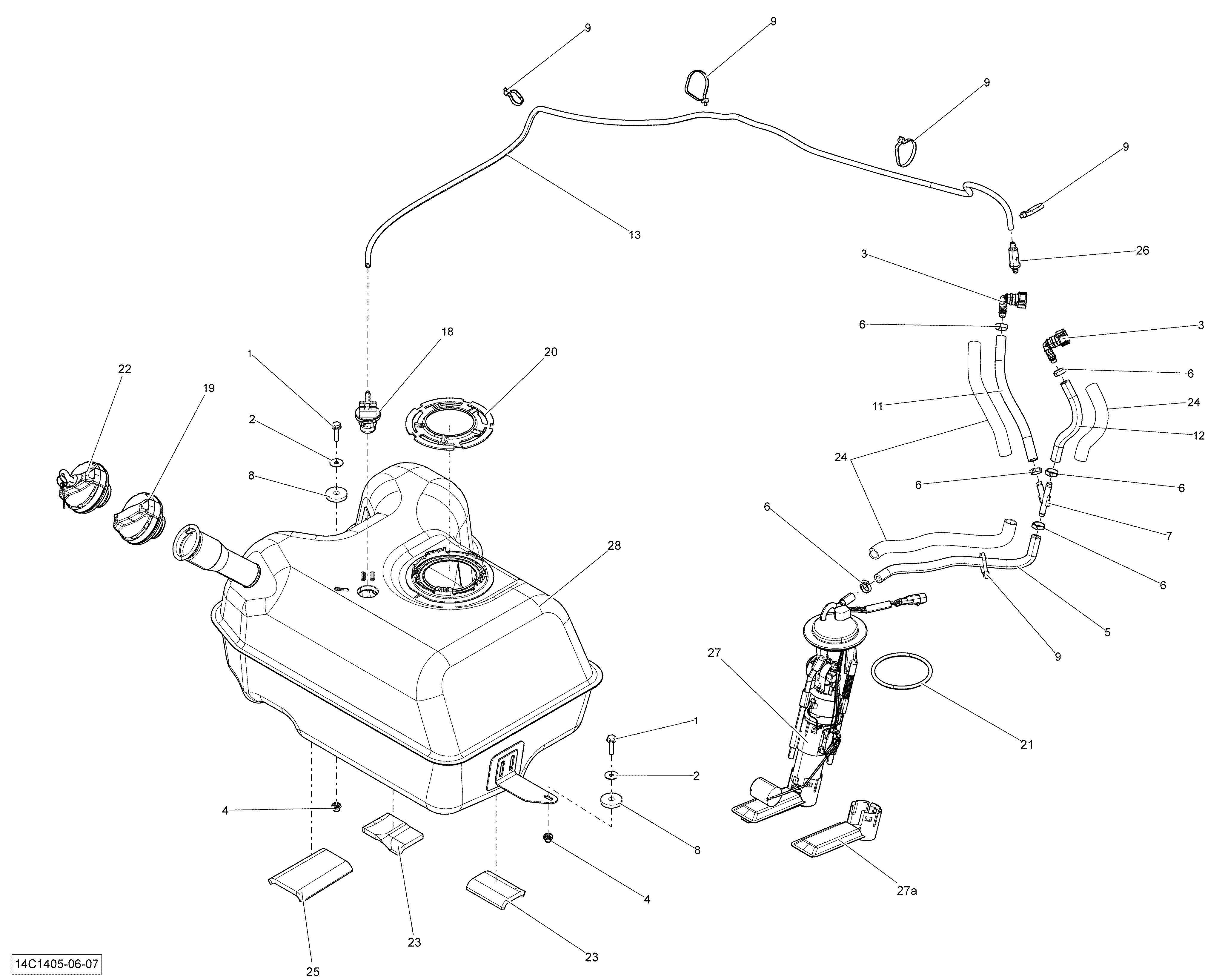

02- Fuel System для BRP Maverick 1000, XXC - 2014
-
№АртикулНазвание
-
1207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
2224060201 Flat WasherFlat Washer
-
3275500700 Quick Attach 90°Quick Attach 90°
-
4293450274 InsertInsert
-
5709000516 Fuel LineFuel Line
-
6293650047 Oetiker ClampOetiker Clamp
-
7293710136 Y-Fitting, 5/16''Y-Fitting, 5/16''
-
8293830037 Rubber WasherRubber Washer
-
9414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
11709000516 Fuel LineFuel Line
-
12709000516 Fuel LineFuel Line
-
13415080200 Hose, PolyurethaneHose, Polyurethane
-
18709000127 Rollover ValveRollover Valve
-
19709000268 CapCap
-
20709000274 RingRing
-
21709000275 O-RingO-Ring
-
22715001124 Fuel Cap Kit. EuropeFuel Cap Kit. Europe
-
23709000288 Neoprene PadNeoprene Pad
-
24415080000 Tubing 16 mmTubing 16 mm
-
25709000289 Neoprene PadNeoprene Pad
-
26709000330 FilterFilter
-
27709000362 Fuel Pump. Includes 27aFuel Pump. Includes 27a
-
27a709000389 Fuel Pre-Filter KitFuel Pre-Filter Kit
-
28709000467 Fuel TankFuel Tank
