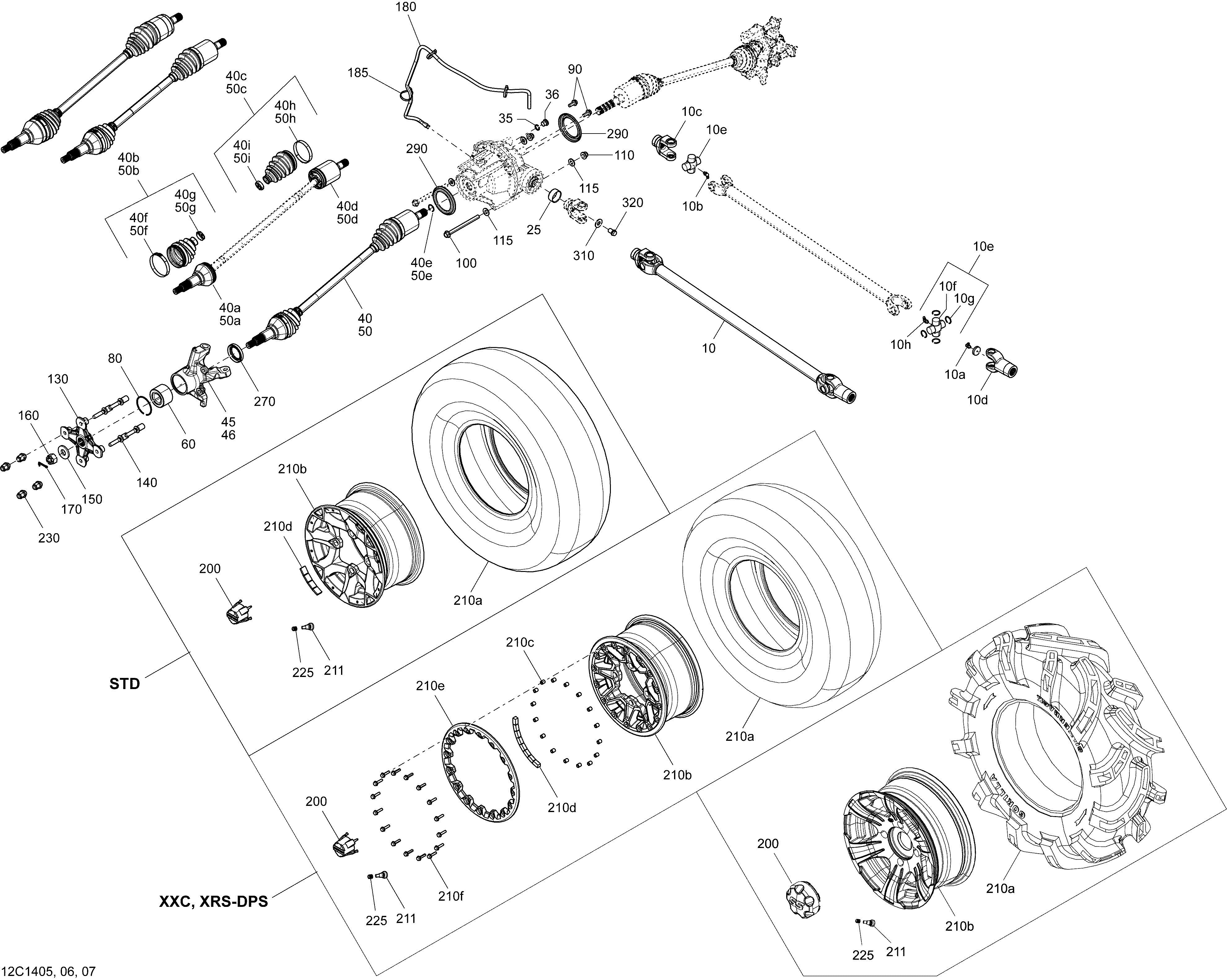

07- Drive System, Front для BRP Maverick 1000, XXC - 2014
-
№АртикулНазвание
-
10705401196 Drive Axle Ass'yDrive Axle Ass'y
-
10a703500815 Grease FittingGrease Fitting
-
10b703500813 Grease FittingGrease Fitting
-
10d715900231 Yoke Joint. Cover 715900483Yoke Joint. Cover 715900483
-
10c715900232 Yoke JointYoke Joint
-
10e703500814 Unit Pack KitUnit Pack Kit
-
10f715900183 U-JointU-Joint
-
10g715900117 Snap RingSnap Ring
-
10h703500813 Grease FittingGrease Fitting
-
25705400036 Wear RingWear Ring
-
35705500504 Fill Level PlugFill Level Plug
-
36705500506 Copper WasherCopper Washer
-
40705401367 RH Half Shaft. Model-XXCRH Half Shaft. Model-XXC
-
40a705401344 CV Joint. Model-XXCCV Joint. Model-XXC
-
40b705401345 Boot Kit, Wheel Side. Model-XXCBoot Kit, Wheel Side. Model-XXC
-
40c705401346 Boot Kit, Differential Side. Model-XXCBoot Kit, Differential Side. Model-XXC
-
40d705401348 RH Plunging Joint. Model-XXCRH Plunging Joint. Model-XXC
-
40e705401349 Circlip Joint. Model-XXCCirclip Joint. Model-XXC
-
40f715900282 Oetiker Clamp, Large. Model-XXCOetiker Clamp, Large. Model-XXC
-
40g715900283 Oetiker Clamp, Small. Model-XXCOetiker Clamp, Small. Model-XXC
-
40h715900284 Oetiker Clamp, Large. Model-XXCOetiker Clamp, Large. Model-XXC
-
40i715900261 Oetiker Clamp, Small. Model-XXCOetiker Clamp, Small. Model-XXC
-
45705401548 LH Front KnuckleLH Front Knuckle
-
46705401549 RH Front KnuckleRH Front Knuckle
-
50705401368 LH Half Shaft. Model-XXCLH Half Shaft. Model-XXC
-
50a705401344 CV Joint. Model-XXCCV Joint. Model-XXC
-
50b705401345 Boot Kit, Wheel Side. Model-XXCBoot Kit, Wheel Side. Model-XXC
-
50c705401346 Boot Kit, Differential Side. Model-XXCBoot Kit, Differential Side. Model-XXC
-
50d705401350 LH Plunging Joint. Model-XXCLH Plunging Joint. Model-XXC
-
50e705401349 Circlip Joint. Model-XXCCirclip Joint. Model-XXC
-
50f715900282 Oetiker Clamp, Large. Model-XXCOetiker Clamp, Large. Model-XXC
-
50g715900283 Oetiker Clamp, Small. Model-XXCOetiker Clamp, Small. Model-XXC
-
50h715900284 Oetiker Clamp, Large. Model-XXCOetiker Clamp, Large. Model-XXC
-
50i715900261 Oetiker Clamp, Small. Model-XXCOetiker Clamp, Small. Model-XXC
-
60293350040 Cone BearingCone Bearing
-
80293370019 CirclipCirclip
-
90207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
100230603046 Flanged Hex. Screw, M10 X 130Flanged Hex. Screw, M10 X 130
-
110233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
115234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
130705501900 Wheel HubWheel Hub
-
140250300051 Wheel StudWheel Stud
-
150250200049 Spring WasherSpring Washer
-
160250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
170250400036 Cotter PinCotter Pin
-
180415080200 Hose, PolyurethaneHose, Polyurethane
-
185414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
200705400928 Wheel CapWheel Cap
-
210a705401385 Front Tire Maxxis 27X9X12. Model-XXC Black, Except EURFront Tire Maxxis 27X9X12. Model-XXC Black, Except EUR
-
210a705401385 Front Tire Maxxis 27X9X12. Model-XXC White, Except EURFront Tire Maxxis 27X9X12. Model-XXC White, Except EUR
-
210a705401386 Front Tire. Model-XXC White EURFront Tire. Model-XXC White EUR
-
210b705401155 Front Rim. Model-XXC Black, Except EURFront Rim. Model-XXC Black, Except EUR
-
210b705401155 Front Rim. Model-XXC White, Except EURFront Rim. Model-XXC White, Except EUR
-
210b705401155 Front Rim. Model-XXC White EURFront Rim. Model-XXC White EUR
-
210c293450317 Insert. Model-XXC Black, Except EURInsert. Model-XXC Black, Except EUR
-
210c293450317 Insert. Model-XXC White, Except EURInsert. Model-XXC White, Except EUR
-
210c293450317 Insert. Model-XXC White EURInsert. Model-XXC White EUR
-
210e705401329 Yellow Reinforcement Disc. Model-XXC Black, Except EURYellow Reinforcement Disc. Model-XXC Black, Except EUR
-
210e705401445 Red Reinforcement Disc. Model-XXC White, Except EURRed Reinforcement Disc. Model-XXC White, Except EUR
-
210e705401445 Red Reinforcement Disc. Model-XXC White EURRed Reinforcement Disc. Model-XXC White EUR
-
210f250000435 Hex. Flanged Screw M6 X 25. Model-XXC Black, Except EURHex. Flanged Screw M6 X 25. Model-XXC Black, Except EUR
-
210f250000435 Hex. Flanged Screw M6 X 25. Model-XXC White, Except EURHex. Flanged Screw M6 X 25. Model-XXC White, Except EUR
-
210f250000435 Hex. Flanged Screw M6 X 25. Model-XXC White EURHex. Flanged Screw M6 X 25. Model-XXC White EUR
-
211705400193 Rim Valve With CapRim Valve With Cap
-
225293000110 Valve CapValve Cap
-
230250100100 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
270293250246 O-RingO-Ring
-
290705400780 Wear SleeveWear Sleeve
-
310250200102 Flat Washer M12Flat Washer M12
-
320250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
