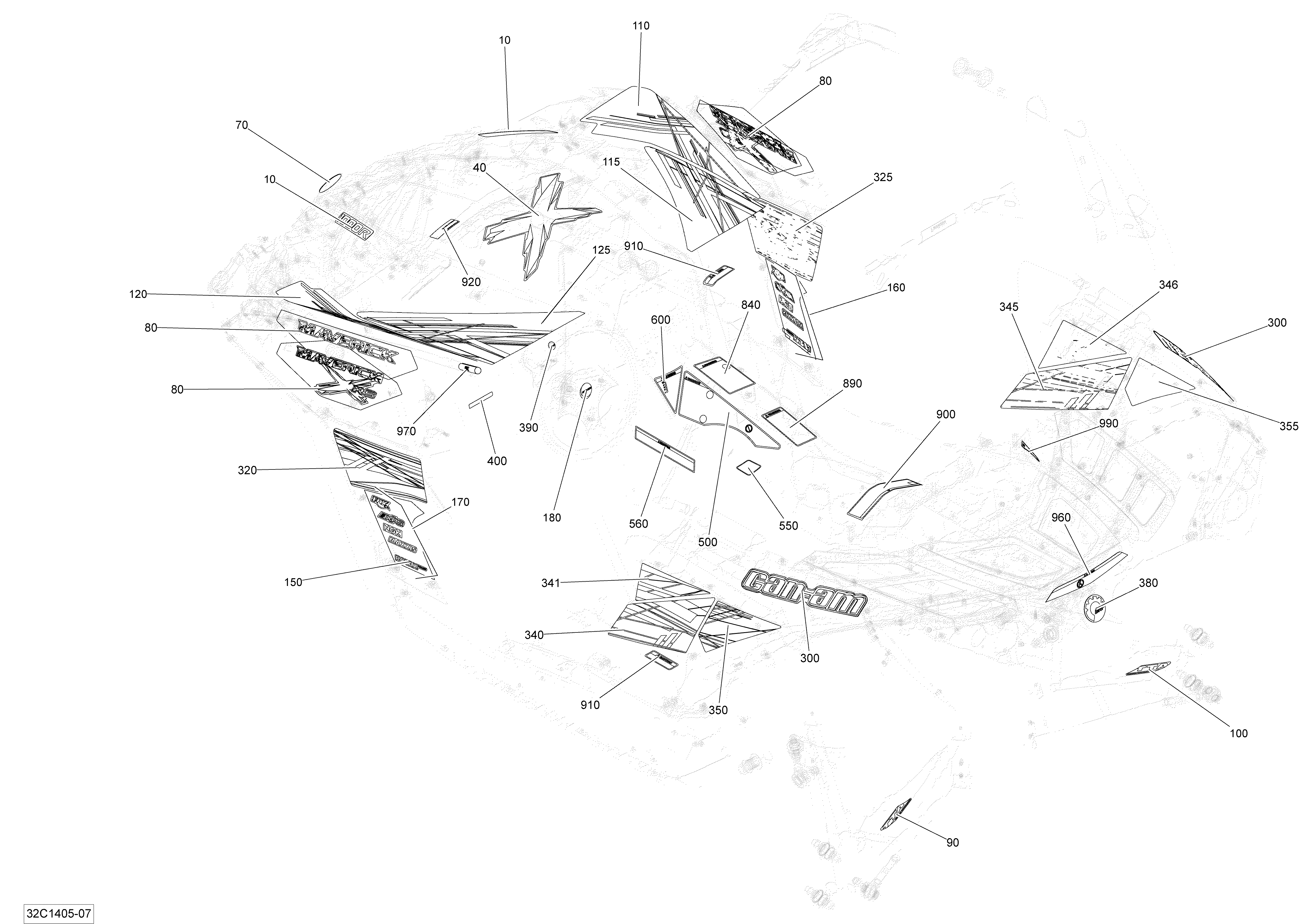

09- Decals для BRP Maverick 1000, XXC - 2014
-
№АртикулНазвание
-
10704903755 Hood Decal, 1000R. Black ModelHood Decal, 1000R. Black Model
-
10704903756 Hood Decal, 1000R. White ModelHood Decal, 1000R. White Model
-
40704903428 Decal X. Black ModelDecal X. Black Model
-
40704903758 Decal X. White ModelDecal X. White Model
-
70219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
80704903574 Side Decal. XXC WhiteSide Decal. XXC White
-
80704903802 Side Decal. XXC BlackSide Decal. XXC Black
-
90704903781 Decal TTADecal TTA
-
100704903782 Decal TTADecal TTA
-
110704903779 Hood DecalHood Decal
-
115704903883 Hood DecalHood Decal
-
120704903780 Hood DecalHood Decal
-
125704903884 Hood DecalHood Decal
-
160704903768 Sponsor Decal. Black ModelSponsor Decal. Black Model
-
160704903770 Sponsor Decal. White ModelSponsor Decal. White Model
-
170704903769 Sponsor Decal. Black ModelSponsor Decal. Black Model
-
170704903771 Sponsor Decal. White ModelSponsor Decal. White Model
-
180704902065 Logo Can-Am, 35 mmLogo Can-Am, 35 mm
-
300704903887 CAN-AM Decal. Black ModelCAN-AM Decal. Black Model
-
300704903887 CAN-AM Decal. White ModelCAN-AM Decal. White Model
-
320704903783 Lateral LabelLateral Label
-
325704903784 Lateral LabelLateral Label
-
340704903789 Lateral LabelLateral Label
-
341704903790 Lateral LabelLateral Label
-
345704903791 Lateral LabelLateral Label
-
346704903792 Lateral LabelLateral Label
-
350704903885 Lateral LabelLateral Label
-
355704903886 Lateral LabelLateral Label
-
380219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
390219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
400704901558 Decal, Dynamic Power SteeringDecal, Dynamic Power Steering
-
500704903671 Warning Decal, Death And Injuries. Except EuropeWarning Decal, Death And Injuries. Except Europe
-
500704903672 Warning Decal, Death And Injuries. EuropeWarning Decal, Death And Injuries. Europe
-
550704902407 Decal, Public Roads UseDecal, Public Roads Use
-
560704903810 Warning Label, Tire PressureWarning Label, Tire Pressure
-
600704903692 Warning Label ''Speed Selector''Warning Label ''Speed Selector''
-
840704903676 Warning Label ''Passenger''Warning Label ''Passenger''
-
890704902491 Warning Decal, Road Usage. EuropeWarning Decal, Road Usage. Europe
-
900704903808 Int'l Label Multi LanguageInt'l Label Multi Language
-
910704902434 Caution Decal, Maximum LoadCaution Decal, Maximum Load
-
920707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
960704903471 Warning Decal, Luggage RackWarning Decal, Luggage Rack
-
970704903434 Notice Decal, SteeringNotice Decal, Steering
-
990704903601 Decal, FUEL-OCTANEDecal, FUEL-OCTANE
