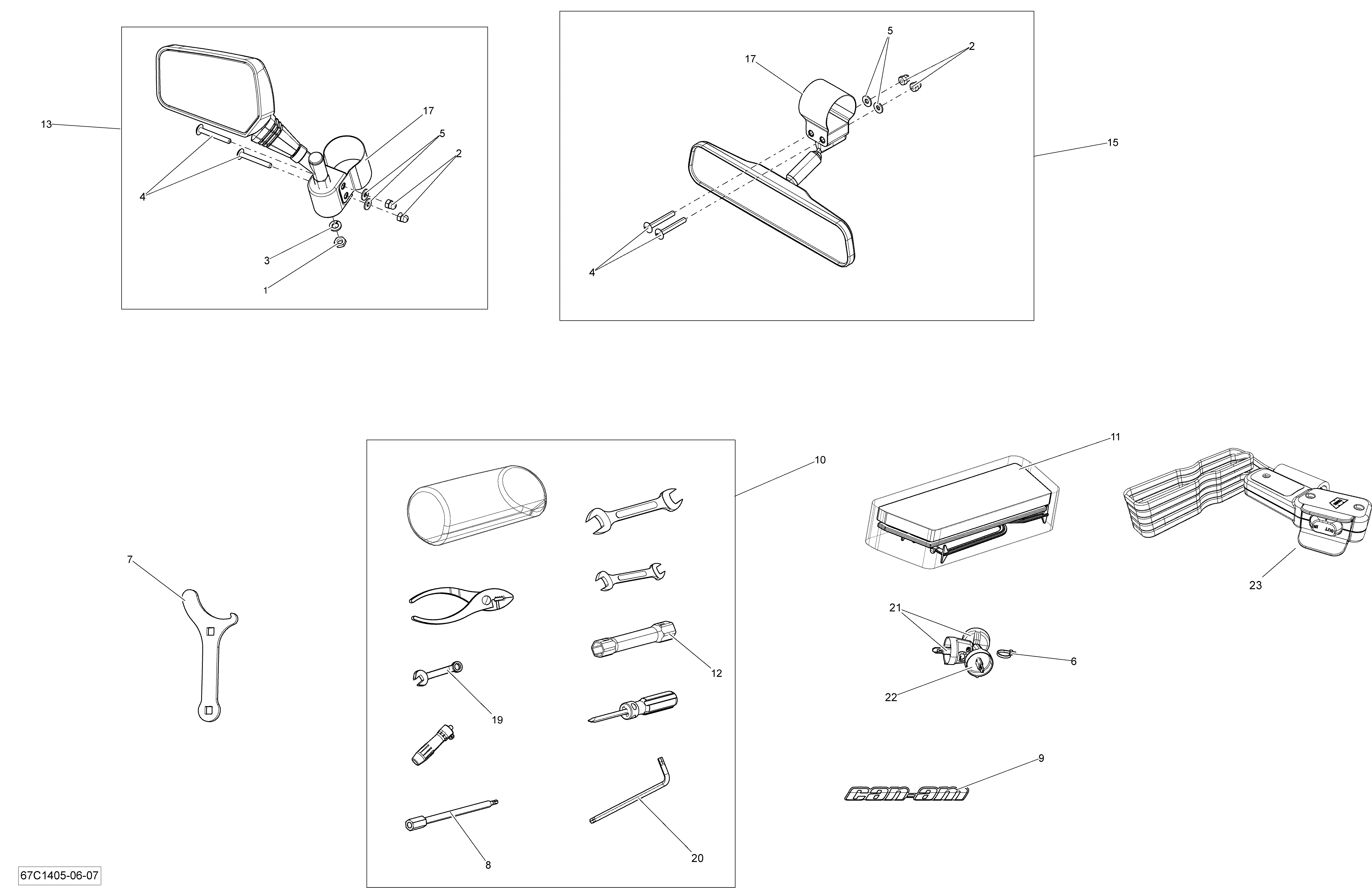

09- Mirrors And Tools для BRP Maverick 1000, XXC - 2014
-
№АртикулНазвание
-
1232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
2232361493 Domed Nut M6Domed Nut M6
-
3234181401 Lock Washer 8 mmLock Washer 8 mm
-
4250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
5250200039 Flat WasherFlat Washer
-
6293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
7529000057 Adjustment WrenchAdjustment Wrench
-
8529000072 Puller/Locking ToolPuller/Locking Tool
-
9704902319 Cage DecalCage Decal
-
10704700161 Tool KitTool Kit
-
11707800573 Filter KitFilter Kit
-
12529014900 Socket Wrench 10/13 mmSocket Wrench 10/13 mm
-
13708200182 Left Mirror KitLeft Mirror Kit
-
15715001191 Central Mirror KitCentral Mirror Kit
-
17708200185 Mirror ClampMirror Clamp
-
19708200338 Wrench 8 mmWrench 8 mm
-
20708200340 Torx Key T30Torx Key T30
-
21710000817 Black-Electronic KeyBlack-Electronic Key
-
22710002183 Grey-Electronic KeyGrey-Electronic Key
