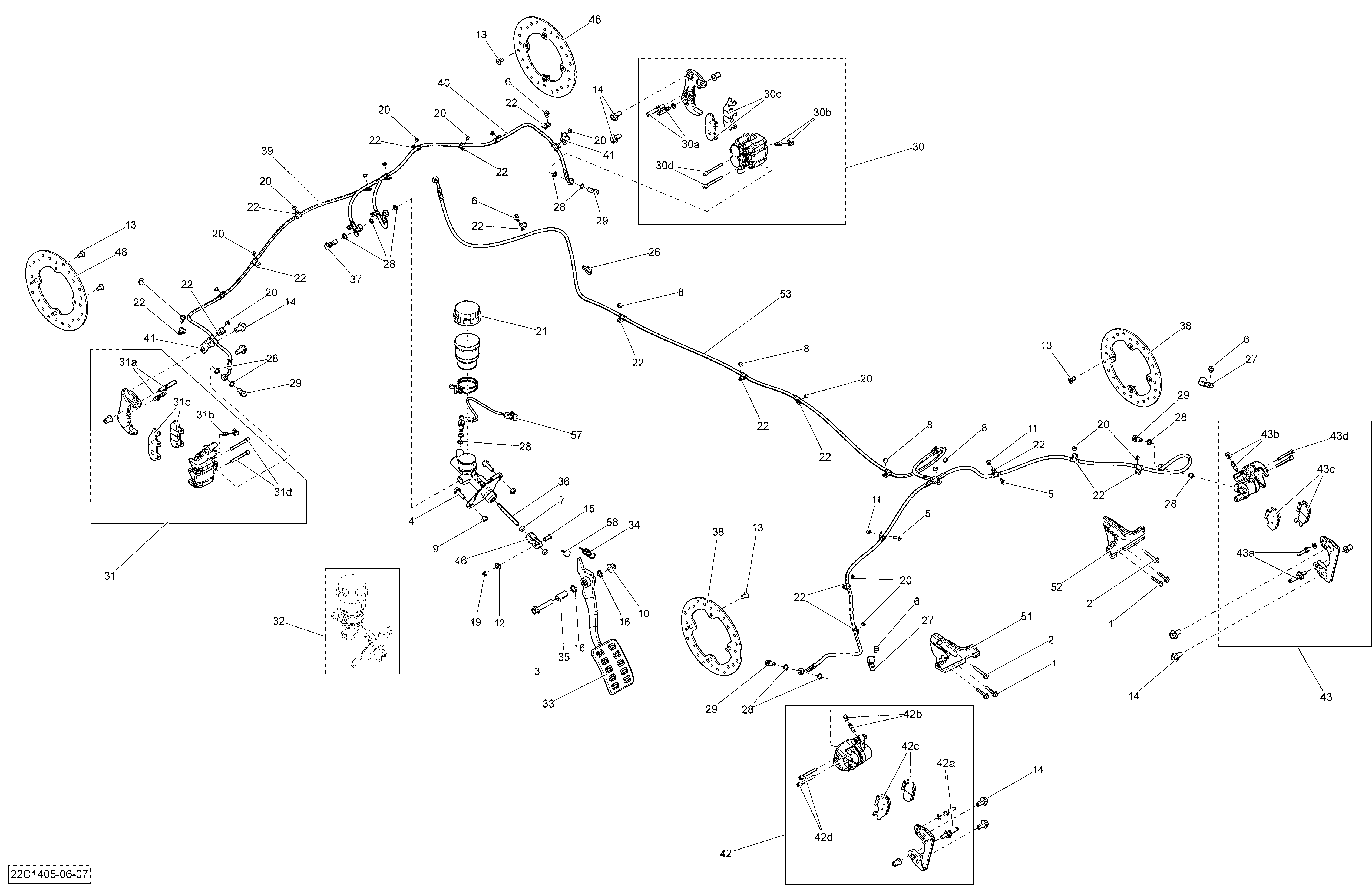

06- Brakes для BRP Maverick 1000, XXC - 2014
-
№АртикулНазвание
-
1207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
2207564044 Hex. Flanged Screw M6 X 40, Scotch GripHex. Flanged Screw M6 X 40, Scotch Grip
-
3207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
4207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
5210251680 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
6210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
7232081414 Hex. Nut M8Hex. Nut M8
-
8232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
9232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
10233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
11233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
12234081430 Flat Washer M8Flat Washer M8
-
13235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
14250000601 Hex. Flanged Screw M10 X 20, Scotch GripHex. Flanged Screw M10 X 20, Scotch Grip
-
15250400058 PinPin
-
16293300144 O-RingO-Ring
-
19371800700 Cotter PinCotter Pin
-
20390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
21715500332 Diaphragm Cap KitDiaphragm Cap Kit
-
22715900250 Hose ClipHose Clip
-
26414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
27518321570 Open ClampOpen Clamp
-
28705600310 Copper WasherCopper Washer
-
29705600609 Banjo BoltBanjo Bolt
-
30705600678 RH Caliper. Includes 30a To 30dRH Caliper. Includes 30a To 30d
-
30a715500333 Spring Boot KitSpring Boot Kit
-
30b705600080 Bleeding ScrewBleeding Screw
-
30c715500336 Brake Pad KitBrake Pad Kit
-
30d715500337 Pin SetPin Set
-
31705600679 LH Caliper. Includes 31a To 31dLH Caliper. Includes 31a To 31d
-
31a715500333 Spring Boot KitSpring Boot Kit
-
31b705600080 Bleeding ScrewBleeding Screw
-
31c715500335 Brake Pad KitBrake Pad Kit
-
31d715500337 Pin SetPin Set
-
32705600681 Master Cylinder Ass'yMaster Cylinder Ass'y
-
33705600724 Brake PedalBrake Pedal
-
34705600792 Brake Pedal SpringBrake Pedal Spring
-
35705600815 Inner SpacerInner Spacer
-
36705600833 Master Cylinder RodMaster Cylinder Rod
-
37705600958 Banjo BoltBanjo Bolt
-
38705600999 Disc BrakeDisc Brake
-
39705601219 LH Front Flexible Hose Ass'yLH Front Flexible Hose Ass'y
-
40705601220 RH Front Flexible Hose Ass'yRH Front Flexible Hose Ass'y
-
41705601088 BracketBracket
-
42705601089 LH Caliper Ass'y. Includes 42a To 42dLH Caliper Ass'y. Includes 42a To 42d
-
42a705601146 Boot And Spring KitBoot And Spring Kit
-
42b705600080 Bleeding ScrewBleeding Screw
-
42c705600398 LH Brake Pad KitLH Brake Pad Kit
-
42d705600081 Pin SetPin Set
-
43705601090 RH Caliper Ass'y. Includes 43a To 43dRH Caliper Ass'y. Includes 43a To 43d
-
43a705601146 Boot And Spring KitBoot And Spring Kit
-
43b705600080 Bleeding ScrewBleeding Screw
-
43c705601147 RH Brake Pad KitRH Brake Pad Kit
-
43d705600081 Pin SetPin Set
-
46705601142 YokeYoke
-
48705601178 Dics BrakeDics Brake
-
51705601197 LH DeflecttorLH Deflecttor
-
52705601198 RH DeflecttorRH Deflecttor
-
53705601145 Rear Flexible HoseRear Flexible Hose
-
57705601250 Brake SwitchBrake Switch
-
58708000759 Rubber StopperRubber Stopper
