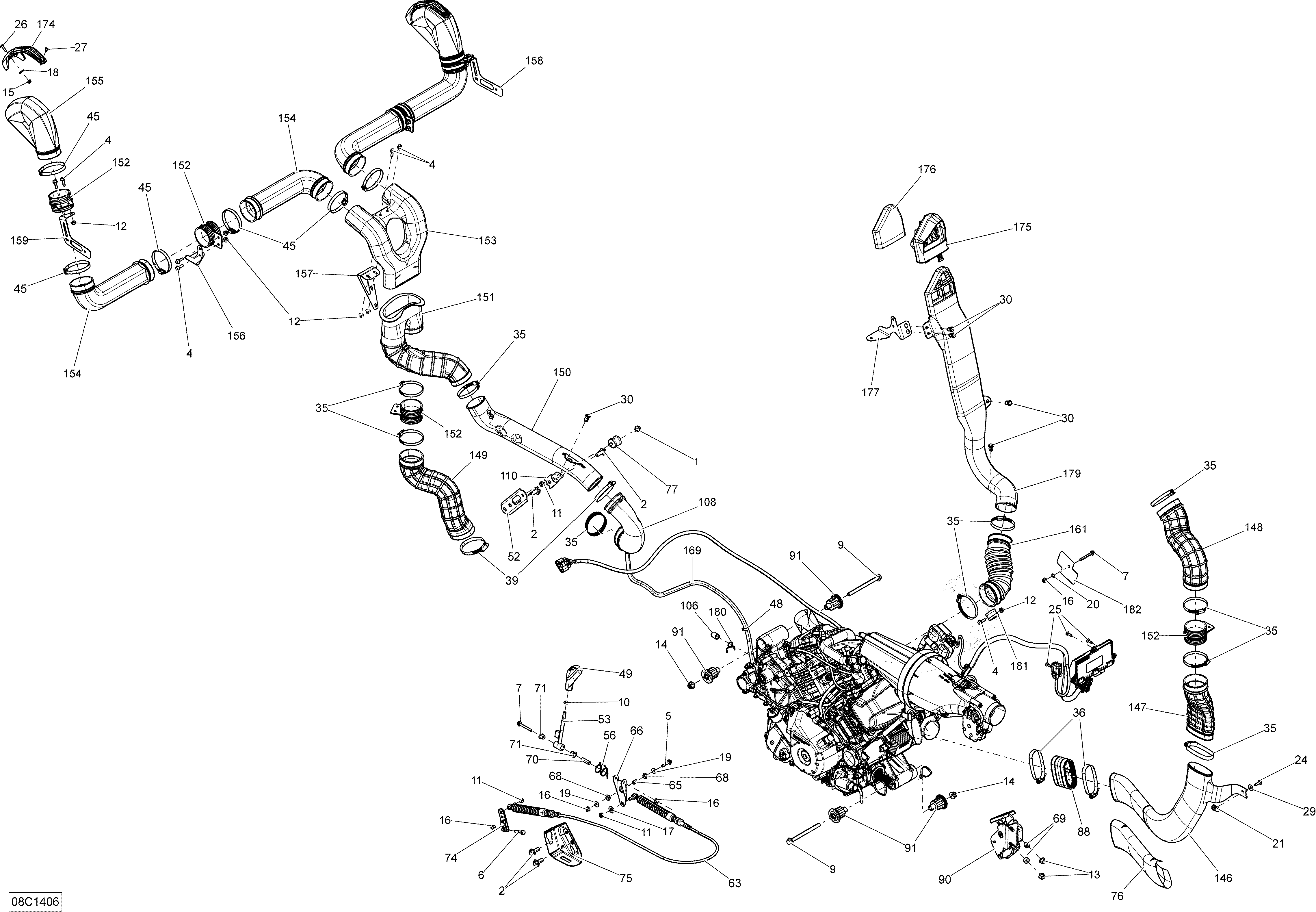

01- Engine _08C1406 для BRP Maverick 1000_XMR - 2014
-
№АртикулНазвание
-
1207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
2207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
2207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
4207662084 Hex. Flanged Screw M6 X 20. XMRHex. Flanged Screw M6 X 20. XMR
-
5207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
6207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
7207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
7207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
9230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
10232180491 Hex. Jam Nut M8Hex. Jam Nut M8
-
11232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
11232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
12233261494 Hex. Elastic Flanged Nut M6. XMRHex. Elastic Flanged Nut M6. XMR
-
13233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
14233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
15233251494 Elastic Flanged Nut M5. XMRElastic Flanged Nut M5. XMR
-
16233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17234001410 Flat Washer 10 mmFlat Washer 10 mm
-
18234052600 Flat Washer 5 mm, Stainless. XMRFlat Washer 5 mm, Stainless. XMR
-
19234062410 Flat Washer 6 mmFlat Washer 6 mm
-
20234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
21250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
24250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
25250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
26250000465 Torx Screw M5 X 20. XMRTorx Screw M5 X 20. XMR
-
27250000577 Torx Screw K40 X 12. XMRTorx Screw K40 X 12. XMR
-
29250200082 Flat WasherFlat Washer
-
30293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
30293150089 Tuflok Plastic Rivet. XMRTuflok Plastic Rivet. XMR
-
30293150089 Tuflok Plastic Rivet. MAVERICKTuflok Plastic Rivet. MAVERICK
-
35293650091 Norma ClampNorma Clamp
-
35293650091 Norma ClampNorma Clamp
-
35293650091 Norma Clamp. XMRNorma Clamp. XMR
-
35293650091 Norma ClampNorma Clamp
-
35293650091 Norma Clamp. XMRNorma Clamp. XMR
-
39293650118 Norma Gear Clamp. XMRNorma Gear Clamp. XMR
-
39293650118 Norma Gear ClampNorma Gear Clamp
-
45293750065 Tie Rap 367mm. XMRTie Rap 367mm. XMR
-
48414415200 Spring ClampSpring Clamp
-
49707000284 Lever HandleLever Handle
-
52707000707 Upper Engine BracketUpper Engine Bracket
-
53707000711 Upper Lever Arm. Except EURUpper Lever Arm. Except EUR
-
53707000978 Upper Lever Arm. EURUpper Lever Arm. EUR
-
56707000750 Lever Arm SpringLever Arm Spring
-
63707000775 Shifting Cable. MAVERICKShifting Cable. MAVERICK
-
65707000801 BushingBushing
-
66707000828 Lower Lever ArmLower Lever Arm
-
68707000847 Flanged BushingFlanged Bushing
-
69707000848 BushingBushing
-
70707001376 BushingBushing
-
71707000869 Flanged BushingFlanged Bushing
-
74707000911 LeverLever
-
75707000919 Cable SupportCable Support
-
76707000924 Reflective Sheet. MAVERICKReflective Sheet. MAVERICK
-
77707000949 Rubber IsolatorRubber Isolator
-
88707001467 Flexible AdaptorFlexible Adaptor
-
90707001166 Accelerator PedalAccelerator Pedal
-
91707001169 DamperDamper
-
106707001185 PlugPlug
-
108707001229 Front AdaptorFront Adaptor
-
110707001231 Front SupportFront Support
-
146707001361 Air Inlet. MAVERICK XMRAir Inlet. MAVERICK XMR
-
147707001377 Air Inlet. XMRAir Inlet. XMR
-
148707001378 Air Inlet. XMRAir Inlet. XMR
-
149707001380 CVT Outlet. XMRCVT Outlet. XMR
-
150707001381 Front CVT Outlet. XMRFront CVT Outlet. XMR
-
151707001382 Front CVT Outlet. XMRFront CVT Outlet. XMR
-
152707001383 Adaptor. XMRAdaptor. XMR
-
153707001384 Double CVT Outlet. XMRDouble CVT Outlet. XMR
-
154707001385 CVT Outlet. XMRCVT Outlet. XMR
-
155707001386 Rear CVT Outlet. XMRRear CVT Outlet. XMR
-
156707001388 Right Support. XMRRight Support. XMR
-
157707001389 Central Support. XMRCentral Support. XMR
-
158707001391 Right Support. XMRRight Support. XMR
-
159707001390 Left Support. XMRLeft Support. XMR
-
161707001400 Flexible AdaptorFlexible Adaptor
-
169415079800 Hose 1/4''Hose 1/4''
-
174707001479 Moulding. XMRMoulding. XMR
-
175707001481 Deflector. XMRDeflector. XMR
-
176707001482 CVT Filter. XMRCVT Filter. XMR
-
177707001483 Support. XMRSupport. XMR
-
179707001480 Air Inlet. XMRAir Inlet. XMR
-
180707800506 Retainer ClipRetainer Clip
-
181709200036 Hose Anchor. XMRHose Anchor. XMR
-
182710000073 Insulator PadInsulator Pad
