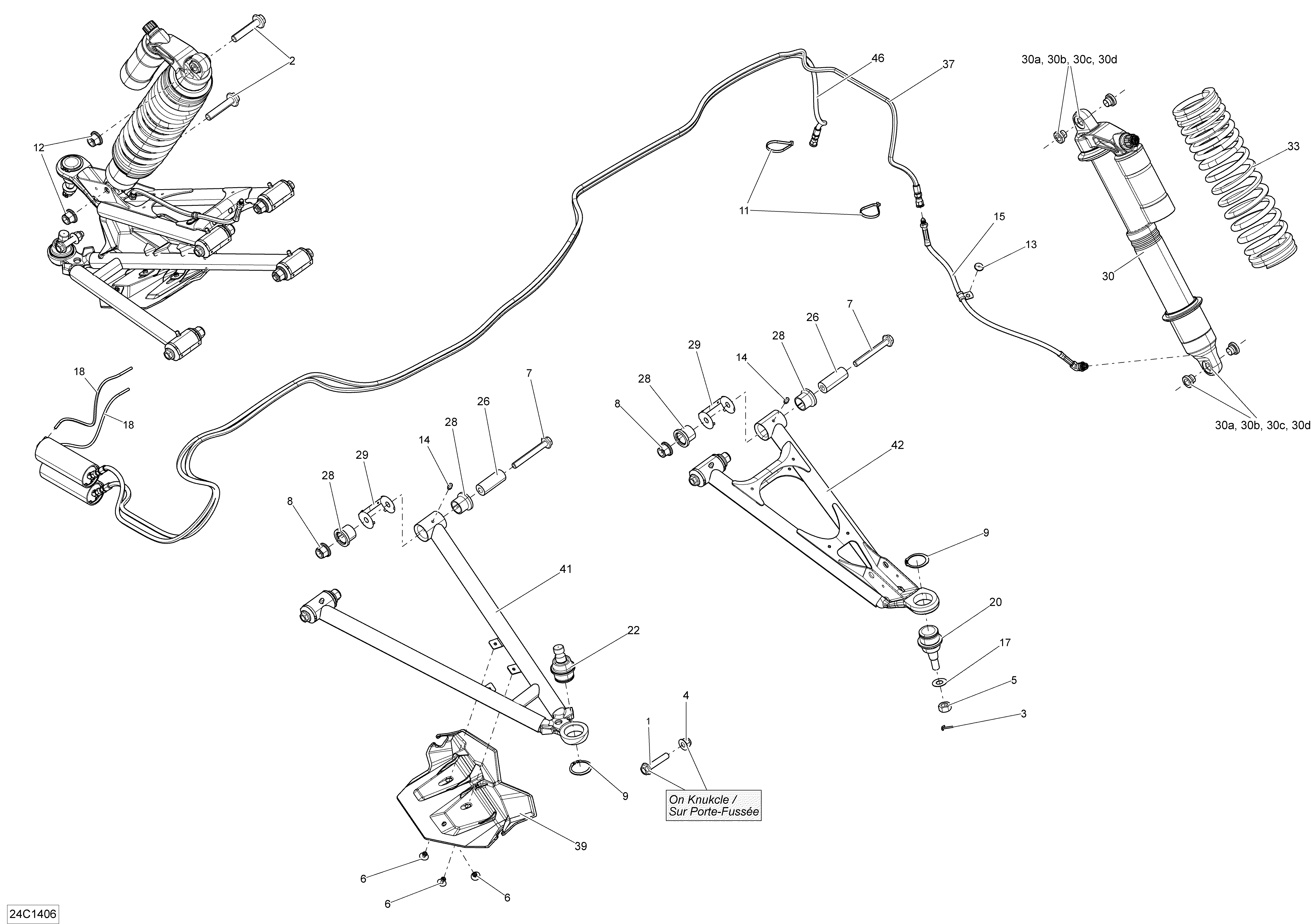

07- Front Suspension _24C1406 для BRP Maverick 1000_XMR - 2014
-
№АртикулНазвание
-
1207605044 Hex. Flanged Screw M10 X 50Hex. Flanged Screw M10 X 50
-
2207626046 Hex. Flanged Screw M12 X 60Hex. Flanged Screw M12 X 60
-
3211400017 Cotter PinCotter Pin
-
4233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
5250100099 Nut M12Nut M12
-
6293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
7207608046 Hex Flanged Screw M10 X 80Hex Flanged Screw M10 X 80
-
8233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
9293370035 CirclipCirclip
-
11293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
12233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
13390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
14408200700 Grease FittingGrease Fitting
-
15706001118 Rear Hose Ass'yRear Hose Ass'y
-
17250200086 Flat WasherFlat Washer
-
18706001143 Hose, Polyurethane 4 mmHose, Polyurethane 4 mm
-
20706202044 Ball JointBall Joint
-
22706202045 Ball JointBall Joint
-
26706201590 SleeveSleeve
-
28706201659 CushionCushion
-
29706201660 Wear PlateWear Plate
-
30706201717 Front Shock. Includes 30a To 30dFront Shock. Includes 30a To 30d
-
30a715900251 Spherical BearingSpherical Bearing
-
30b715900252 Retaining RingRetaining Ring
-
30c715900210 Interior BushingInterior Bushing
-
30d715900209 O-Ring BushingO-Ring Bushing
-
33706201718 Yellow Front SpringYellow Front Spring
-
37706201793 RH Front Hose Ass'yRH Front Hose Ass'y
-
39706201829 LH Joint ProtectorLH Joint Protector
-
39706201830 RH Joint ProtectorRH Joint Protector
-
41706201861 LH Front Lower ArmLH Front Lower Arm
-
41706201862 RH Front Lower ArmRH Front Lower Arm
-
42706201891 Yellow Upper Front ArmYellow Upper Front Arm
-
46706201965 LH Front Hose Ass'yLH Front Hose Ass'y
