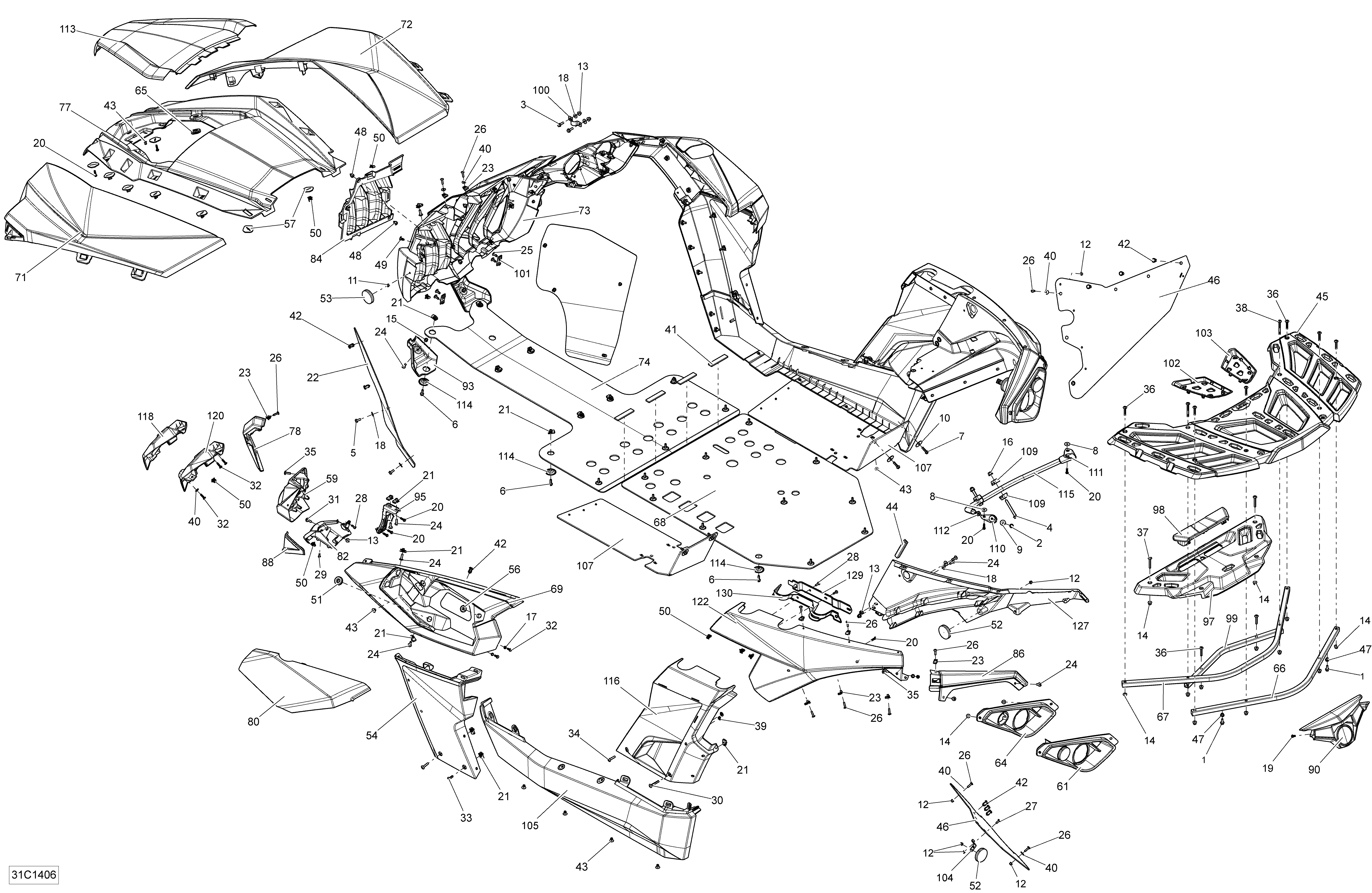

09- Body And Accessories _31C1406 для BRP Maverick 1000_XMR - 2014
-
№АртикулНазвание
-
1207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
3207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
5210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
7210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
8224060201 Flat WasherFlat Washer
-
9224061201 Flat WasherFlat Washer
-
10224081301 Flat WasherFlat Washer
-
11233251414 Hex. Flanged Elastic Nut M5. Except Model-EuropeHex. Flanged Elastic Nut M5. Except Model-Europe
-
12233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
15233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
16233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
17234051410 Flat Washer M5Flat Washer M5
-
18234062670 Flat WasherFlat Washer
-
19241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
20241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
21250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
22705007827 Inner FenderInner Fender
-
23250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
24250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
25250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
26250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
28250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
29250000202 Self Tapping Screw #8 X 5/8Self Tapping Screw #8 X 5/8
-
30250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
31250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
32250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
33250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
34250000398 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
35250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
36250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
37250000647 Torx Screw M6 X 45Torx Screw M6 X 45
-
38250000648 Torx Screw M6 X 60Torx Screw M6 X 60
-
39250100129 Push NutPush Nut
-
40250200025 Washer M5Washer M5
-
41291001932 PadPad
-
42293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
43293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
44293200093 Neoprene SealNeoprene Seal
-
45715002367 Rack KitRack Kit
-
46705007828 DeflectorDeflector
-
47293450274 InsertInsert
-
48293830005 Rubber BumperRubber Bumper
-
49414644300 DartDart
-
50517302785 ClipClip
-
51517303756 GrommetGrommet
-
52705002408 Red Reflector. Except Model-EuropeRed Reflector. Except Model-Europe
-
53705002409 Amber Reflector. Except Model-EuropeAmber Reflector. Except Model-Europe
-
54705002887 Yellow LH Front Lateral PannelYellow LH Front Lateral Pannel
-
54705002888 Yellow RH Front Lateral PannelYellow RH Front Lateral Pannel
-
56705003264 GrommetGrommet
-
57705003841 Support PlateSupport Plate
-
59705004508 LH Front FaciaLH Front Facia
-
59705004509 RH Front FaciaRH Front Facia
-
61705004731 LH Rear Facia. Except Model-EuropeLH Rear Facia. Except Model-Europe
-
61705004732 RH Rear Facia. Except Model-EuropeRH Rear Facia. Except Model-Europe
-
65705005156 Oval WasherOval Washer
-
66705005469 TubeTube
-
67705005470 TubeTube
-
68705005480 Rear Skid PlateRear Skid Plate
-
69705006558 Black LH Front FenderBlack LH Front Fender
-
69705006559 Black RH Front FenderBlack RH Front Fender
-
71705005781 Yellow LH Fixe HoodYellow LH Fixe Hood
-
72705005782 Yellow RH Fixe HoodYellow RH Fixe Hood
-
73705005784 Front Radiator GrillFront Radiator Grill
-
74705005798 Front Skid PlateFront Skid Plate
-
77705007960 Fixe Center HoodFixe Center Hood
-
78705005824 Yellow LH Bumper CapYellow LH Bumper Cap
-
78705005825 Yellow RH Bumper CapYellow RH Bumper Cap
-
80705006566 Black LH Cover Front FenderBlack LH Cover Front Fender
-
80705006567 Black RH Cover Front FenderBlack RH Cover Front Fender
-
82705006562 Black LH Front Fender TrimBlack LH Front Fender Trim
-
82705006563 Black RH Front Fender TrimBlack RH Front Fender Trim
-
84705005983 LH Rear Radiator GrillLH Rear Radiator Grill
-
84705005984 RH Rear Radiator GrillRH Rear Radiator Grill
-
86705006583 Black LH Rear Facia TrimBlack LH Rear Facia Trim
-
86705006584 Black RH Rear Facia TrimBlack RH Rear Facia Trim
-
88705005992 LH Front Facia TrimLH Front Facia Trim
-
88705005993 RH Front Facia TrimRH Front Facia Trim
-
90705005994 LOGO SupportLOGO Support
-
93705006038 LH Bumper Skid CapLH Bumper Skid Cap
-
93705006039 RH Bumper Skid CapRH Bumper Skid Cap
-
95705006078 LH Froont Facia SupportLH Froont Facia Support
-
95705006079 RH Froont Facia SupportRH Froont Facia Support
-
97705006128 Bagage Central RackBagage Central Rack
-
98705006132 Central Bagage Rack CapCentral Bagage Rack Cap
-
99705006279 Bagage Rack TubeBagage Rack Tube
-
100705006623 ClampClamp
-
101705006635 Radiator Grill BracketRadiator Grill Bracket
-
102705006713 LH Bagage Rack CoverLH Bagage Rack Cover
-
103705006714 RH Bagage Rack CoverRH Bagage Rack Cover
-
105705006991 LH Lateral Middle PanelLH Lateral Middle Panel
-
105705006992 RH Lateral Middle PanelRH Lateral Middle Panel
-
107705007038 Lateral Skid PlateLateral Skid Plate
-
109705007044 Rear Support Facia ClipRear Support Facia Clip
-
110705007045 LH Rear Facia SupportLH Rear Facia Support
-
111705007046 RH Rear Facia SupportRH Rear Facia Support
-
112705007047 Tube ConnectorTube Connector
-
113705007060 Black Removable HoodBlack Removable Hood
-
114705007171 CupCup
-
115705007299 Body TubeBody Tube
-
116705006000 Yellow LH Rear Lateral PanelYellow LH Rear Lateral Panel
-
116705006001 RH Rear Lateral PanelRH Rear Lateral Panel
-
118705007497 LH Bumper Grill. Except Model-EuropeLH Bumper Grill. Except Model-Europe
-
118705007498 RH Bumper Grill. Except Model-EuropeRH Bumper Grill. Except Model-Europe
-
122705006579 Black LH Rear FenderBlack LH Rear Fender
-
122705006580 Black RH Rear FenderBlack RH Rear Fender
-
127705007910 LH Rear Inner FenderLH Rear Inner Fender
-
127705007911 RH Rear Inner FenderRH Rear Inner Fender
-
129705007917 Support PlateSupport Plate
-
130705007918 LH Rear Fender SupportLH Rear Fender Support
-
130705007919 RH Rear Fender SupportRH Rear Fender Support
