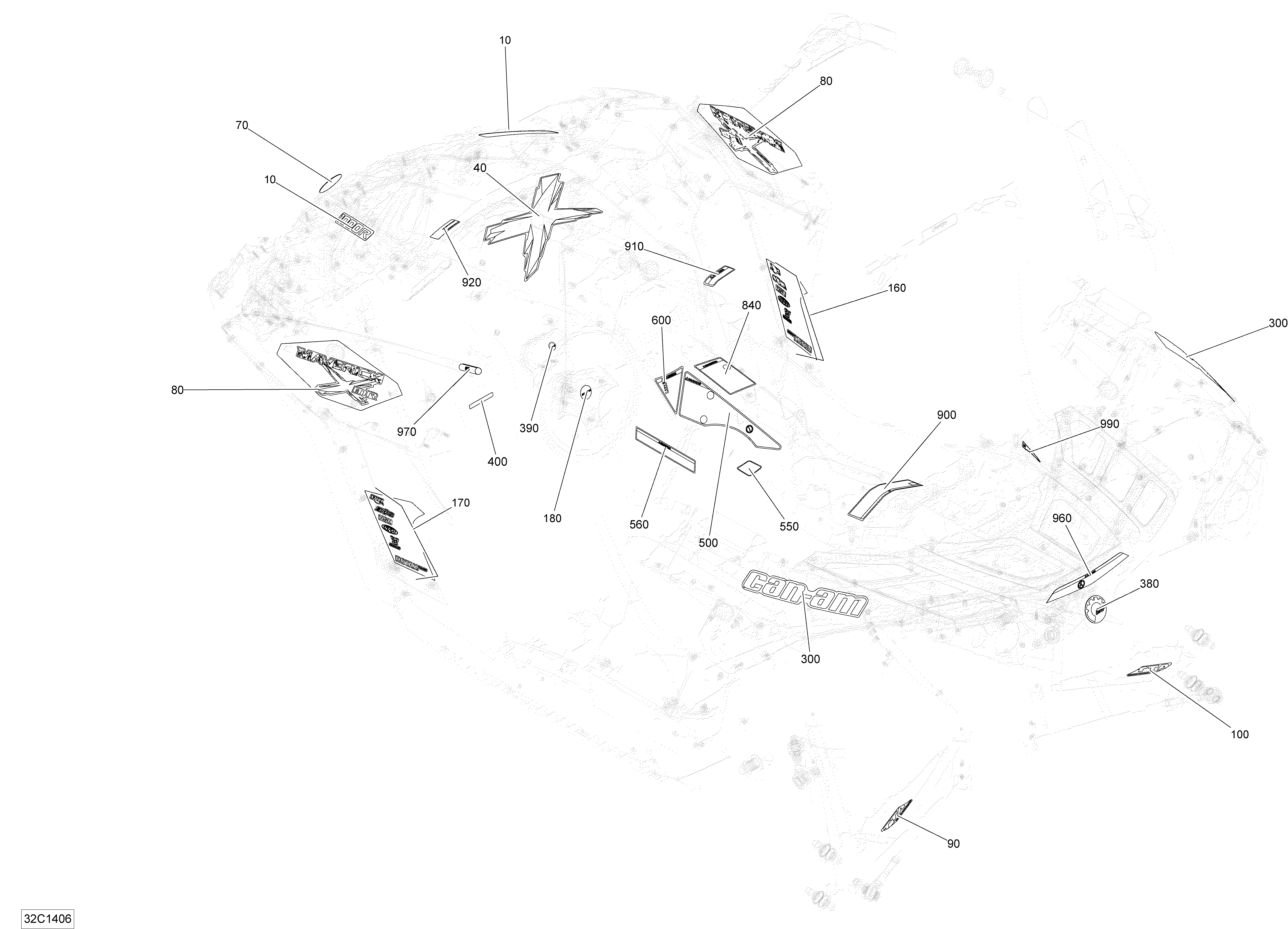

09- Decals _32C1406 для BRP Maverick 1000_XMR - 2014
-
№АртикулНазвание
-
10704903755 Hood Decal, 1000RHood Decal, 1000R
-
40704903428 Decal XDecal X
-
70219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
80704903575 Side DecalSide Decal
-
90704903576 Decal TTADecal TTA
-
100704903577 Decal TTADecal TTA
-
160704904070 Sponsor DecalSponsor Decal
-
170704904071 Sponsor DecalSponsor Decal
-
180704902065 Logo Can-Am, 35 mmLogo Can-Am, 35 mm
-
300704903887 CAN-AM DecalCAN-AM Decal
-
380219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
390219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
400704901558 Decal, Dynamic Power SteeringDecal, Dynamic Power Steering
-
500704903671 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
550704902407 Decal, Public Roads UseDecal, Public Roads Use
-
560704903810 Warning Label, Tire PressureWarning Label, Tire Pressure
-
600704903692 Warning Label ''Speed Selector''Warning Label ''Speed Selector''
-
840704903676 Warning Label ''Passenger''Warning Label ''Passenger''
-
900704903808 Int'l Label Multi LanguageInt'l Label Multi Language
-
910704902434 Caution Decal, Maximum LoadCaution Decal, Maximum Load
-
920707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
960704903471 Warning Decal, Luggage RackWarning Decal, Luggage Rack
-
970704903434 Notice Decal, SteeringNotice Decal, Steering
-
990704903601 Decal, FUEL-OCTANEDecal, FUEL-OCTANE
