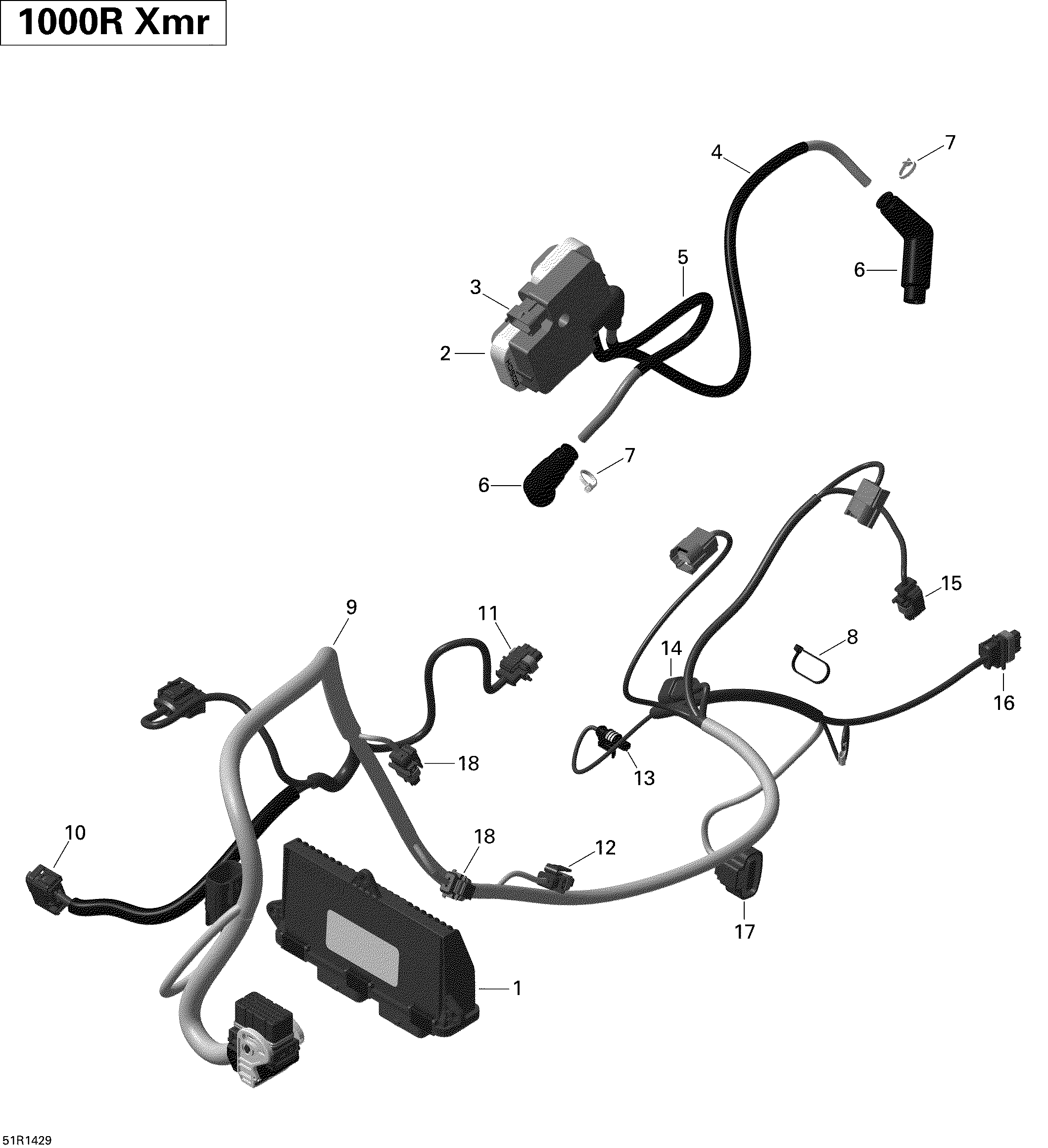

10- Engine Harness And Electronic Module _51R1429 для BRP Maverick 1000_XMR - 2014
-
№АртикулНазвание
-
1420266981 ECM ConnectorECM Connector
-
2278001546 Ignition CoilIgnition Coil
-
3710000568 HousingHousing
-
4420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
5420664300 Spark Plug Cable, 365 mm, MAG SideSpark Plug Cable, 365 mm, MAG Side
-
6420265020 Spark Plug ConnectorSpark Plug Connector
-
7420866710 Tie RapTie Rap
-
8293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9420666500 Engine Wiring HarnessEngine Wiring Harness
-
10710001872 Housing, 6 PositionsHousing, 6 Positions
-
11278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
12278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
13278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
14278002378 Male HousingMale Housing
-
15278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
16278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
17710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
18278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
