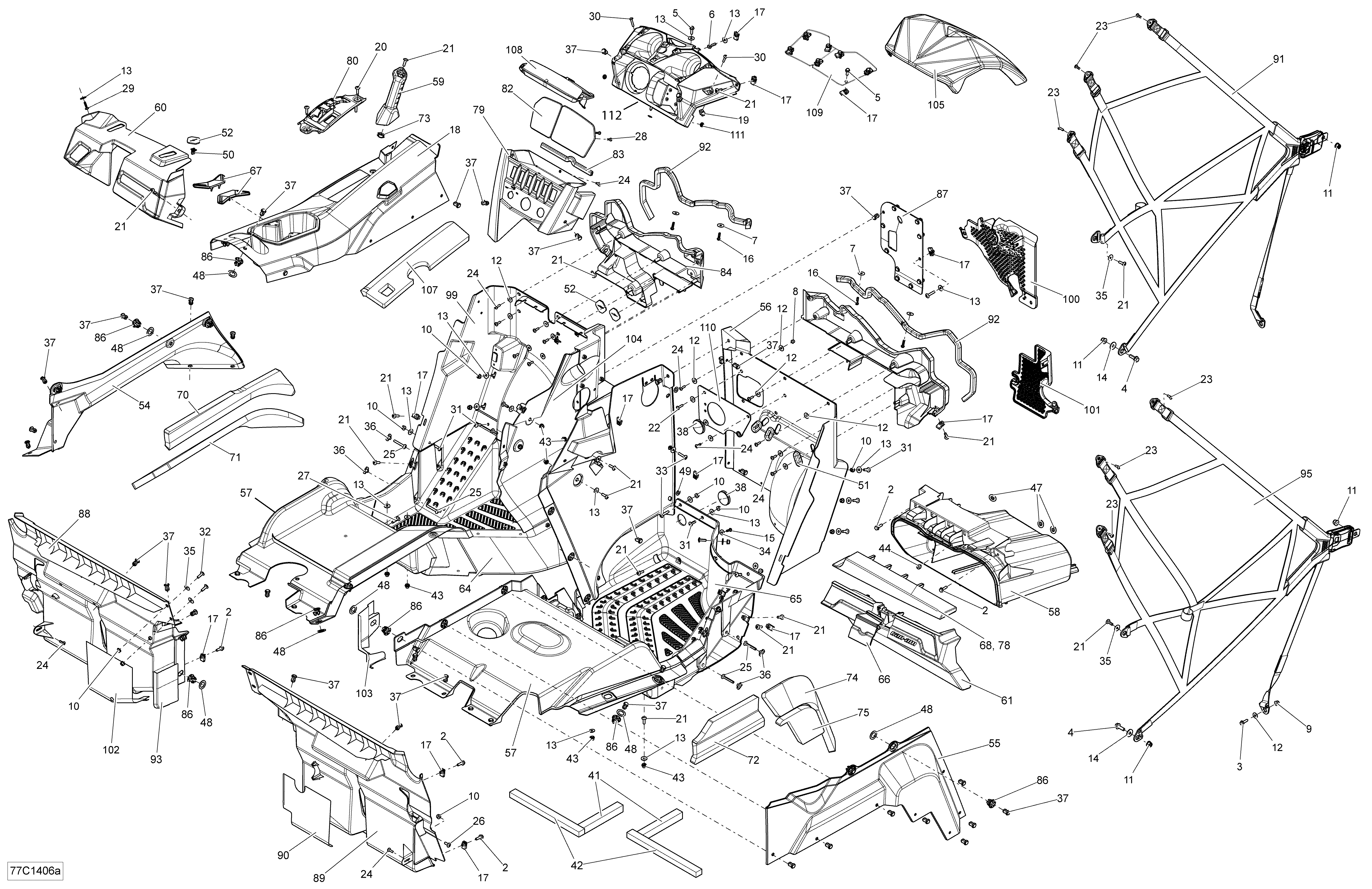

09- Cab Interior _77C1406a для BRP Maverick 1000_XMR - 2014
-
№АртикулНазвание
-
2207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
5210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
6210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
7224060201 Flat WasherFlat Washer
-
8233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12234062410 Flat Washer 6 mmFlat Washer 6 mm
-
13234062670 Flat WasherFlat Washer
-
14234082410 Flat Washer 8 mmFlat Washer 8 mm
-
15241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
16241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
17250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
18715002190 Central Console Ass'yCentral Console Ass'y
-
19250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
20250000081 Torx Screw M6 X 25Torx Screw M6 X 25
-
21250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
22250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
23250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
24250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
25250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
26250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
27250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
28250000294 Torx Screw K40 X 16Torx Screw K40 X 16
-
29250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
30250000300 Torx Screw M5 X 25Torx Screw M5 X 25
-
31250000335 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
32250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
33250000398 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
34250200025 Washer M5Washer M5
-
35250200040 Flat WasherFlat Washer
-
36293100003 Nut M6Nut M6
-
37293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
38293250242 Rubber CoverRubber Cover
-
41293250318 Seal TraySeal Tray
-
42293250319 Seal TraySeal Tray
-
43293450274 InsertInsert
-
44293830005 Rubber BumperRubber Bumper
-
47414859400 CapCap
-
48503189273 WasherWasher
-
49506151252 WasherWasher
-
50517302785 ClipClip
-
51705003668 Oblong GrommetOblong Grommet
-
52705003841 Support PlateSupport Plate
-
54707900001 LH Side ConsoleLH Side Console
-
55707900002 RH Side ConsoleRH Side Console
-
56707900004 RH Front FloorRH Front Floor
-
57707900218 LH Under Seat PlateLH Under Seat Plate
-
57707900006 RH Under Seat PlateRH Under Seat Plate
-
58707900046 Storage BinStorage Bin
-
59707900011 Passenger HandlePassenger Handle
-
60715001250 Dashboard Ass'yDashboard Ass'y
-
61715001263 Bin Cover Ass'yBin Cover Ass'y
-
64707900022 LH Lower FloorLH Lower Floor
-
65707900023 RH Lower FloorRH Lower Floor
-
66707900031 LatchLatch
-
67707900036 Cup RetainerCup Retainer
-
68707900038 Trim Glove BoxTrim Glove Box
-
70707900043 LH Upper Lateral Console FoamLH Upper Lateral Console Foam
-
71707900044 LH Lower Lateral Console FoamLH Lower Lateral Console Foam
-
72707900045 RH Lateral Console FoamRH Lateral Console Foam
-
73707900048 Connector TubeConnector Tube
-
74707900055 RH Lateral Console FoamRH Lateral Console Foam
-
75707900056 RH Lateral Console FoamRH Lateral Console Foam
-
78707900062 Trim Glove BoxTrim Glove Box
-
79715002187 Central Dashboard Ass'yCentral Dashboard Ass'y
-
80707900070 Lever IndicatorLever Indicator
-
82707900104 GPS Cover And Radio ControlGPS Cover And Radio Control
-
83271000110 Protection TrimProtection Trim
-
84707900113 LH Floor SupportLH Floor Support
-
86707900133 InsertInsert
-
87707900204 DeflectorDeflector
-
88707900165 LH Rear DeflectorLH Rear Deflector
-
89707900166 RH Rear DeflectorRH Rear Deflector
-
90707900167 Heat ShieldHeat Shield
-
91707900171 LH Safety NetLH Safety Net
-
92293200093 Neoprene SealNeoprene Seal
-
93707900183 Heat ShieldHeat Shield
-
95707900172 RH Safety NetRH Safety Net
-
99707900175 LH Front Upper FloorLH Front Upper Floor
-
100707900178 GrillGrill
-
101707900180 GrillGrill
-
102707900182 Heat ShieldHeat Shield
-
103707900184 Heat ShieldHeat Shield
-
104707900193 Front Side Dash PanelFront Side Dash Panel
-
105707900200 Yellow-Dashboard CapYellow-Dashboard Cap
-
107707900214 Front Central Console FoamFront Central Console Foam
-
108707900215 Central FilterCentral Filter
-
109707900216 Dashboard CoverDashboard Cover
-
110707900217 Hose SupportHose Support
-
111732610072 Push NutPush Nut
-
112707900199 Upper Central Console Ass'yUpper Central Console Ass'y
