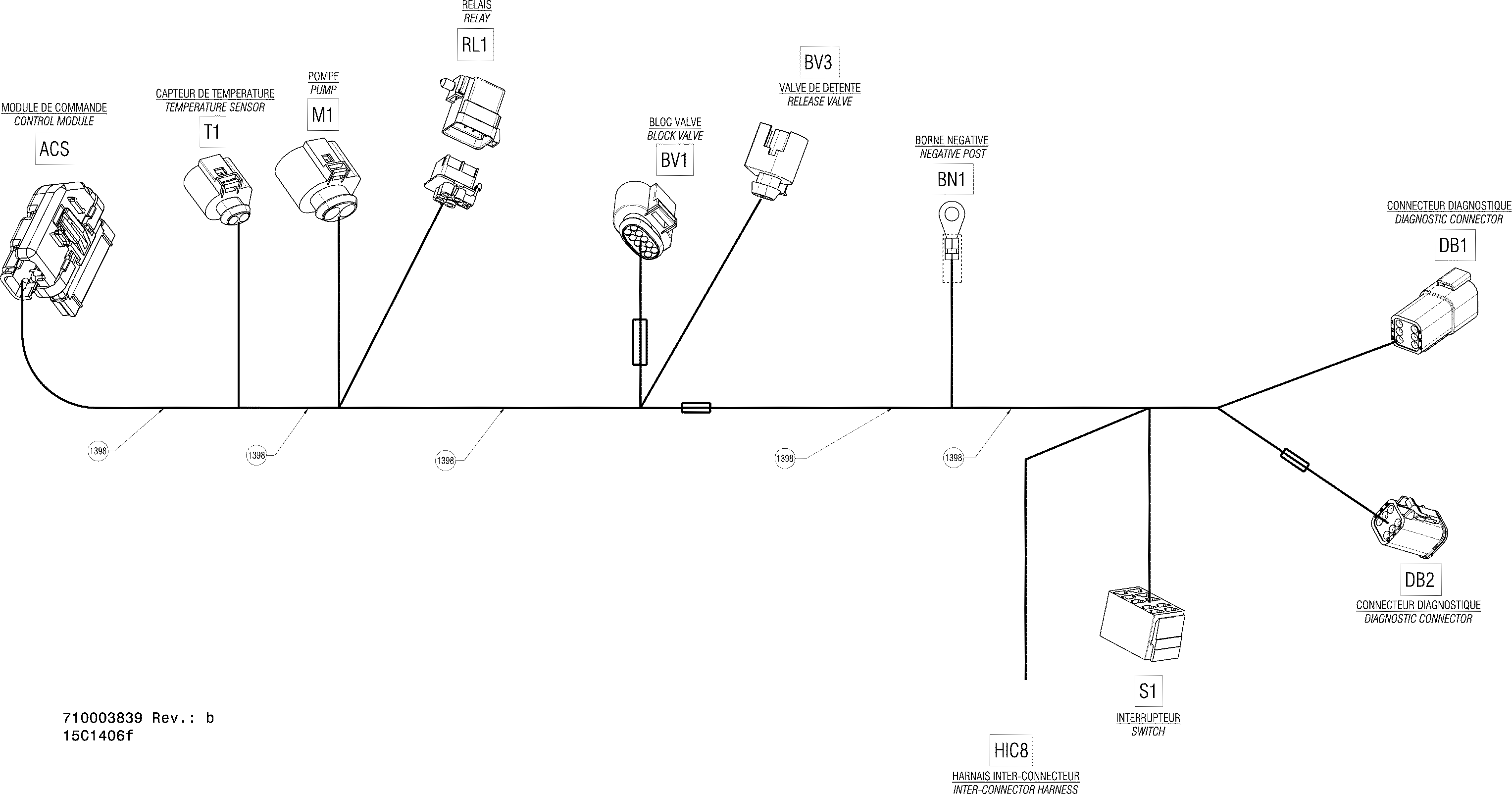

10- Electrical Harness Compressor_15C1406f для BRP Maverick 1000_XMR - 2014
-
№АртикулНазвание
-
1710003839 Comressor Harness. XMRComressor Harness. XMR
-
1398415129879 Corrugated TubeCorrugated Tube
-
ACS515176223 Female Terminal Housing, 36 CircuitsFemale Terminal Housing, 36 Circuits
-
ACS515176224 Terminal SupportTerminal Support
-
ACS515175812 PlugPlug
-
ACS515176221 Female HousingFemale Housing
-
ACS515176222 Wire SealWire Seal
-
ACS710001131 Female TerminalFemale Terminal
-
BN1278001392 Open BarrelOpen Barrel
-
BV1710002668 HousingHousing
-
BV1710001258 PlugPlug
-
BV1710002664 SealSeal
-
BV1710001185 Female TerminalFemale Terminal
-
BV3710002669 HousingHousing
-
BV3278001482 SealSeal
-
BV3710002686 TerminalTerminal
-
DB1710001539 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
DB1278000735 Female Lock, 6 CircuitsFemale Lock, 6 Circuits
-
DB1710001348 Male TerminalMale Terminal
-
DB2710001540 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
DB2515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
DB2278001665 Female TerminalFemale Terminal
-
HIC8710003174 ConnectorConnector
-
HIC8710003176 ConnectorConnector
-
M1710002667 HousingHousing
-
M1710002681 TerminalTerminal
-
RL1710003001 ClipClip
-
RL1710002920 HousingHousing
-
RL1710002921 LockLock
-
RL1278000216 Wire SealWire Seal
-
RL1710002996 RelayRelay
-
RL1278001065 Wire SealWire Seal
-
RL1278001505 Wire SealWire Seal
-
RL1710003191 TerminalTerminal
-
RL1710003237 TerminalTerminal
-
S1710002000 HousingHousing
-
S1710001931 TerminalTerminal
-
T1710002670 HousingHousing
-
T1415128501 SealSeal
-
T1710000836 Female TerminalFemale Terminal
