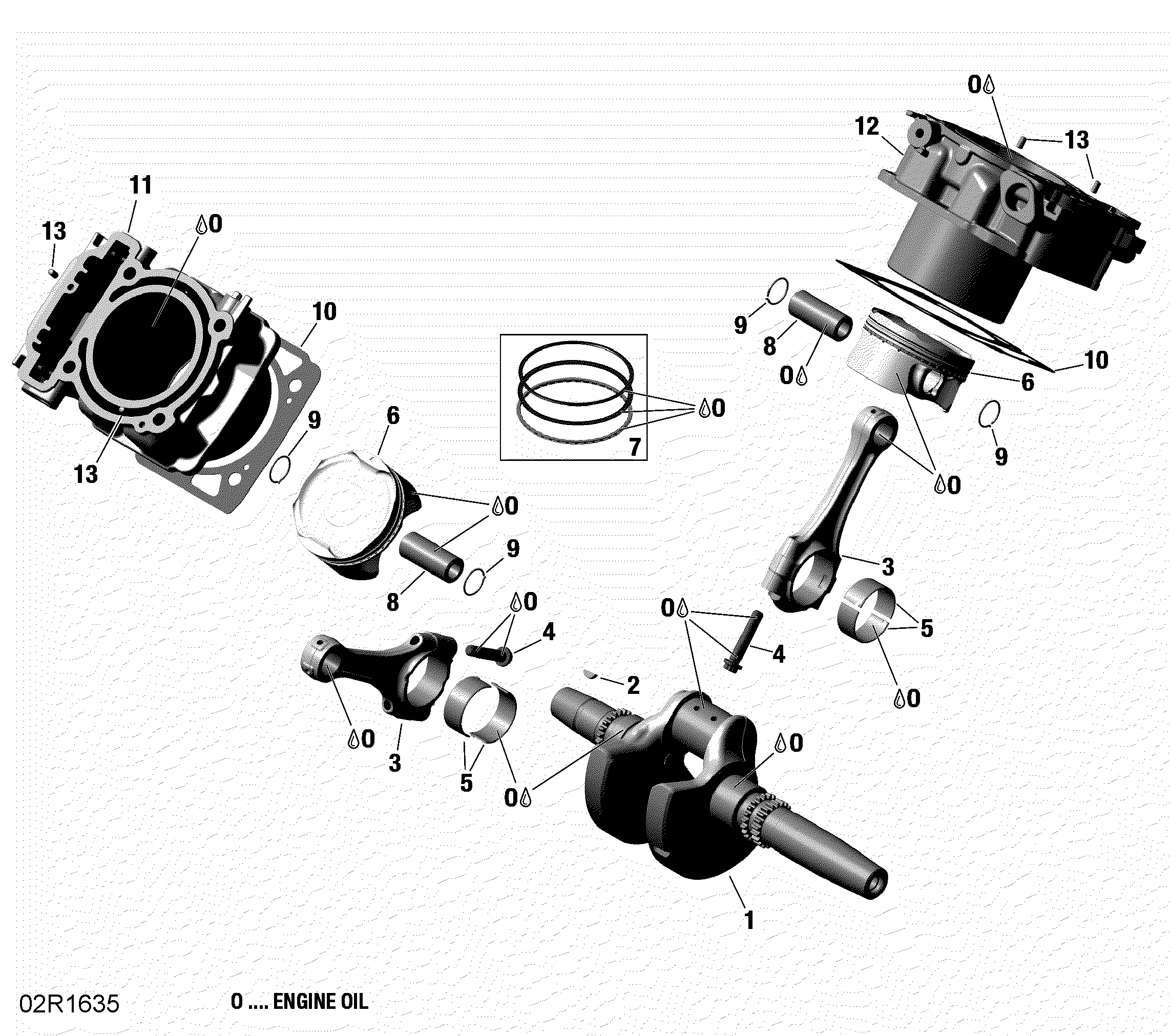

01- Crankshaft, Piston And Cylinder - HD10 для BRP Defender - 2016
-
№АртикулНазвание
-
1420219865 CrankshaftCrankshaft
-
2420246570 Woodruff Key 4 X 5Woodruff Key 4 X 5
-
3>4420217559 Connecting Rod Ass'yConnecting Rod Ass'y
-
4420641475 Connecting Rod Screw M9 X 1Connecting Rod Screw M9 X 1
-
5420233726 Plain BearingPlain Bearing
-
6>7420685248 Piston Ass'y, 90.955 mmPiston Ass'y, 90.955 mm
-
7420296774 Piston Ring SetPiston Ring Set
-
8420216351 Piston PinPiston Pin
-
9420245436 Piston Circlip. Included in Gasket SetPiston Circlip. Included in Gasket Set
-
10420630212 Gasket. Included in Gasket SetGasket. Included in Gasket Set
-
11420413112 Cylinder With Sleeve, FrontCylinder With Sleeve, Front
-
12420413117 Cylinder With Sleeve, RearCylinder With Sleeve, Rear
-
13420929650 Drive Pin 5 X 10Drive Pin 5 X 10
