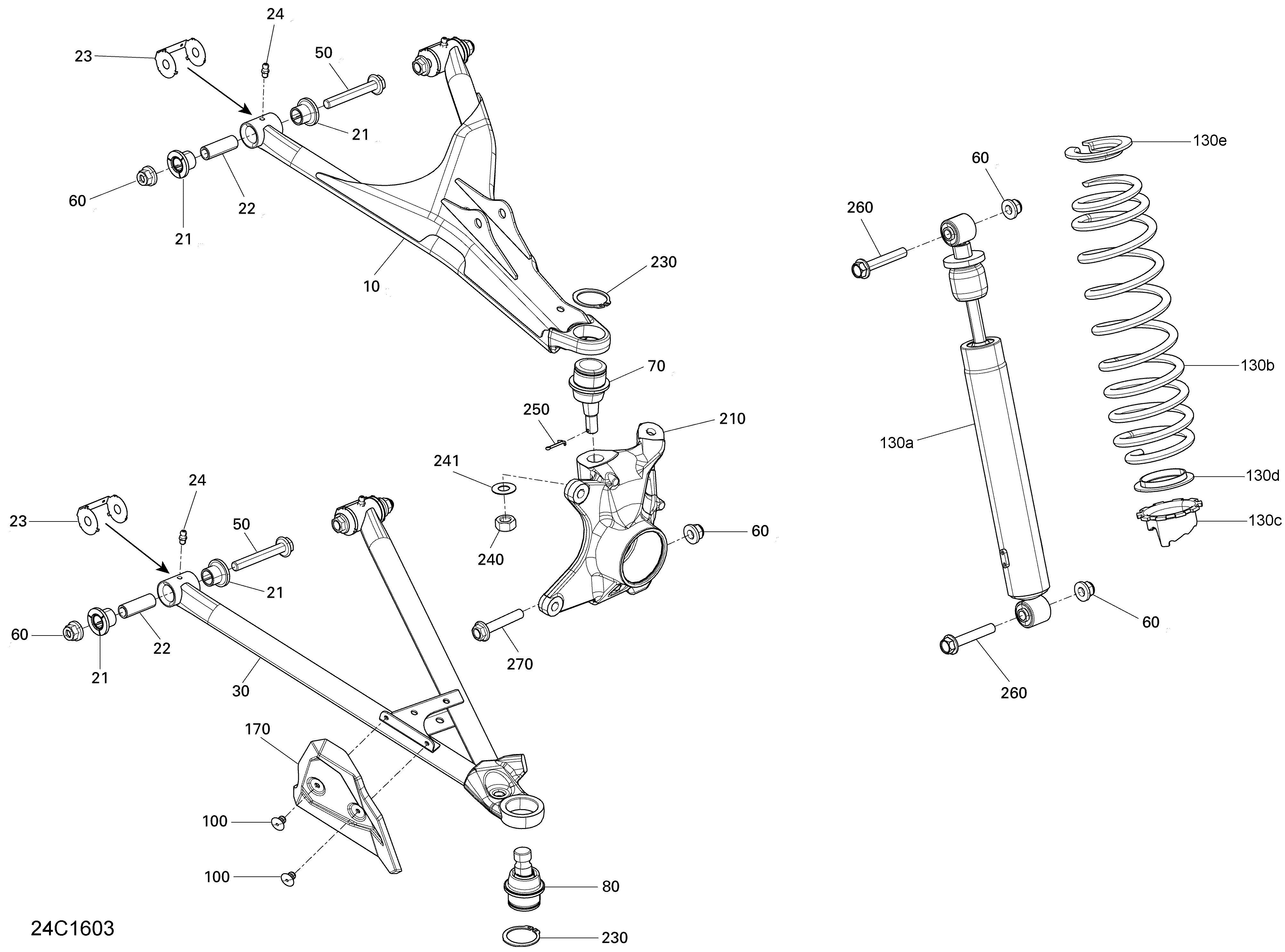

07- Front Suspension для BRP Defender - 2016
-
№АртикулНазвание
-
10706202020 Front Top LH ArmFront Top LH Arm
-
10706202059 Front Top RH ArmFront Top RH Arm
-
21706202088 CushionCushion
-
22703500875 Bushing KitBushing Kit
-
23703500875 Bushing KitBushing Kit
-
24408200700 Grease FittingGrease Fitting
-
30706202023 Front Lower LH ArmFront Lower LH Arm
-
30706202024 Front Lower RH ArmFront Lower RH Arm
-
50207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
60233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
70706202044 Ball JointBall Joint
-
80706202045 Ball JointBall Joint
-
100293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
130a706202126 Front Shock. Engine HD10 P-Convenience DPS, XTFront Shock. Engine HD10 P-Convenience DPS, XT
-
130a706202602 Front Shock. Engine HD8 Except P-XTFront Shock. Engine HD8 Except P-XT
-
130a706202602 Front Shock. Package CABFront Shock. Package CAB
-
130a706202602 Front Shock. Engine HD8 P-XTFront Shock. Engine HD8 P-XT
-
130b706202127 Black Front Spring. Engine HD10 P-XTBlack Front Spring. Engine HD10 P-XT
-
130b706202175 Black Front Spring. Engine HD10 P-Convenience, P-DPSBlack Front Spring. Engine HD10 P-Convenience, P-DPS
-
130b706202504 Black Front Spring. Engine HD8 Except P-XTBlack Front Spring. Engine HD8 Except P-XT
-
130b706202575 Black Front Spring. Engine HD10 P-CabBlack Front Spring. Engine HD10 P-Cab
-
130b706202604 Black Front Spring. Engine HD8 P-XTBlack Front Spring. Engine HD8 P-XT
-
130c706001893 Adjust RingAdjust Ring
-
130d503187500 Spring GuideSpring Guide
-
130e706001894 Spring CupSpring Cup
-
170706202135 RH ProtectorRH Protector
-
170706202134 LH ProtectorLH Protector
-
210706202027 LH KnuckleLH Knuckle
-
210706202028 RH KnuckleRH Knuckle
-
230293370035 CirclipCirclip
-
240250100099 Nut M12Nut M12
-
241250200086 Flat WasherFlat Washer
-
250211400017 Cotter PinCotter Pin
-
260207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
-
270207605546 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
