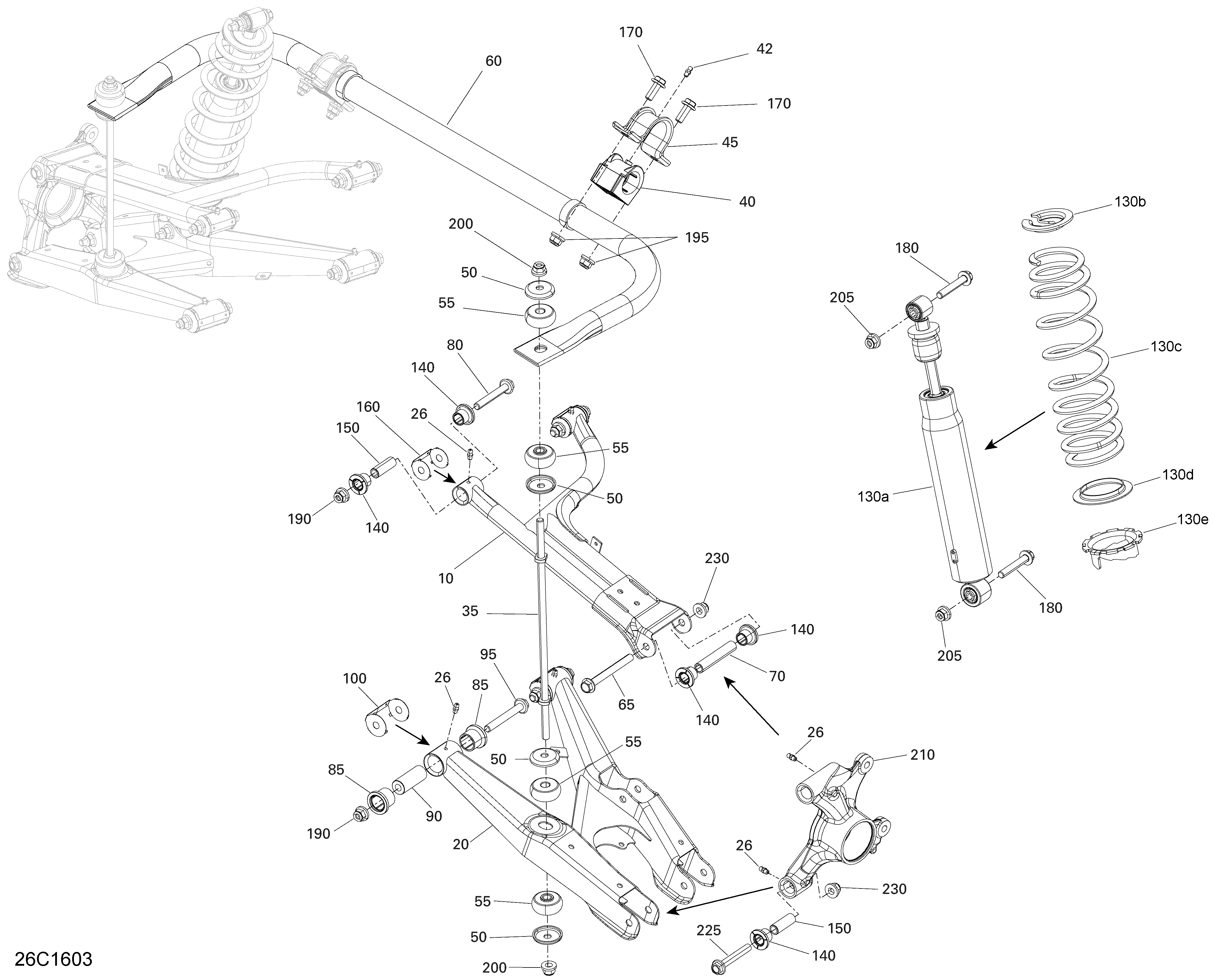

08- Rear Suspension для BRP Defender - 2016
-
№АртикулНазвание
-
10706001755 LH Upper ArmLH Upper Arm
-
10706001756 RH Upper ArmRH Upper Arm
-
20706001757 LH Lower ArmLH Lower Arm
-
20706001758 RH Lower ArmRH Lower Arm
-
26408200700 Grease FittingGrease Fitting
-
35706001898 Torsion Bar LinkTorsion Bar Link
-
40706001896 CushionCushion
-
42408200700 Grease FittingGrease Fitting
-
45706001897 ClampClamp
-
50706002027 Linkage CupLinkage Cup
-
55706002028 Linkage BushingLinkage Bushing
-
60706002076 Sway Bar Ass'ySway Bar Ass'y
-
65230600046 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
70706202197 Upper BushingUpper Bushing
-
80207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
85706201659 BushingBushing
-
90706201590 SleeveSleeve
-
95207608046 Hex Flanged Screw M10 X 80Hex Flanged Screw M10 X 80
-
100706201660 Wear PlateWear Plate
-
130a706001900 Shock. Engine HD10 P-Convenience DPS, XTShock. Engine HD10 P-Convenience DPS, XT
-
130a706002485 Shock. Engine HD8 Except P-XTShock. Engine HD8 Except P-XT
-
130a706002485 Shock. Engine HD10 P-CabShock. Engine HD10 P-Cab
-
130a706002485 Shock. Engine HD8 P-XTShock. Engine HD8 P-XT
-
130b706001894 Spring CupSpring Cup
-
130c706001901 Black Spring. Engine HD10 P-XTBlack Spring. Engine HD10 P-XT
-
130c706002001 Black Spring. Engine HD10 P-Convenience, P-DPSBlack Spring. Engine HD10 P-Convenience, P-DPS
-
130c706002359 Black Spring. Engine HD8 Except P-XTBlack Spring. Engine HD8 Except P-XT
-
130c706002463 Black Spring. Engine HD10 P-CabBlack Spring. Engine HD10 P-Cab
-
130c706002491 Black Spring. Engine HD8 P-XTBlack Spring. Engine HD8 P-XT
-
130d706000911 Protector RingProtector Ring
-
130e706000910 Adjustable RingAdjustable Ring
-
140703500875 Bushing KitBushing Kit
-
150703500875 Bushing KitBushing Kit
-
160703500875 Bushing KitBushing Kit
-
170207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
180207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
-
190233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
195233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
200233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
205233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
210706001793 LH KnuckleLH Knuckle
-
210706001795 RH KnuckleRH Knuckle
-
225207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
230233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
