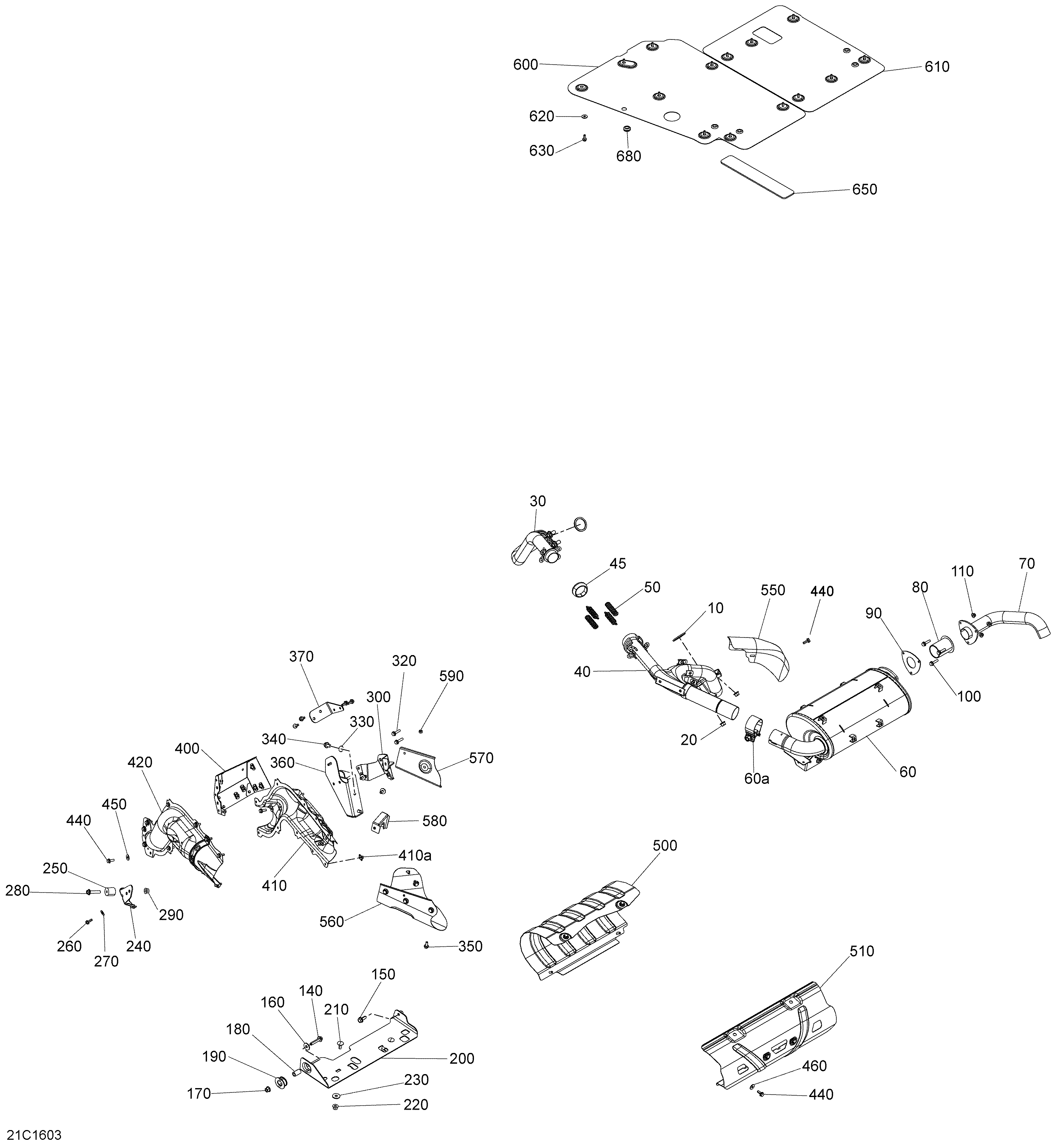

01- Exhaust System для BRP Defender - 2016
-
№АртикулНазвание
-
10707600317 GasketGasket
-
20233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
30707601903 Front Exhaust Pipe. Engine HD10Front Exhaust Pipe. Engine HD10
-
30707601913 Front Exhaust Pipe. Engine HD8Front Exhaust Pipe. Engine HD8
-
40707601905 Rear Exhaust Pipe. Engine HD10Rear Exhaust Pipe. Engine HD10
-
40707601914 Rear Exhaust Pipe. Engine HD8Rear Exhaust Pipe. Engine HD8
-
45707601814 Exhaust GasketExhaust Gasket
-
50707601834 SpringSpring
-
60>60a707601770 Muffler. Include 60aMuffler. Include 60a
-
60a293650228 Exhaust Pipe ClampExhaust Pipe Clamp
-
70707601526 Exhaust Tail PipeExhaust Tail Pipe
-
80707601803 Spark ArrestorSpark Arrestor
-
90707601799 GasketGasket
-
100207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
110233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
140207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
150207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
160234082410 Flat Washer 8 mmFlat Washer 8 mm
-
170233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
180707601901 SpacerSpacer
-
190707601902 Rubber MountRubber Mount
-
200707601588 Muffler SupportMuffler Support
-
210207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
220233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
230234082410 Flat Washer 8 mmFlat Washer 8 mm
-
240707601861 Heat Shield Support. Man Date Before March 1rst 2016Heat Shield Support. Man Date Before March 1rst 2016
-
240707602003 Heat Shield Support. Man Date March 1rst 2016 And UpHeat Shield Support. Man Date March 1rst 2016 And Up
-
250707601910 SpacerSpacer
-
260210261680 Hex. Flanged Screw M6 X 16. Man Date Before March 1rst 2016Hex. Flanged Screw M6 X 16. Man Date Before March 1rst 2016
-
260207581646 Hex. Flanged Screw M8 X 16. Man Date March 1rst 2016 And UpHex. Flanged Screw M8 X 16. Man Date March 1rst 2016 And Up
-
270234062410 Flat Washer 6 mm. Man Date Before March 1rst 2016Flat Washer 6 mm. Man Date Before March 1rst 2016
-
270234281474 Washer 8mm. Man Date March 1rst 2016 And UpWasher 8mm. Man Date March 1rst 2016 And Up
-
280207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
290233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
300707601856 Heat Shield SupportHeat Shield Support
-
320207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
330234281474 Conical Spring Washer M8Conical Spring Washer M8
-
340207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
350207561646 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
360707601858 Heat Shield SupportHeat Shield Support
-
370707601912 BraceBrace
-
400707601853 Heat ShieldHeat Shield
-
410>410a707601859 Heat Shield. Include 410aHeat Shield. Include 410a
-
410a293100003 Nut M6Nut M6
-
420707601862 Heat ShieldHeat Shield
-
440207561646 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
450234062410 Flat Washer 6 mmFlat Washer 6 mm
-
460234062410 Flat Washer 6 mmFlat Washer 6 mm
-
500707601521 Heat ShieldHeat Shield
-
510707601791 Heat ShieldHeat Shield
-
550707601523 Pipe ProtectorPipe Protector
-
560707601848 Heat ShieldHeat Shield
-
570707601849 Heat ShieldHeat Shield
-
580707601911 BraceBrace
-
590232061414 Hex. Nut M6Hex. Nut M6
-
600707601522 Heat ShieldHeat Shield
-
610707601759 Heat ShieldHeat Shield
-
620234062410 Flat Washer 6 mmFlat Washer 6 mm
-
630210261640 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
640707601970 Heat ShieldHeat Shield
-
650707601921 Reflective SheetReflective Sheet
-
660707602032 Heat ShieldHeat Shield
-
680709000582 GrommetGrommet
