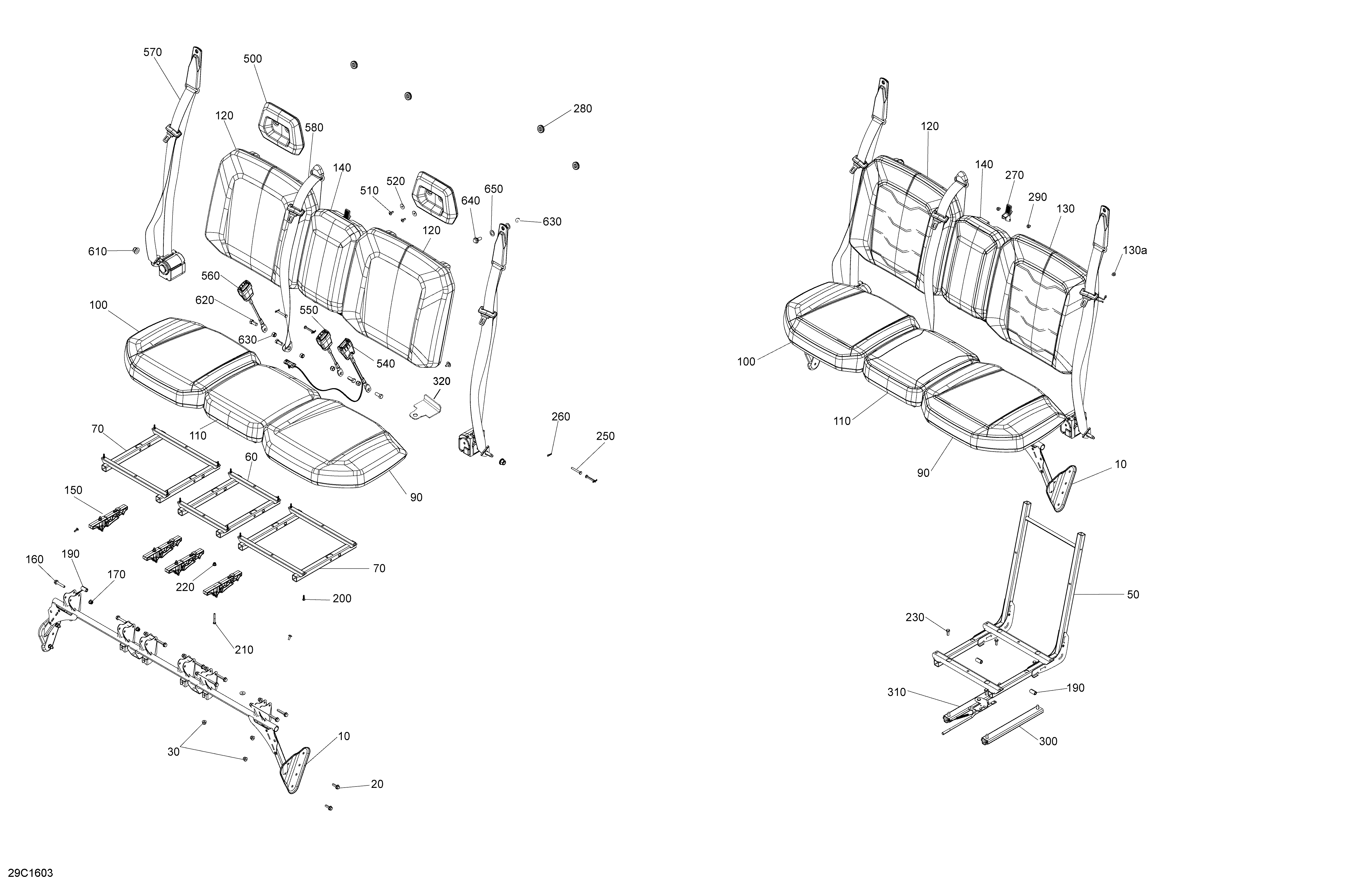

09- Seat для BRP Defender - 2016
-
№АртикулНазвание
-
10708001688 Seat Support. Package XT, CabSeat Support. Package XT, Cab
-
10708001904 Seat Support. Except Package XT, CabSeat Support. Except Package XT, Cab
-
20207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
30233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
50708001723 Operator Seat Member. Package XT, CabOperator Seat Member. Package XT, Cab
-
60708001895 Center Seat MemberCenter Seat Member
-
70708001899 Seat Member. Except Package XT, CabSeat Member. Except Package XT, Cab
-
70708001899 Seat Member. Package XT, CabSeat Member. Package XT, Cab
-
90708001497 LH Cushion Ass'y. Except Package XT, CabLH Cushion Ass'y. Except Package XT, Cab
-
90708001924 LH Cushion Ass'y. Package XT, CabLH Cushion Ass'y. Package XT, Cab
-
100708001498 RH Cushion Ass'y. Except Package XT, CabRH Cushion Ass'y. Except Package XT, Cab
-
100708001926 RH Cushion Ass'y. Package XT, CabRH Cushion Ass'y. Package XT, Cab
-
110708001629 Central Cushion Ass'y. Except Package XT, CabCentral Cushion Ass'y. Except Package XT, Cab
-
110708001928 Central Cushion Ass'y. Package XT, CabCentral Cushion Ass'y. Package XT, Cab
-
120708001701 Backrest Ass'y. Except Package XT, CabBackrest Ass'y. Except Package XT, Cab
-
120708001995 Backrest Ass'y. Package XT, Cab, Fixed seatBackrest Ass'y. Package XT, Cab, Fixed seat
-
130>130a708001930 Backrest Ass'y. Package XT, Cab, Sliding SeatBackrest Ass'y. Package XT, Cab, Sliding Seat
-
130a293830005 Rubber BumperRubber Bumper
-
140708001630 Center Backrest Ass'y. Except Package XT, CabCenter Backrest Ass'y. Except Package XT, Cab
-
140708001932 Center Backrest Ass'y. Package XT, CabCenter Backrest Ass'y. Package XT, Cab
-
150708001693 Base BracketBase Bracket
-
160207684544 Hex. Flanged Screw M8 X 45. Except Package XT, CabHex. Flanged Screw M8 X 45. Except Package XT, Cab
-
160207684544 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
170233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
171233281414 Hex. Flanged Elastic Nut M8. Except Package XT, CabHex. Flanged Elastic Nut M8. Except Package XT, Cab
-
172233281414 Hex. Flanged Elastic Nut M8. Package XT, CabHex. Flanged Elastic Nut M8. Package XT, Cab
-
190708001903 BushingBushing
-
190708001903 Bushing. Except Package XT, CabBushing. Except Package XT, Cab
-
200250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
210207064544 Hex. Screw M6 X 45Hex. Screw M6 X 45
-
220233261414 Hex. Flanged Elastic Nut M6. Package XT, CabHex. Flanged Elastic Nut M6. Package XT, Cab
-
230207182044 Hex. Screw M8 X 20. Package XT, CabHex. Screw M8 X 20. Package XT, Cab
-
250250400069 PinPin
-
260269800431 HairpinHairpin
-
270269501487 LatchLatch
-
280517303756 Grommet. Except Package XT, CabGrommet. Except Package XT, Cab
-
280517303756 GrommetGrommet
-
290293830005 Rubber BumperRubber Bumper
-
300708000848 LH Rail. Package XT, CabLH Rail. Package XT, Cab
-
310708002001 RH Rail. Package XT, CabRH Rail. Package XT, Cab
-
320708002332 Stopper. Package XT, CabStopper. Package XT, Cab
-
500708001721 Head RestHead Rest
-
540708002331 Operator BuckleOperator Buckle
-
550708002330 Center BuckleCenter Buckle
-
560708002329 Passenger BucklePassenger Buckle
-
570708002328 Safety BeltSafety Belt
-
580708002327 Center Safety BeltCenter Safety Belt
-
605207028046 Hex. Screw M12 X 80Hex. Screw M12 X 80
-
606250200102 Flat Washer M12Flat Washer M12
-
610233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
612250000721 Torx ScrewTorx Screw
-
613250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
616708000890 Safety Belt ScrewSafety Belt Screw
-
617708000891 Position WasherPosition Washer
-
620250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
630250100183 Lock Nut Nylon 7/16Lock Nut Nylon 7/16
