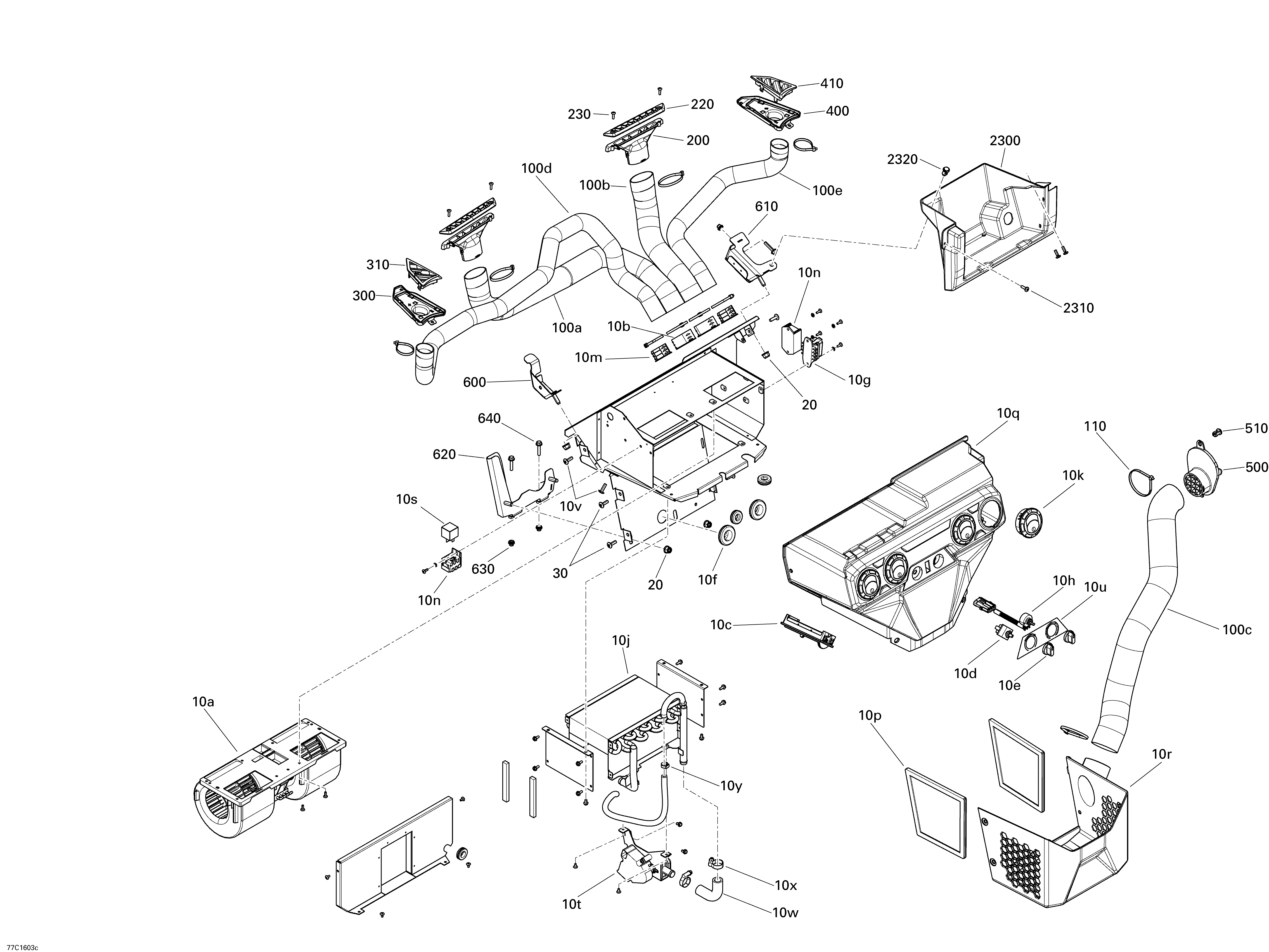

09- Cab - Heating System для BRP Defender - 2016
-
№АртикулНазвание
-
1715001978 Heater KitHeater Kit
-
10a520001536 FanFan
-
10b520001672 Duct AdaptorDuct Adaptor
-
10c520001673 Rectangular GridRectangular Grid
-
10d520001674 Fan SwitchFan Switch
-
10e520001675 ButtonButton
-
10f520001676 Grommet 5/8''Grommet 5/8''
-
10g520001679 Fuse BoxFuse Box
-
10h520001680 PotentiometerPotentiometer
-
10j520001535 Heater RadiatorHeater Radiator
-
10k520001681 Round GridRound Grid
-
10m520001682 Duct AdaptorDuct Adaptor
-
10n520001683 Wiring HarnessWiring Harness
-
10p520001537 FilterFilter
-
10q520001546 ConsoleConsole
-
10r520001626 Lower CoverLower Cover
-
10s520001684 Relay 12VRelay 12V
-
10t520001685 Valve Ass'y 5/8''Valve Ass'y 5/8''
-
10u520001686 HVAC DecalHVAC Decal
-
10v250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
10y293650047 Crimp ClampCrimp Clamp
-
20233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
30250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
100a520001540 LH Central Air DuctLH Central Air Duct
-
100b520001541 RH Central Air DuctRH Central Air Duct
-
100c520001542 Air Intake DuctAir Intake Duct
-
100d520001617 LH Air DuctLH Air Duct
-
100e520001618 RH Air DuctRH Air Duct
-
110293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
200707900452 Central AdaptorCentral Adaptor
-
220707900434 Front GridFront Grid
-
230250000759 Torx-Truss Pt K40 X 16Torx-Truss Pt K40 X 16
-
300707900437 LH AdaptorLH Adaptor
-
310707900435 LH GridLH Grid
-
400707900455 RH AdaptorRH Adaptor
-
410707900436 RH GridRH Grid
-
500707900438 Side FlangeSide Flange
-
510293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
600520001619 LH SupportLH Support
-
610520001621 RH SupportRH Support
-
620520001623 Central SupportCentral Support
-
630293450278 InsertInsert
-
640207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
2300707900417 RH Lower DashRH Lower Dash
-
2310250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2320293150089 Tuflok Plastic RivetTuflok Plastic Rivet
