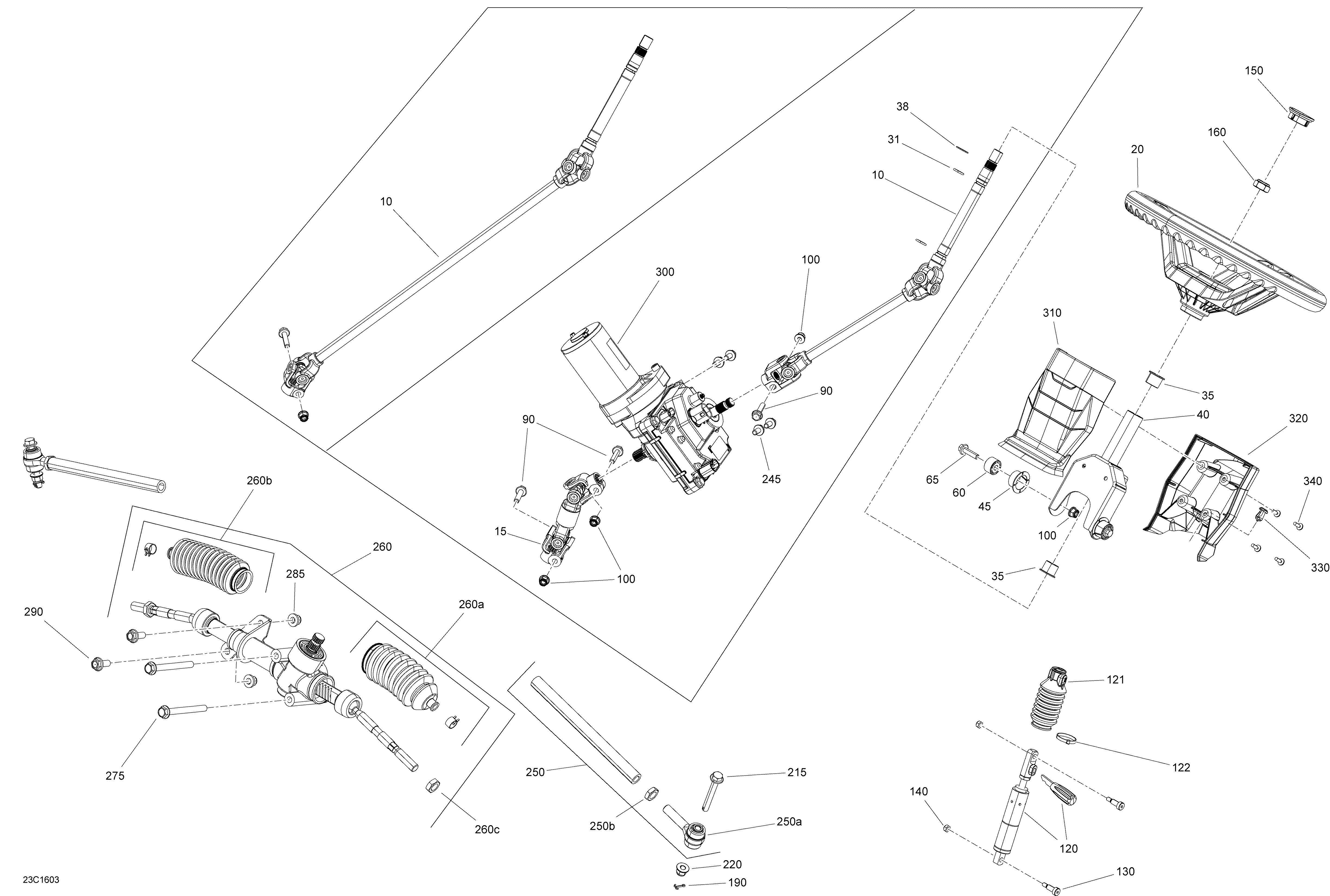

07- Steering для BRP Defender - 2016
-
№АртикулНазвание
-
10709401439 Steering shaft Ass'y. Model Without DPSSteering shaft Ass'y. Model Without DPS
-
10709401440 Steering shaft Ass'y. Model With DPSSteering shaft Ass'y. Model With DPS
-
15709401519 Lower Steering shaft. Model With DPSLower Steering shaft. Model With DPS
-
20709401513 Steering WheelSteering Wheel
-
31293300144 O-RingO-Ring
-
35709401733 BushingBushing
-
38293370110 CirclipCirclip
-
40709401602 Steering SupportSteering Support
-
45709401603 BushingBushing
-
60709401604 BushingBushing
-
65207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
90207683544 Hex. Flanged Screw M8 X 35. Model Without DPSHex. Flanged Screw M8 X 35. Model Without DPS
-
90207683544 Hex. Flanged Screw M8 X 35. Model With DPSHex. Flanged Screw M8 X 35. Model With DPS
-
100233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
100233281414 Hex. Flanged Elastic Nut M8. Model Without DPSHex. Flanged Elastic Nut M8. Model Without DPS
-
100233281414 Hex. Flanged Elastic Nut M8. Model With DPSHex. Flanged Elastic Nut M8. Model With DPS
-
120709400656 Adjustment CylinderAdjustment Cylinder
-
121709401232 Boot Kit, Tube SideBoot Kit, Tube Side
-
122414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
130250000669 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
140232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
150709401514 Steering CapSteering Cap
-
160232511414 Elastic Lock Nut M16Elastic Lock Nut M16
-
190211400017 Cotter PinCotter Pin
-
215250000814 Screw Hex Cap M10 X 75Screw Hex Cap M10 X 75
-
220233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
245207581644 Hex. Flanged Screw M8 X 16, Scotch Grip. Model With DPSHex. Flanged Screw M8 X 16, Scotch Grip. Model With DPS
-
250>250b709401627 Tie Rod Ass'yTie Rod Ass'y
-
250a709401601 Ball JointBall Joint
-
250B715900238 Steering Rode NutSteering Rode Nut
-
260>260c709401509 Rack And PinionRack And Pinion
-
260a715900235 Boot Kit, Pinion SideBoot Kit, Pinion Side
-
260b715900236 Boot Kit, Tube SideBoot Kit, Tube Side
-
260c715900238 Steering Rode NutSteering Rode Nut
-
275230500046 Hex. Screw M10 X 100, Scotch GripHex. Screw M10 X 100, Scotch Grip
-
285233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
290207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
300709401606 Power Steering Ass'y. Model With DPSPower Steering Ass'y. Model With DPS
-
310707900401 Steering Box CoverSteering Box Cover
-
320707900406 Steering Box CoverSteering Box Cover
-
330293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
340250000720 Torx Screw K50 X 16Torx Screw K50 X 16
