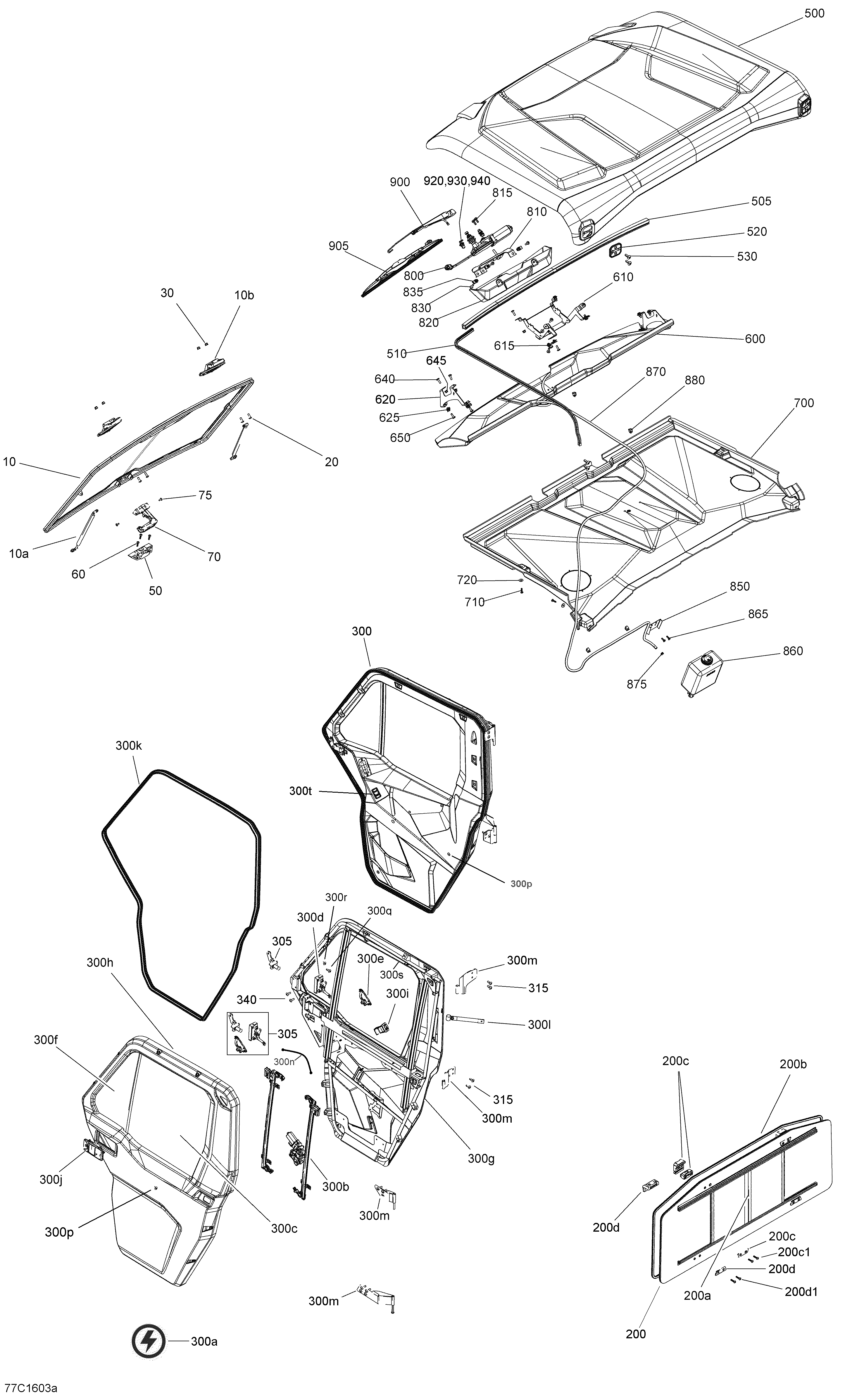

09- Cab - Exterior для BRP Defender - 2016
-
№АртикулНазвание
-
10>10c715002942 Windshield Ass'yWindshield Ass'y
-
10a705800030 ShockShock
-
10b705800082 Windshield HingesWindshield Hinges
-
10c705800158 StudStud
-
20250000874 Torx Truss M8 X 25Torx Truss M8 X 25
-
30233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
50705800008 Handle AnchorHandle Anchor
-
60250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
70705800112 Windshield Handle Ass'yWindshield Handle Ass'y
-
75250000881 Torx Truss M8 X 16Torx Truss M8 X 16
-
200>200d1715002440 Rear Window kitRear Window kit
-
200a705800087 Sliding WindowsSliding Windows
-
200b293250393 SealSeal
-
200c>200c1705800088 Upper Clamp Ass'yUpper Clamp Ass'y
-
200c1250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
200d>200d1705800090 Lower Clamp Ass'yLower Clamp Ass'y
-
200d1250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
300>300t705800002 LH Door Ass'yLH Door Ass'y
-
300>300t705800003 RH Door Ass'yRH Door Ass'y
-
300a705800047 Driver Door HarnessDriver Door Harness
-
300a705800050 Passenger Door HarnessPassenger Door Harness
-
300b705800046 LH Window ActuatorLH Window Actuator
-
300b705800051 RH Window ActuatorRH Window Actuator
-
300c705800016 LH GlassLH Glass
-
300c705800025 RH GlassRH Glass
-
300d703500915 LH Interior Latch KitLH Interior Latch Kit
-
300d703500916 RH Interior Latch KitRH Interior Latch Kit
-
300e703500915 LH Interior Latch KitLH Interior Latch Kit
-
300e703500916 RH Interior Latch KitRH Interior Latch Kit
-
300f705800044 LH GlassLH Glass
-
300f705800052 RH GlassRH Glass
-
300g705800017 LH Liner DoorLH Liner Door
-
300g705800026 RH Liner DoorRH Liner Door
-
300h705800018 LH Outside PanelLH Outside Panel
-
300h705800027 RH Outside PanelRH Outside Panel
-
300i705800048 Window SwitchWindow Switch
-
300j705800015 External Handle. Keys 705800184 sold separatelyExternal Handle. Keys 705800184 sold separately
-
300k705800045 SealSeal
-
300l705800091 Strap 265mm Long. 1rst Version, 3 HolesStrap 265mm Long. 1rst Version, 3 Holes
-
300l705800183 Strap 205mm Long. 2nd version, 2 HolesStrap 205mm Long. 2nd version, 2 Holes
-
300m703500917 LH Hinge KitLH Hinge Kit
-
300m703500918 RH Hinge KitRH Hinge Kit
-
300n715900493 Latch Cable LH 2,4''Latch Cable LH 2,4''
-
300n715900494 Latch Cable RH 2,9''Latch Cable RH 2,9''
-
300n715900504 Latch Cable Interior 28''Latch Cable Interior 28''
-
300p705800156 DartDart
-
300q205484060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
300r233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
300s705800177 U Shape SealU Shape Seal
-
300t715900526 LH Power Window Swith HousingLH Power Window Swith Housing
-
300t715900527 RH Power Window Swith HousingRH Power Window Swith Housing
-
305703500915 LH Interior Latch KitLH Interior Latch Kit
-
305703500916 RH Interior Latch KitRH Interior Latch Kit
-
315250000874 Torx Truss M8 X 25Torx Truss M8 X 25
-
340250000874 Torx Truss M8 X 25Torx Truss M8 X 25
-
500715002430 Roof KitRoof Kit
-
505293250361 GasketGasket
-
510293250393 ExtrusionExtrusion
-
520705800058 Roof Cap. Package XTRoof Cap. Package XT
-
530250000874 Torx Truss M8 X 25. Package XTTorx Truss M8 X 25. Package XT
-
600715003561 Radio SupportRadio Support
-
610705800060 SupportSupport
-
615250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
620705800108 LH SupportLH Support
-
620705800109 RH SupportRH Support
-
625250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
640250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
645233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
650250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
700715003099 Roof Rear Liner AssemblyRoof Rear Liner Assembly
-
710250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
720234062670 Flat Washer, StainlessFlat Washer, Stainless
-
800705010657 Wiper MotorWiper Motor
-
810705800073 Cover Support Ass'yCover Support Ass'y
-
815207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
820705800072 Cover, Wiper MotorCover, Wiper Motor
-
830250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
835250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
850705800086 Windshield Washer Tank SupportWindshield Washer Tank Support
-
860705800039 Windshield Washer TankWindshield Washer Tank
-
865250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
870415080200 Hose, PolyurethaneHose, Polyurethane
-
875414554800 Spring ClampSpring Clamp
-
880414227300 ClipClip
-
900705010656 Wiper ArmWiper Arm
-
905705010655 WiperWiper
-
920705800103 90° Elbow Connector90° Elbow Connector
-
930415080200 Hose, PolyurethaneHose, Polyurethane
-
940275500398 Check ValveCheck Valve
