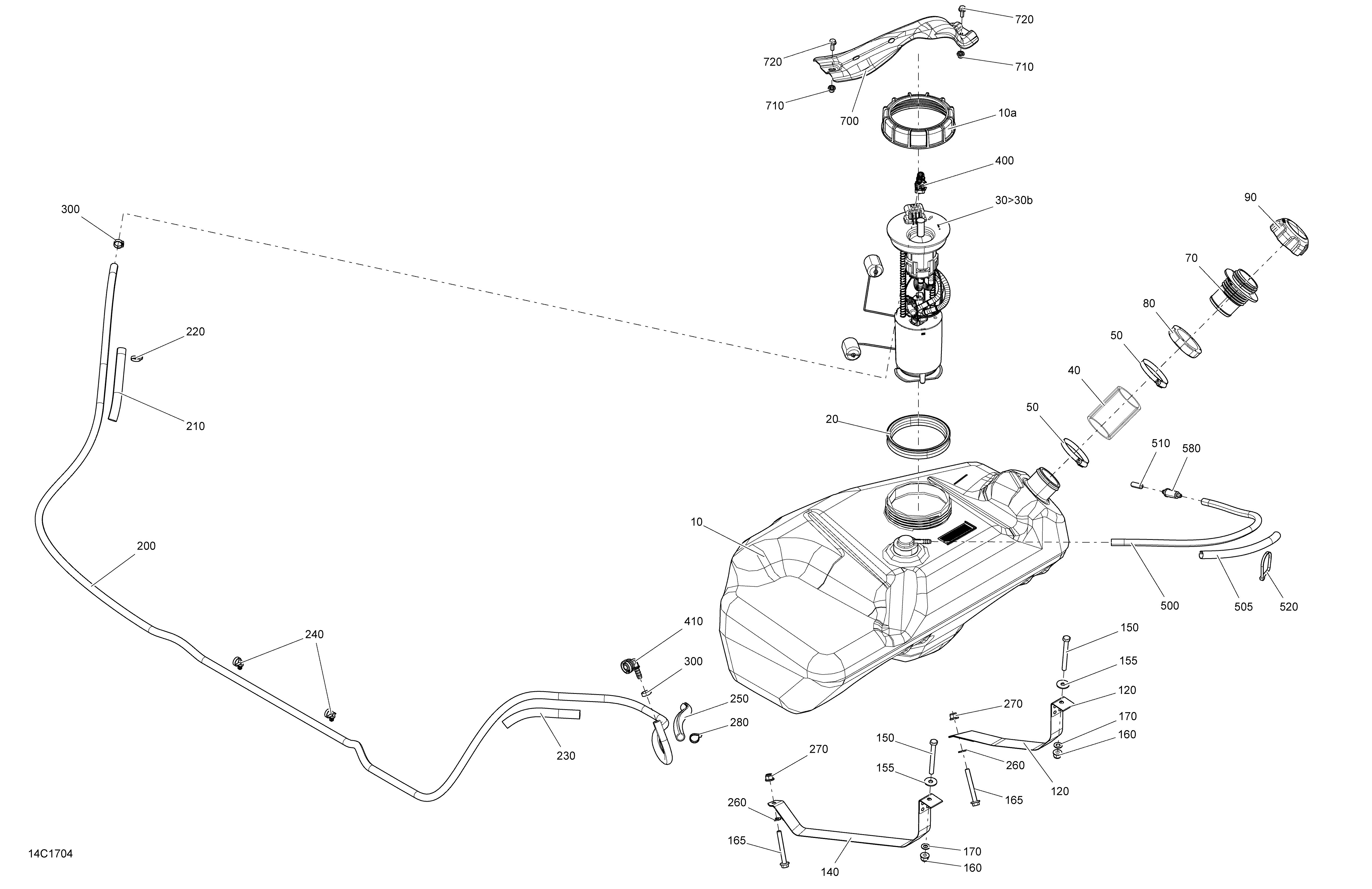

02- Fuel System для BRP 3-Maverick X3 - 2017
-
№АртикулНазвание
-
10709000706 Fuel Tank. Includes 10 TO 10aFuel Tank. Includes 10 TO 10a
-
10a250100062 Special Nut M130Special Nut M130
-
20293250173 GasketGasket
-
30>30b709000836 Fuel Pump. Includes 30 to 30bFuel Pump. Includes 30 to 30b
-
30a270600108 Fuel FilterFuel Filter
-
30b715900424 Fuel SenderFuel Sender
-
40709000748 Filler NeckFiller Neck
-
50293650081 Norma ClampNorma Clamp
-
70709000725 Filler NeckFiller Neck
-
80211100012 Filler Neck Nut, FuelFiller Neck Nut, Fuel
-
90513033816 Fuel CapFuel Cap
-
120709000910 Fuel Tank StrapFuel Tank Strap
-
140709000911 Fuel Tank StrapFuel Tank Strap
-
150207187544 Hex. Screw, M8 X 75Hex. Screw, M8 X 75
-
155234082410 Flat Washer 8 mmFlat Washer 8 mm
-
160233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
165207686544 Hex. Flanged Screw, M8 X 65Hex. Flanged Screw, M8 X 65
-
170234081410 Flat Washer 8 mmFlat Washer 8 mm
-
200709000908 Fuel LineFuel Line
-
210409901800 Tubing 13 mmTubing 13 mm
-
220414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
230409901800 Tubing 13 mmTubing 13 mm
-
240710003168 Christmas Tree Tie-Rap 200 mmChristmas Tree Tie-Rap 200 mm
-
250409901800 Tubing 13 mmTubing 13 mm
-
260234081410 Flat Washer 8 mmFlat Washer 8 mm
-
270233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
280414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
300293650047 Crimp ClampCrimp Clamp
-
400275500921 Quick DisconnectQuick Disconnect
-
410293710105 Elbow Fitting 90°Elbow Fitting 90°
-
500275500549 Hose 1/4''Hose 1/4''
-
505415079900 Tubing 10 mmTubing 10 mm
-
510415080200 Hose, PolyurethaneHose, Polyurethane
-
520293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
580709000330 FilterFilter
-
700707900594 Connector ProtectorConnector Protector
-
710293450274 InsertInsert
-
720207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
