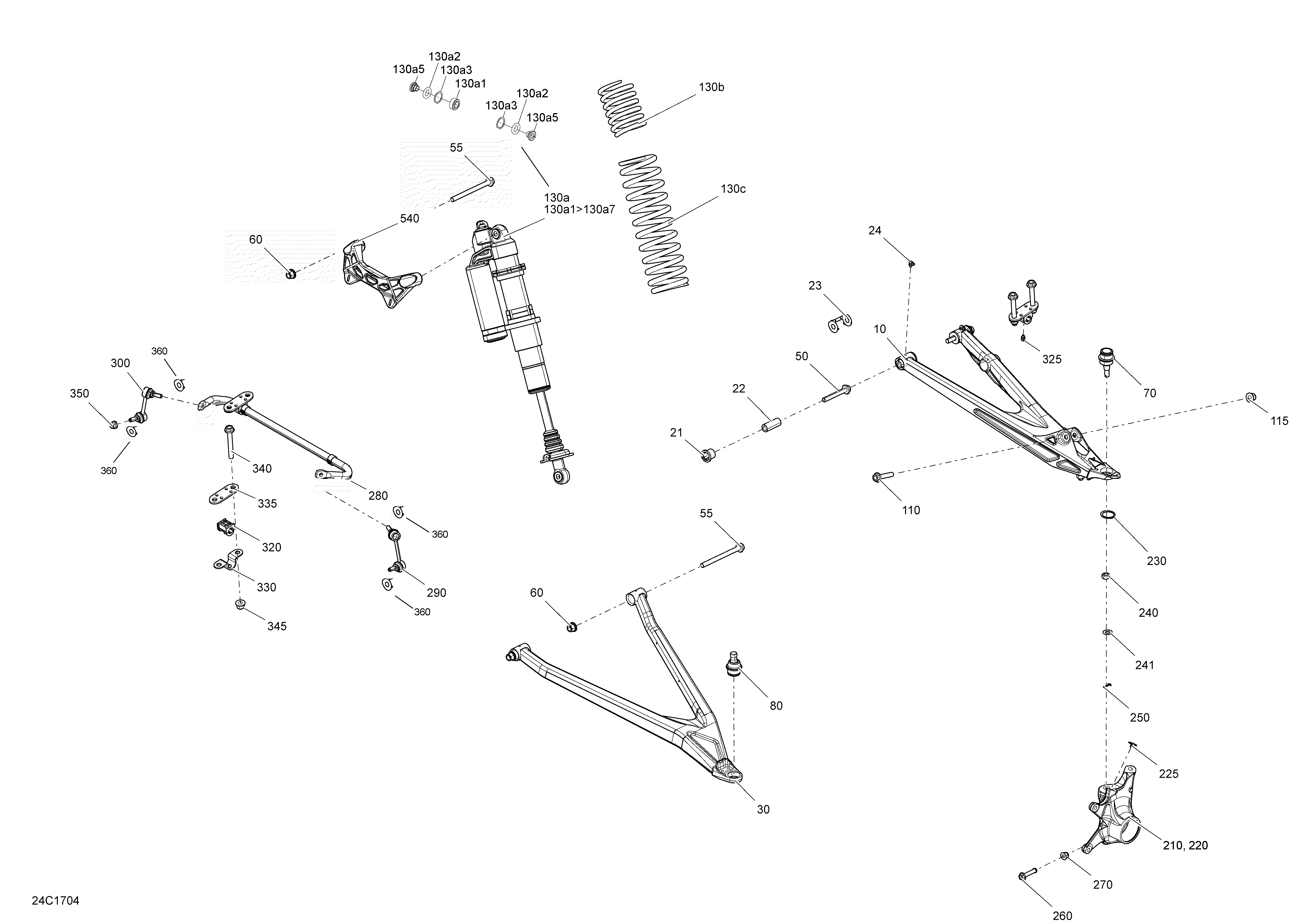

07- Front Suspension для BRP 3-Maverick X3 - 2017
-
№АртикулНазвание
-
10706202700 Black LH Upper Arm. Model X3Black LH Upper Arm. Model X3
-
10706202701 Black RH Upper Arm. Model X3Black RH Upper Arm. Model X3
-
10706202700 Black LH Upper Arm. Model X3 XdsBlack LH Upper Arm. Model X3 Xds
-
10706202701 Black RH Upper Arm. Model X3 XdsBlack RH Upper Arm. Model X3 Xds
-
10706203076 Black LH Upper Arm. Model X3 Xrs BlackBlack LH Upper Arm. Model X3 Xrs Black
-
10706203077 Black RH Upper Arm. Model X3 Xrs BlackBlack RH Upper Arm. Model X3 Xrs Black
-
10706203074 Red LH Upper Arm. Model X3 Xrs GoldRed LH Upper Arm. Model X3 Xrs Gold
-
10706203075 Red RH Upper Arm. Model X3 Xrs GoldRed RH Upper Arm. Model X3 Xrs Gold
-
21706201659 CushionCushion
-
22706202257 Interior BushingInterior Bushing
-
23706202300 Wear PlateWear Plate
-
24293550056 Grease Fitting 90°Grease Fitting 90°
-
30706202919 Black LH Lower Arm. Model X3Black LH Lower Arm. Model X3
-
30706202920 Black RH Lower Arm. Model X3Black RH Lower Arm. Model X3
-
30706202919 Black LH Lower Arm. Model X3 XdsBlack LH Lower Arm. Model X3 Xds
-
30706202920 Black RH Lower Arm. Model X3 XdsBlack RH Lower Arm. Model X3 Xds
-
30706202706 Black LH Lower Arm. Model X3 XrsBlack LH Lower Arm. Model X3 Xrs
-
30706202707 Black RH Lower Arm. Model X3 XrsBlack RH Lower Arm. Model X3 Xrs
-
50250000859 Screw Flange M12 X 85Screw Flange M12 X 85
-
55250000861 Screw Flange M12 X 145Screw Flange M12 X 145
-
60233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
70706202801 Upper Ball JointUpper Ball Joint
-
80706202045 Ball JointBall Joint
-
110250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
115233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
130a706202695 LH Front Shock. Model X3LH Front Shock. Model X3
-
130a706202699 RH Front Shock. Model X3RH Front Shock. Model X3
-
130a706202095 LH Front Shock. Model X3 XdsLH Front Shock. Model X3 Xds
-
130a706202269 RH Front Shock. Model X3 XdsRH Front Shock. Model X3 Xds
-
130a706202856 LH Front Shock. Model X3 Xrs BlackLH Front Shock. Model X3 Xrs Black
-
130a706202857 RH Front Shock. Model X3 Xrs BlackRH Front Shock. Model X3 Xrs Black
-
130a706202380 LH Front Shock. Model X3 Xrs GoldLH Front Shock. Model X3 Xrs Gold
-
130a706202383 RH Front Shock. Model X3 Xrs GoldRH Front Shock. Model X3 Xrs Gold
-
130a1715900337 Spherical BearingSpherical Bearing
-
130a2715900338 O-Ring BushingO-Ring Bushing
-
130a3715900480 CirclipCirclip
-
130a4715900481 Reducer. Model X3 XrsReducer. Model X3 Xrs
-
130a5715900420 Interior bushing. Model X3 XdsInterior bushing. Model X3 Xds
-
130a6715900482 Bearing. Model X3 XrsBearing. Model X3 Xrs
-
130a7715900481 Reducer. Model X3Reducer. Model X3
-
130b706203032 Deep Black Front Spring. Model X3Deep Black Front Spring. Model X3
-
130b706203032 Deep Black Front Spring. Model X3 XdsDeep Black Front Spring. Model X3 Xds
-
130b706203056 Deep Black Front Spring. Model X3 Xrs BlackDeep Black Front Spring. Model X3 Xrs Black
-
130b706203033 Red Spring. Model X3 Xrs GoldRed Spring. Model X3 Xrs Gold
-
130c706202180 Black Spring. Model X3Black Spring. Model X3
-
130c706202180 Black Spring. Model X3 XdsBlack Spring. Model X3 Xds
-
130c706202696 Black Spring. Model X3 Xrs BlackBlack Spring. Model X3 Xrs Black
-
130c706202381 Red Spring. Model X3 Xrs GoldRed Spring. Model X3 Xrs Gold
-
210706202759 LH KnuckleLH Knuckle
-
220706202760 RH KnuckleRH Knuckle
-
225706202502 Wear PlateWear Plate
-
230293370035 CirclipCirclip
-
240250100099 Nut M12Nut M12
-
241250200086 Flat WasherFlat Washer
-
250211400017 Cotter PinCotter Pin
-
260207605044 Hex. Flanged Screw M10 X 50Hex. Flanged Screw M10 X 50
-
270233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
280706202454 Sway BarSway Bar
-
290706202764 Link Stabilizer Bar LHLink Stabilizer Bar LH
-
300706202765 Link Stabilizer Bar RHLink Stabilizer Bar RH
-
320706202849 BushingBushing
-
325293550056 Grease Fitting 90°Grease Fitting 90°
-
330706202460 ClampClamp
-
335706202551 Plate SupportPlate Support
-
340250000876 Hex. Flanged Screw M12 X 95Hex. Flanged Screw M12 X 95
-
345233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
350233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
360234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
540706202708 Black Link. Model X3Black Link. Model X3
-
540706202708 Black Link. Model X3 XdsBlack Link. Model X3 Xds
-
540706202708 Black Link. Model X3 Xrs BlackBlack Link. Model X3 Xrs Black
-
540706202709 Red Link. Model X3 Xrs GoldRed Link. Model X3 Xrs Gold
