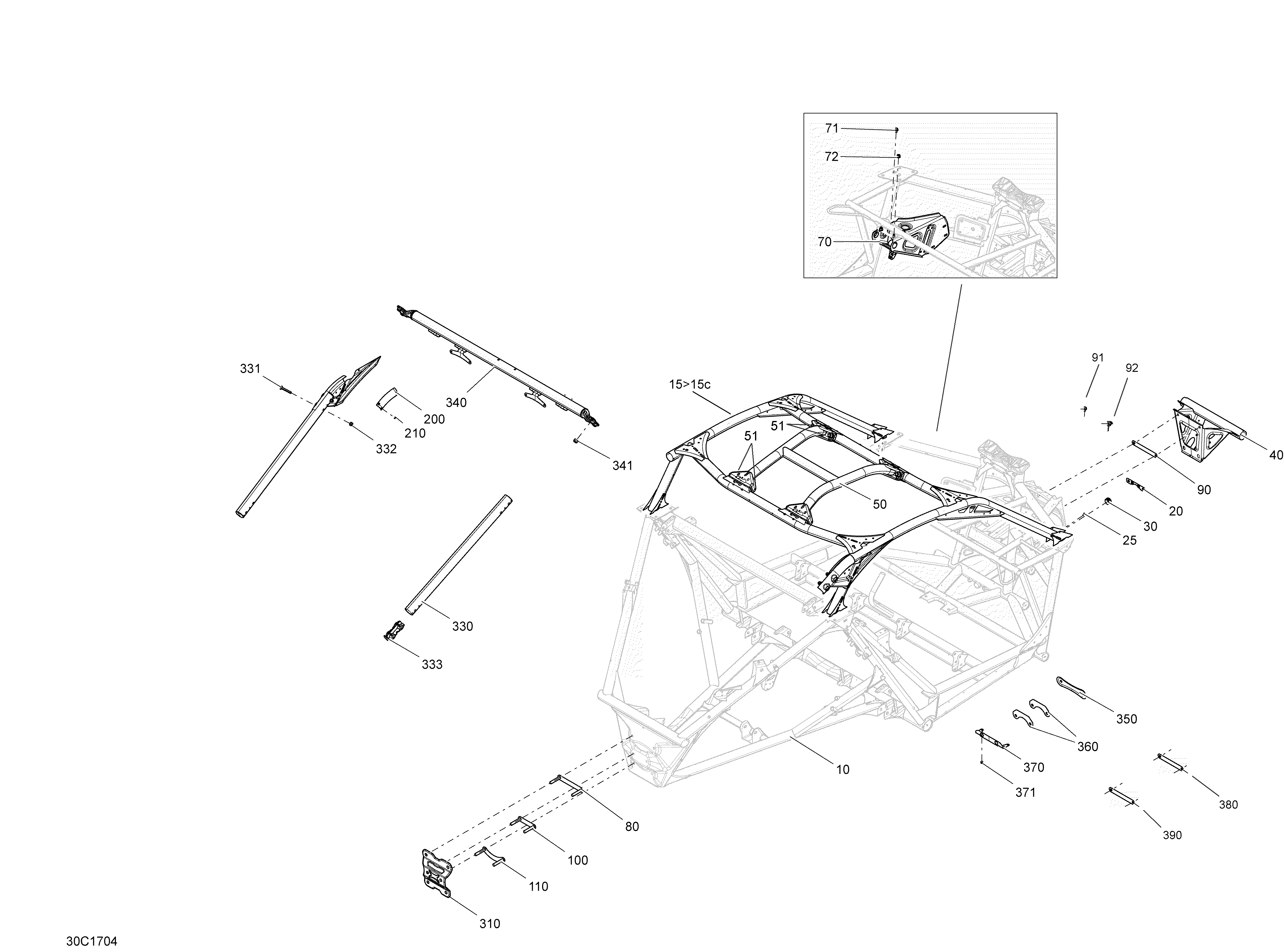

09- Frame для BRP 3-Maverick X3 - 2017
-
№АртикулНазвание
-
10>15c715004061 Black Frame Kit. Except Model Gold Built in 2016. Includes 10 to 15cBlack Frame Kit. Except Model Gold Built in 2016. Includes 10 to 15c
-
10>15c715004465 Black Frame Kit. Except Model Gold Built in 2017. Includes 10 to 15cBlack Frame Kit. Except Model Gold Built in 2017. Includes 10 to 15c
-
10>15c715004190 Red Frame Kit. Model Gold Built in 2016. Includes 10 to 15cRed Frame Kit. Model Gold Built in 2016. Includes 10 to 15c
-
10>15c715004466 Red Frame Kit. Model Gold Built in 2017. Includes 10 to 15cRed Frame Kit. Model Gold Built in 2017. Includes 10 to 15c
-
15>15c715004060 Black Cage Kit. Except Model Gold Built in 2016. Includes 15 to 15cBlack Cage Kit. Except Model Gold Built in 2016. Includes 15 to 15c
-
15>15c715004463 Black Cage Kit. Except Model Gold Built in 2017. Includes 15 to 15cBlack Cage Kit. Except Model Gold Built in 2017. Includes 15 to 15c
-
15>15c715004189 Red Cage Kit. Model Gold Built in 2016. Includes 15 to 15cRed Cage Kit. Model Gold Built in 2016. Includes 15 to 15c
-
15>15c715004464 Red Cage Kit. Model Gold Built in 2017. Includes 15 to 15cRed Cage Kit. Model Gold Built in 2017. Includes 15 to 15c
-
15a250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
15b207523036 Hex. Flanged Screw S.Grip M12 X 30Hex. Flanged Screw S.Grip M12 X 30
-
15c233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
20705205897 Front PlateFront Plate
-
25207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
30706200308 Plug 1-1/4''Plug 1-1/4''
-
40705205746 Black Front Bumper. Except Model GoldBlack Front Bumper. Except Model Gold
-
40705205747 Red Front Bumper. Model GoldRed Front Bumper. Model Gold
-
50705205748 Black Cage Insert. Except Model Gold Built in 2016Black Cage Insert. Except Model Gold Built in 2016
-
50705206774 Black Cage Insert. Except Model Gold Built in 2017Black Cage Insert. Except Model Gold Built in 2017
-
50705205749 Red Cage Insert. Model Gold Built in 2016Red Cage Insert. Model Gold Built in 2016
-
50705206771 Red Cage Insert. Model Gold Built in 2017Red Cage Insert. Model Gold Built in 2017
-
51233221466 Nut M12Nut M12
-
70705205476 DPS SupportDPS Support
-
71207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
72233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
80705206066 Rear Upper PlateRear Upper Plate
-
90705205564 Stifner PlateStifner Plate
-
90705205564 Stifner PlateStifner Plate
-
91207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
92233261494 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
100705206070 Rear Mid PlateRear Mid Plate
-
110705206073 Rear Lower PlateRear Lower Plate
-
200705205926 Black LH Link Plate. Except Model GoldBlack LH Link Plate. Except Model Gold
-
200705205929 Red LH Link Plate. Model GoldRed LH Link Plate. Model Gold
-
210390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
310705205750 Rear PlateRear Plate
-
330705205751 Black- Rear Mount. Except Model GoldBlack- Rear Mount. Except Model Gold
-
330705205752 Red- Rear Mount. Model GoldRed- Rear Mount. Model Gold
-
331250000901 Torx Truss M8 X 65Torx Truss M8 X 65
-
332250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
333705205634 SleeveSleeve
-
340705205268 Belt BarBelt Bar
-
341232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
350705205294 Upper Link ArmUpper Link Arm
-
360705205295 Lower Link ArmLower Link Arm
-
370706202491 SupportSupport
-
371390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
380705206069 Front Upper PlateFront Upper Plate
-
390705206511 Upper Plate. Model XRSDPSUpper Plate. Model XRSDPS
