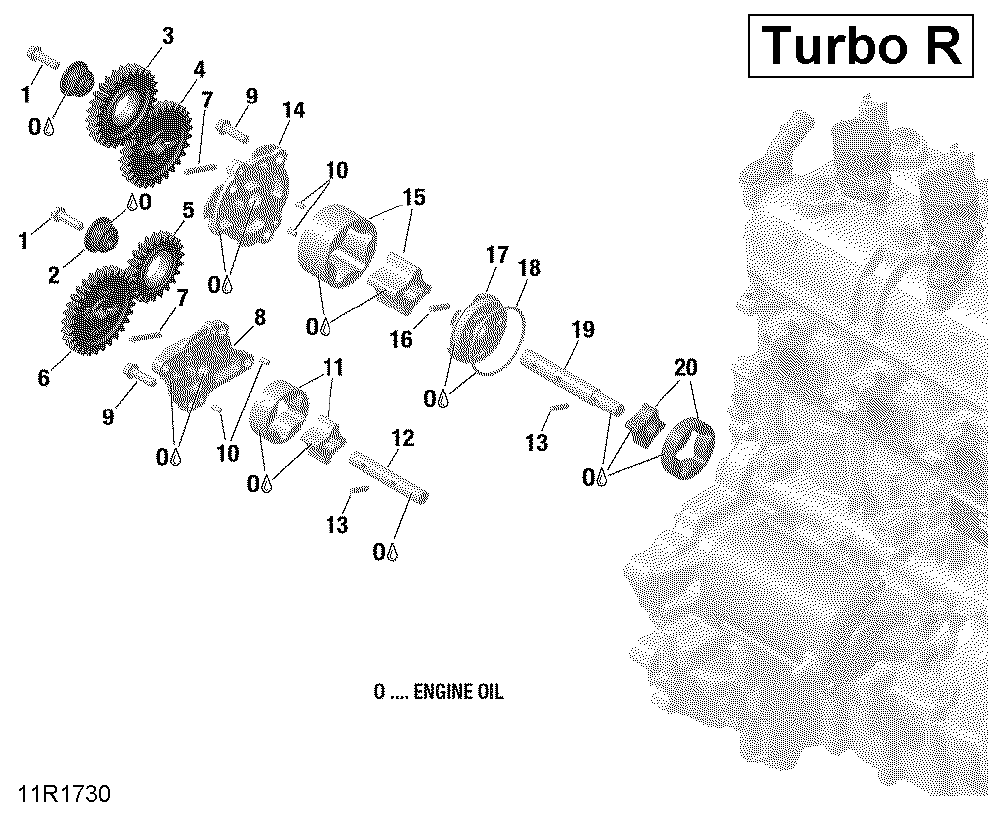

02- Oil Pump для BRP 3-Maverick X3 - 2017
-
№АртикулНазвание
-
1420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
2420947394 SpacerSpacer
-
3420835321 Idle Gear, 26 TeethIdle Gear, 26 Teeth
-
4420834887 Oil Pump Gear, 28 TeethOil Pump Gear, 28 Teeth
-
5420835400 Gear 22 TeethsGear 22 Teeths
-
6420834882 Oil Pump Gear, 29 TeethOil Pump Gear, 29 Teeth
-
7420232431 Needle PinNeedle Pin
-
8420911080 Oil Pump CoverOil Pump Cover
-
9420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
10420929075 Needle PinNeedle Pin
-
11420956278 Oil Pump RotorOil Pump Rotor
-
12420820122 Oil Pump ShaftOil Pump Shaft
-
13420232731 Needle PinNeedle Pin
-
14420611980 Oil Pump CoverOil Pump Cover
-
15420256831 Oil Pump RotorOil Pump Rotor
-
16420632221 Needle PinNeedle Pin
-
17420611985 Oil Pump CoverOil Pump Cover
-
18420631830 O-RingO-Ring
-
19420837917 Oil Pump ShaftOil Pump Shaft
-
20420256348 Oil Pump Rotor SetOil Pump Rotor Set
