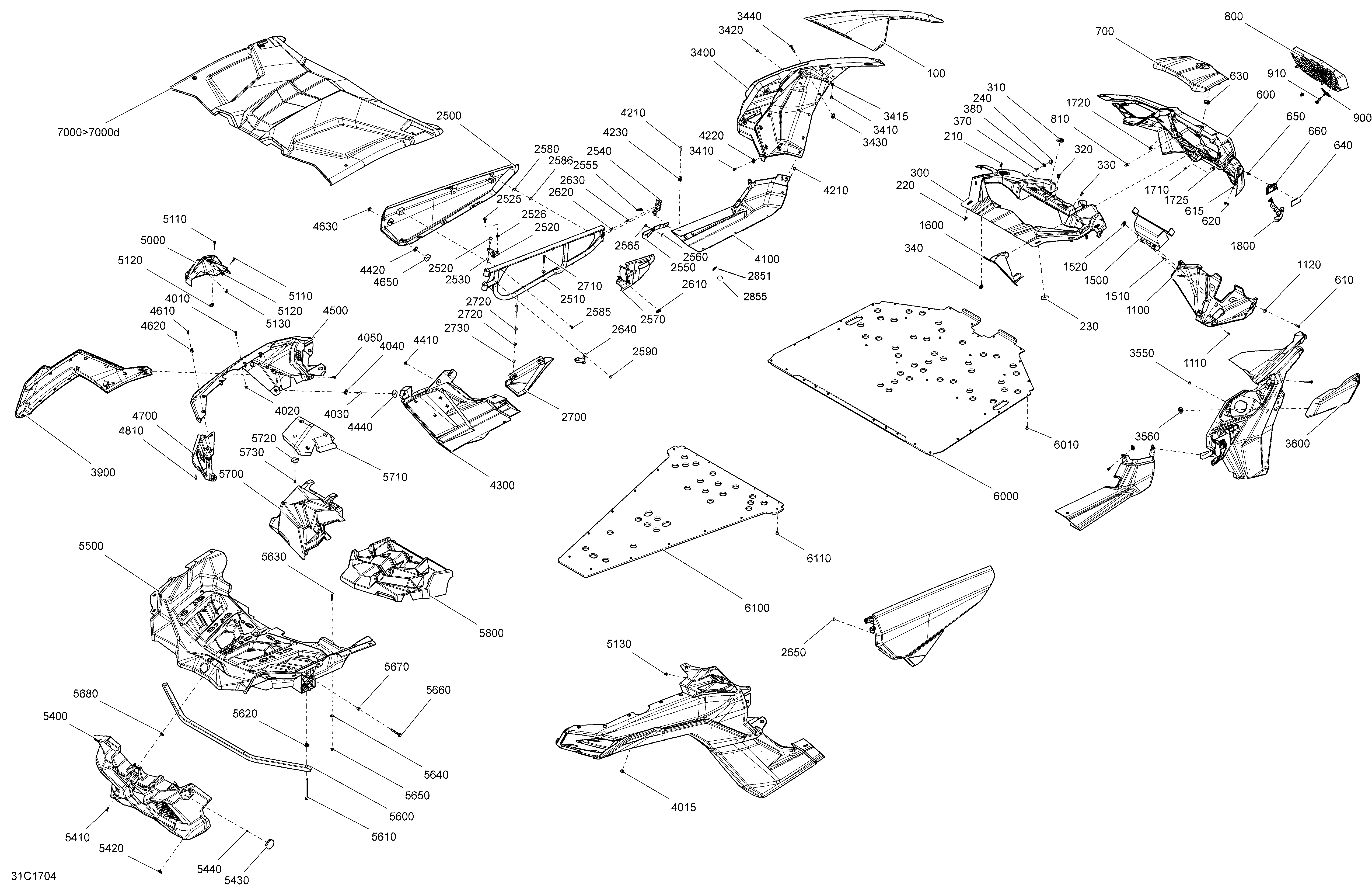

09- Body And Accessories для BRP 3-Maverick X3 - 2017
-
№АртикулНазвание
-
100705011087 Black LH Front Fender. Model BlackBlack LH Front Fender. Model Black
-
100705011091 Black RH Front Fender. Model BlackBlack RH Front Fender. Model Black
-
100705011092 Gold LH Front Fender. Model GoldGold LH Front Fender. Model Gold
-
100705011093 Gold RH Front Fender. Model GoldGold RH Front Fender. Model Gold
-
100705009505 White LH Front Fender. Model WhiteWhite LH Front Fender. Model White
-
100705009506 White RH Front Fender. Model WhiteWhite RH Front Fender. Model White
-
100705011084 Yellow LH Front Fender. Model YellowYellow LH Front Fender. Model Yellow
-
100705011086 Yellow RH Front Fender. Model YellowYellow RH Front Fender. Model Yellow
-
210705010721 ClipClip
-
220517302785 ClipClip
-
230705003841 Support PlateSupport Plate
-
240250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
300705010671 Central HoodCentral Hood
-
310705010718 GrommetGrommet
-
320293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
330250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
340250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
370250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
380234062670 Flat Washer, StainlessFlat Washer, Stainless
-
600705009508 Front FaciaFront Facia
-
610250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
615234062670 Flat Washer, StainlessFlat Washer, Stainless
-
620250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
630517303756 GrommetGrommet
-
640520000271 Amber ReflectorAmber Reflector
-
650250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
660705011806 LH Reflector SupportLH Reflector Support
-
660705011814 RH Reflector SupportRH Reflector Support
-
700705010277 White Facia cover. Model WhiteWhite Facia cover. Model White
-
700705011094 Yellow Facia cover. Model YellowYellow Facia cover. Model Yellow
-
700705011095 Black Facia cover. Model BlackBlack Facia cover. Model Black
-
700705011097 Gold Facia cover. Model GoldGold Facia cover. Model Gold
-
800705010443 Front Radiator GrillFront Radiator Grill
-
810517302785 ClipClip
-
900705010885 Logo. Except Model X3Logo. Except Model X3
-
910250000725 Screw M4 X 16. Except Model X3Screw M4 X 16. Except Model X3
-
1100705009978 Front DeflectorFront Deflector
-
1110293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
1120250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
1500705010742 Lower Radiator deflectorLower Radiator deflector
-
1510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1520250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
1600705010626 LH Radiator deflectorLH Radiator deflector
-
1600705010627 RH Radiator deflectorRH Radiator deflector
-
1710250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1720517302785 ClipClip
-
1725250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
1800705010628 LH Light CoverLH Light Cover
-
1800705010629 RH Light CoverRH Light Cover
-
2500705011115 Black LH Door Panel. Model BlackBlack LH Door Panel. Model Black
-
2500705011116 Black RH Door Panel. Model BlackBlack RH Door Panel. Model Black
-
2500705011117 Gold LH Door Panel. Model GoldGold LH Door Panel. Model Gold
-
2500705011118 Gold RH Door Panel. Model GoldGold RH Door Panel. Model Gold
-
2500705010067 White LH Door Panel. Model WhiteWhite LH Door Panel. Model White
-
2500705010068 White RH Door Panel. Model WhiteWhite RH Door Panel. Model White
-
2500705011113 Yellow LH Door Panel. Model YellowYellow LH Door Panel. Model Yellow
-
2500705011114 Yellow RH Door Panel. Model YellowYellow RH Door Panel. Model Yellow
-
2510705011344 Black LH Door Frame. Except Model GoldBlack LH Door Frame. Except Model Gold
-
2510705011345 Black RH Door Frame. Except Model GoldBlack RH Door Frame. Except Model Gold
-
2510705011346 Red LH Door Frame. Model GoldRed LH Door Frame. Model Gold
-
2510705011347 Red RH Door Frame. Model GoldRed RH Door Frame. Model Gold
-
2525207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2526234081430 Flat Washer M8Flat Washer M8
-
2530234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
2540705012183 LH LatchLH Latch
-
2540705012184 RH LatchRH Latch
-
2550293850126 BeltBelt
-
2560293730070 Belt StopperBelt Stopper
-
2565293730072 Belt StopperBelt Stopper
-
2570705010734 LH Latch CoverLH Latch Cover
-
2570705010735 RH Latch CoverRH Latch Cover
-
2580250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
2585250000721 Torx ScrewTorx Screw
-
2586234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2590293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
2610250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
2620250000721 Torx Screw. LH SideTorx Screw. LH Side
-
2620250000722 Torx Screw M6 X 20. RH SideTorx Screw M6 X 20. RH Side
-
2630234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2640293850129 Door BeltDoor Belt
-
2650293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
2700705010732 LH Lower Door Panel. Except Model X3 XrsLH Lower Door Panel. Except Model X3 Xrs
-
2700705010733 RH Lower Door Panel. Except Model X3 XrsRH Lower Door Panel. Except Model X3 Xrs
-
2710250000749 Torx Truss Screw M6 X 50. LH Side, Except Model X3 XrsTorx Truss Screw M6 X 50. LH Side, Except Model X3 Xrs
-
2710250000868 Torx Truss M6 X 50. RH Side, Except Model X3 XrsTorx Truss M6 X 50. RH Side, Except Model X3 Xrs
-
2720234062670 Flat Washer, Stainless. Except Model X3 XrsFlat Washer, Stainless. Except Model X3 Xrs
-
2730233261466 Hex. Flanged Elastic Nut M6. Except Model X3 XrsHex. Flanged Elastic Nut M6. Except Model X3 Xrs
-
2851293150108 Pop Rivet 3/16Pop Rivet 3/16
-
2855293900112 BushingBushing
-
3400715004073 LH Front Lateral PanelLH Front Lateral Panel
-
3400715004074 RH Front Lateral PanelRH Front Lateral Panel
-
3410250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3415233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3420293450274 InsertInsert
-
3430250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
3440250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
3550233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
3560517303756 GrommetGrommet
-
3600705010334 RH Side Panel CoverRH Side Panel Cover
-
3900705009511 LH Rear Fender DeflectorLH Rear Fender Deflector
-
3900705009512 RH Rear Fender DeflectorRH Rear Fender Deflector
-
4010250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4015234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4020233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
4030250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
4040250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
4050250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
4100705009513 LH Central Lateral PanelLH Central Lateral Panel
-
4100705009514 RH Central Lateral PanelRH Central Lateral Panel
-
4210250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4220250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
4230705010872 InsertInsert
-
4300705010676 LH Rear Lateral PanelLH Rear Lateral Panel
-
4300705010677 RH Rear Lateral PanelRH Rear Lateral Panel
-
4410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4420250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
4440705003841 Support PlateSupport Plate
-
4500705009515 White LH Rear Fender. Model WhiteWhite LH Rear Fender. Model White
-
4500705011119 Yellow LH Rear Fender. Model YellowYellow LH Rear Fender. Model Yellow
-
4500705011121 Black LH Rear Fender. Model BlackBlack LH Rear Fender. Model Black
-
4500705011123 Gold LH Rear Fender. Model GoldGold LH Rear Fender. Model Gold
-
4500705009516 White RH Rear Fender. Model WhiteWhite RH Rear Fender. Model White
-
4500705011120 Yellow RH Rear Fender. Model YellowYellow RH Rear Fender. Model Yellow
-
4500705011122 Black RH Rear Fender. Model BlackBlack RH Rear Fender. Model Black
-
4500705011124 Gold RH Rear Fender. Model GoldGold RH Rear Fender. Model Gold
-
4610250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4620705010872 InsertInsert
-
4630250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
4650705003841 Support PlateSupport Plate
-
4700705010686 LH Rear Lateral CoverLH Rear Lateral Cover
-
4700705010687 RH Rear Lateral CoverRH Rear Lateral Cover
-
4810250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
5000705010335 LH Rear Cage TrimLH Rear Cage Trim
-
5000705010336 RH Rear Cage TrimRH Rear Cage Trim
-
5110250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5120250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
5130293650268 ClipClip
-
5400705010001 Rear FaciaRear Facia
-
5410250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5420250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
5430705011221 Red ReflectorRed Reflector
-
5440233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
5500715004063 Luggage RackLuggage Rack
-
5600705010773 E-Coat Luggage Rack TubeE-Coat Luggage Rack Tube
-
5610230683034 Hex. Flanged Screw M8 X 130Hex. Flanged Screw M8 X 130
-
5620269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
5630250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
5640234062670 Flat Washer, StainlessFlat Washer, Stainless
-
5650233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
5660207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
5670233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
5680250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
5700705010288 Air Intake CoverAir Intake Cover
-
5710705011293 Foam Air Intake CoverFoam Air Intake Cover
-
5720705003841 Support PlateSupport Plate
-
5730250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
5800705010286 Rear CoverRear Cover
-
6000705010390 Central Skid Plate. Except Model X3 XrsCentral Skid Plate. Except Model X3 Xrs
-
6000705012362 Central Skid Plate. Model X3 XrsCentral Skid Plate. Model X3 Xrs
-
6010293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
6100705010391 Rear Skid Plate. Except Model X3 XrsRear Skid Plate. Except Model X3 Xrs
-
6100705012363 Rear Skid Plate. Model X3 XrsRear Skid Plate. Model X3 Xrs
-
6110293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
2520705011187 Door SupportDoor Support
-
7000>7000d715002902 Sport Roof Kit. Model X3 Xrs. Includes 7000 to 7000dSport Roof Kit. Model X3 Xrs. Includes 7000 to 7000d
-
7000a704904566 CAN-AM Decal. Model X3 XrsCAN-AM Decal. Model X3 Xrs
-
7000b715003815 Quarter Turn Service Kit (if applicable). Model X3 XrsQuarter Turn Service Kit (if applicable). Model X3 Xrs
-
7000b1250000792 Torx Screw M5 X 20. Model X3 XrsTorx Screw M5 X 20. Model X3 Xrs
-
7000b2250200164 Flat washer M6. Model X3 XrsFlat washer M6. Model X3 Xrs
-
7000b3705011055 Urethane Washer. Model X3 XrsUrethane Washer. Model X3 Xrs
-
7000b4233251494 Elastic Flanged Nut M5. Model X3 XrsElastic Flanged Nut M5. Model X3 Xrs
-
7000c293250424 Seal. Model X3 XrsSeal. Model X3 Xrs
-
7000d705011280 Strap. Model X3 XrsStrap. Model X3 Xrs
