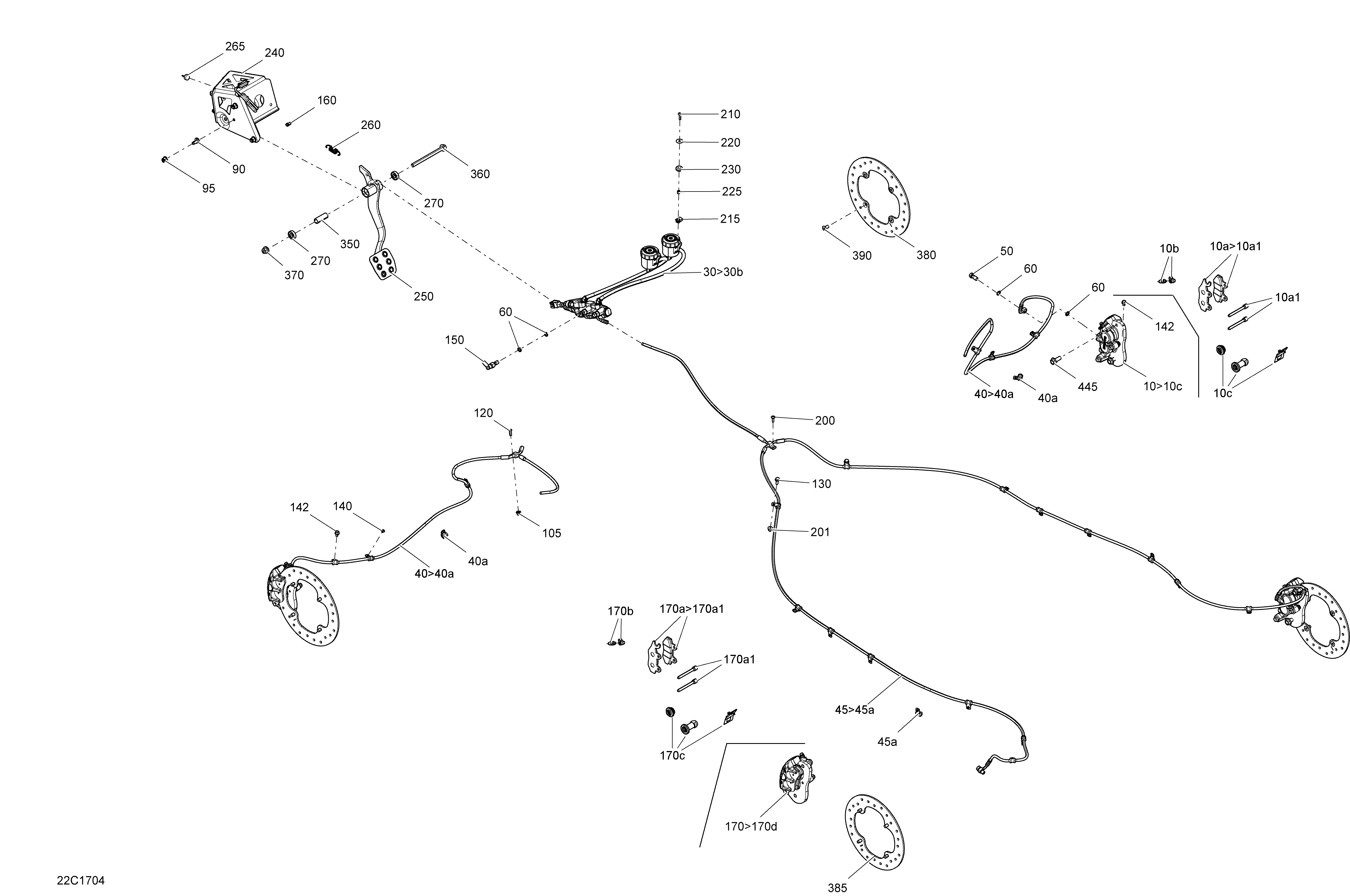

06- Brakes для BRP 3-Maverick X3 - 2017

№

Артикул

Название
10>10c

705601462 Front Caliper LH. Includes 10 to 10c

Front Caliper LH. Includes 10 to 10c

113 050 ₽
10>10c

705601463 Front Caliper RH. Includes 10 to 10c

Front Caliper RH. Includes 10 to 10c

23 230 ₽
10a>10a1

715900379 Brake Pads LH. Includes 10a to 10a1

Brake Pads LH. Includes 10a to 10a1

53 690 ₽
10a>10a1

715900380 Brake Pads RH. Includes 10a to 10a1

Brake Pads RH. Includes 10a to 10a1

53 690 ₽
10a1

715900384 Pin Kit

Pin Kit

3 540 ₽
10b

705601017 Bleeding Screw

Bleeding Screw

2 480 ₽
10c

715900385 Cap Spring Kit

Cap Spring Kit

6 690 ₽
30>30b

705601549 Master Cylinder. Includes 30 to 30b

Master Cylinder. Includes 30 to 30b

23 000 ₽
30a

705601020 Oil Tank

Oil Tank

13 410 ₽
30b

705601019 Housing Oil Hose

Housing Oil Hose

1 320 ₽
40>40a

705601492 Front Flexible Hose. Model X3, X3 Xds. Includes 40 to 40a

Front Flexible Hose. Model X3, X3 Xds. Includes 40 to 40a

64 650 ₽
40a

715900250 Hose Clip. Model X3, X3 Xds

Hose Clip. Model X3, X3 Xds

220 ₽
40

705601495 Front Flexible Hose. Model X3 Xrs

Front Flexible Hose. Model X3 Xrs

17 590 ₽
45>45a

705601493 Rear Flexible Hose. Model X3, X3 Xds. Includes 45 to 45a

Rear Flexible Hose. Model X3, X3 Xds. Includes 45 to 45a

67 970 ₽
45a

715900250 Hose Clip. Model X3, X3 Xds

Hose Clip. Model X3, X3 Xds

220 ₽
45

705601496 Rear Flexible Hose. Model X3 Xrs

Rear Flexible Hose. Model X3 Xrs

18 040 ₽
50

705600609 Banjo Bolt

Banjo Bolt

390 ₽
60

705600310 Copper Washer

Copper Washer

2 660 ₽
90

207682534 Hex. Flanged Screw M8 X 25

Hex. Flanged Screw M8 X 25

740 ₽
95

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

490 ₽
105

293450274 Insert

Insert

570 ₽
120

235661644 Torx Screw M6 X 16

Torx Screw M6 X 16

490 ₽
130

207661644 Hex. Flanged Screw M6 X 16

Hex. Flanged Screw M6 X 16

270 ₽
140

390402200 Pop Rivet 3/16''

Pop Rivet 3/16''

120 ₽
142

210261040 Hex. Flanged Screw M6 X 10

Hex. Flanged Screw M6 X 10

140 ₽
150

705601250 Brake Switch

Brake Switch

13 210 ₽
160

293750002 Tie-Rap 142 mm

Tie-Rap 142 mm

380 ₽
170>170d

705601514 Rear Caliper LH. Includes 170 to 170d

Rear Caliper LH. Includes 170 to 170d

27 030 ₽
170>170d

705601515 Rear Caliper RH. Includes 170 to 170d

Rear Caliper RH. Includes 170 to 170d

27 030 ₽
170a>170a1

715900386 Brake Pads LH. Includes 170a to 170a1

Brake Pads LH. Includes 170a to 170a1

53 690 ₽
170a>170a1

715900387 Brake Pads RH. Includes 170a to 170a1

Brake Pads RH. Includes 170a to 170a1

53 690 ₽
170a1

715900384 Pin Kit

Pin Kit

3 540 ₽
170b

705601017 Bleeding Screw

Bleeding Screw

2 480 ₽
170c

715900385 Cap Spring Kit

Cap Spring Kit

6 690 ₽
200

250000720 Torx Screw K50 X 16

Torx Screw K50 X 16

600 ₽
201

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

490 ₽
210

250000724 Torx Screw M5 X 20

Torx Screw M5 X 20

600 ₽
215

250000079 Panel Nut M5 X 0.8

Panel Nut M5 X 0.8

850 ₽
220

224060201 Flat Washer

Flat Washer

420 ₽
225

293900112 Bushing

Bushing

3 540 ₽
230

414036300 Grommet

Grommet

1 470 ₽
240

705205301 Brake Support Plate

Brake Support Plate

5 040 ₽
250

705601453 Brake Pedal

Brake Pedal

5 010 ₽
260

705600792 Brake Pedal Spring

Brake Pedal Spring

940 ₽
265

708000759 Rubber Stopper

Rubber Stopper

1 540 ₽
270

705600458 Bearing

Bearing

1 810 ₽
350

705601275 Bushing

Bushing

1 510 ₽
360

230603046 Flanged Hex. Screw, M10 X 130

Flanged Hex. Screw, M10 X 130

2 600 ₽
370

233201436 Flanged Elastic Nut M10

Flanged Elastic Nut M10

740 ₽
380

705601533 Brake Disc

Brake Disc

4 370 ₽
385

705601376 Brake Disc

Brake Disc

4 370 ₽
390

235381646 Torx Screw M8 X 16, Scotch Grip

Torx Screw M8 X 16, Scotch Grip

900 ₽
445

207502546 Hex. Flanged Screw M10 X 25

Hex. Flanged Screw M10 X 25

740 ₽
