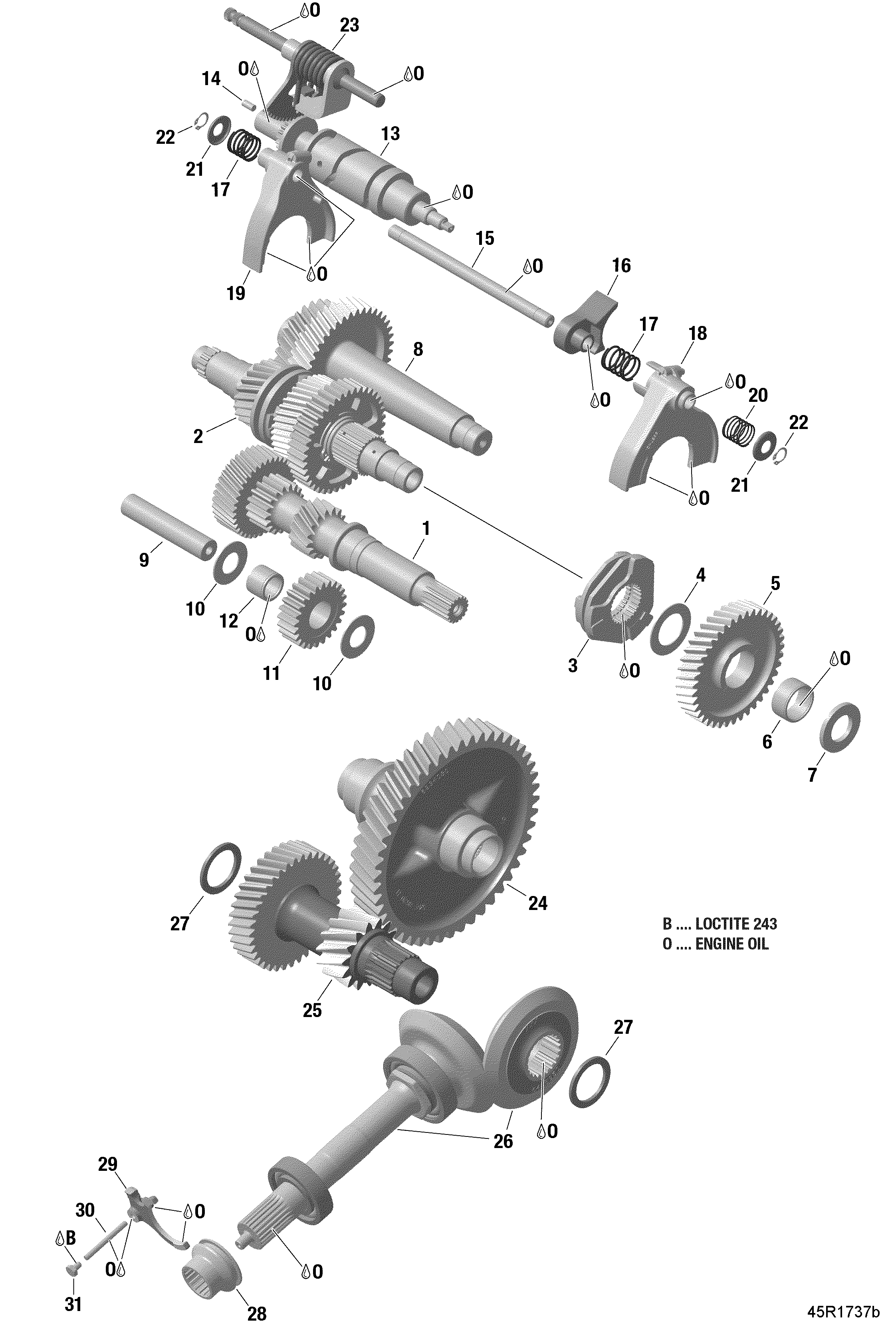

05- Gear Box - 2 для BRP 3-Maverick X3 - 2017
-
№АртикулНазвание
-
1420637506 Counter ShaftCounter Shaft
-
2>6420637770 Main ShaftMain Shaft
-
7420427082 Thrust WasherThrust Washer
-
8420637546 Intermediate ShaftIntermediate Shaft
-
9>12420435875 Intermediate Gear Ass'yIntermediate Gear Ass'y
-
13>14420657456 Shifting DrumShifting Drum
-
14420932780 Needle PinNeedle Pin
-
15420657430 Fork SpindleFork Spindle
-
16420657476 Shifting BlockShifting Block
-
17420638077 SpringSpring
-
18420657537 Gearshift ForkGearshift Fork
-
19420657427 Gearshift ForkGearshift Fork
-
20420638072 SpringSpring
-
21420427140 Spring SeatSpring Seat
-
22420945470 Retaining RingRetaining Ring
-
23420637569 Shift Shaft With GearShift Shaft With Gear
-
24420934080 Drive Gear 48TDrive Gear 48T
-
28420257673 Shifting SleeveShifting Sleeve
-
29420257606 Shifting ForkShifting Fork
-
30420832650 Needle PinNeedle Pin
-
31420841581 Hex Screw M6 X 8Hex Screw M6 X 8
