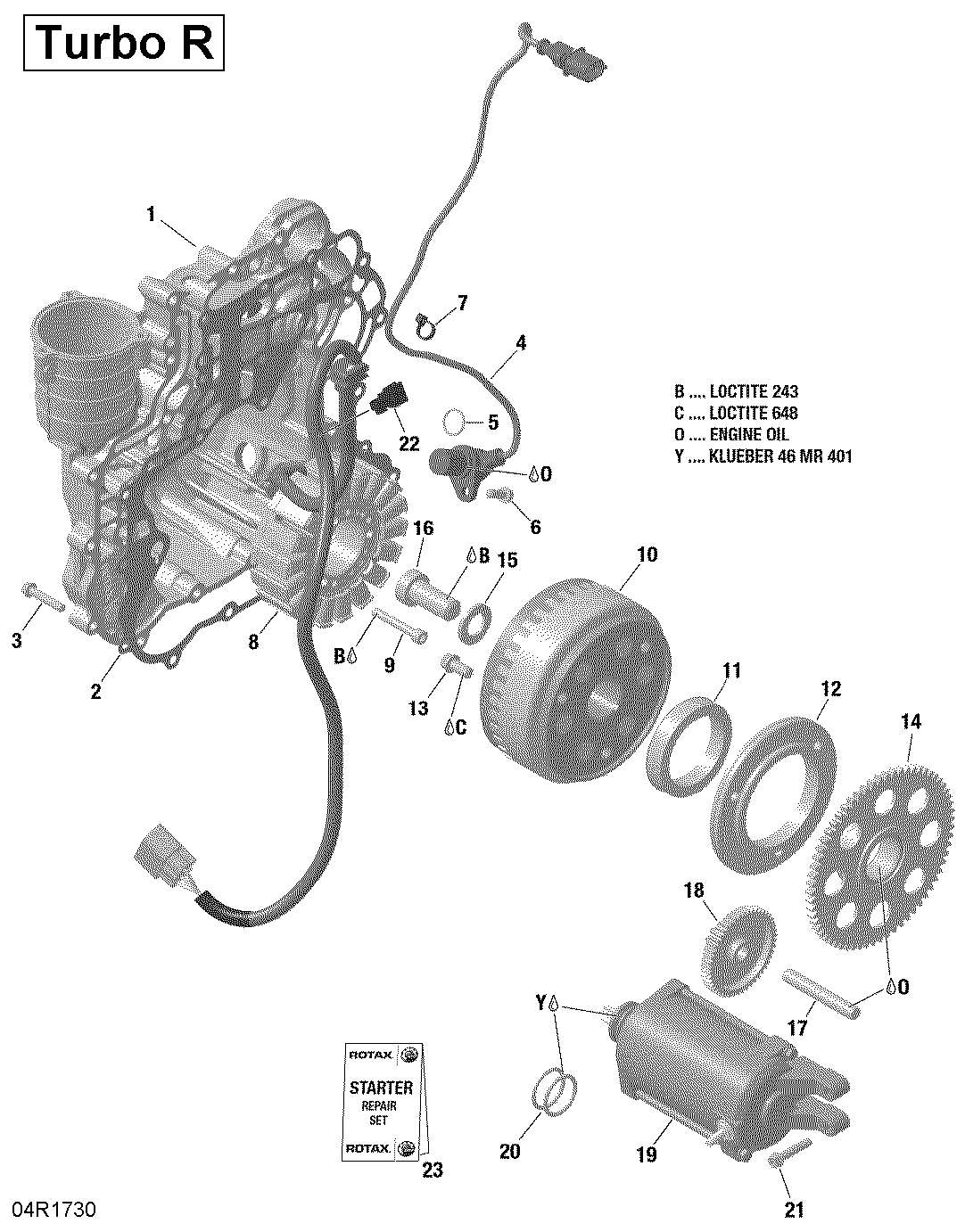

03- Magneto And Electric Starter для BRP 3-Maverick X3 - 2017
-
№АртикулНазвание
-
1420911055 Ignition CoverIgnition Cover
-
2420431640 GasketGasket
-
3420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
4>5420966570 Crankshaft Position Sensor Ass'yCrankshaft Position Sensor Ass'y
-
5420431580 O-RingO-Ring
-
6420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
7420866714 Tie RapTie Rap
-
8420685635 Stator Plate 650WStator Plate 650W
-
9420241956 Allen Screw M6 X 40Allen Screw M6 X 40
-
10420686192 Flywheel Ass'yFlywheel Ass'y
-
11420659113 Sprag ClutchSprag Clutch
-
12420659261 Sprag Clutch HousingSprag Clutch Housing
-
13420440854 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
14420434238 Free Wheel Gear, 64 TeethFree Wheel Gear, 64 Teeth
-
15420627270 ShimShim
-
16420241549 Socket Head Screw M16 X 35Socket Head Screw M16 X 35
-
17420229475 Needle PinNeedle Pin
-
18420634741 Double GearDouble Gear
-
19>20420893830 Starter Ass'yStarter Ass'y
-
20420250145 O-RingO-Ring
-
21420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
22420951650 Cable ClampCable Clamp
-
23420881145 Carbon Brush SetCarbon Brush Set
