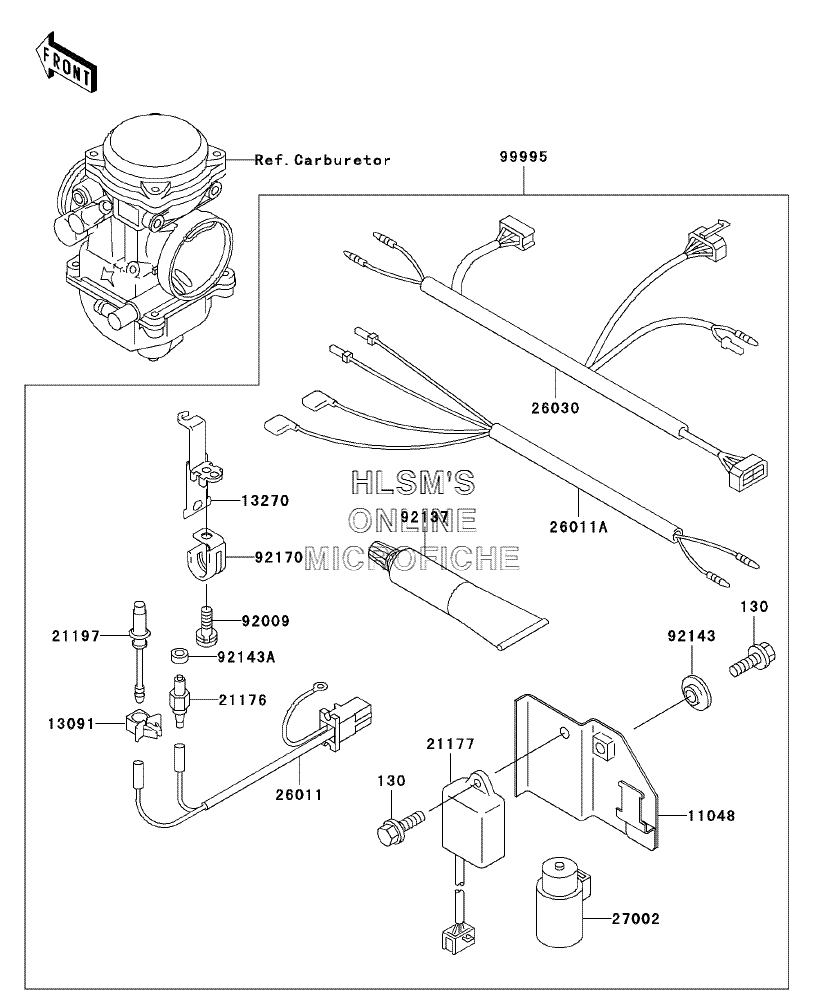

CARBURETOR (OPTIONAL) (CANADA ONLY) для Kawasaki Bayou 300 4x4 (KLF300-C15) - 2003 года выпуска
-
№АртикулНазвание
-
130130J0614 BOLT-FLANGED,6X14,BLACK (CANADA ONLY)BOLT-FLANGED,6X14,BLACK (CANADA ONLY)
-
1104811048-1966 BRACKET,ELECTRIC (CANADA ONLY)BRACKET,ELECTRIC (CANADA ONLY)
-
1309113091-1866 HOLDER,HEATER (CANADA ONLY)HOLDER,HEATER (CANADA ONLY)
-
1327013270-1145 PLATE,HEATER STAY (CANADA ONLY)PLATE,HEATER STAY (CANADA ONLY)
-
2117621176-1069 SENSOR (CANADA ONLY)SENSOR (CANADA ONLY)
-
2117721177-1057 CONTROLLER (CANADA ONLY)CONTROLLER (CANADA ONLY)
-
2119721197-1003 HEATER (CANADA ONLY)HEATER (CANADA ONLY)
-
2601126011-1606 WIRE-LEAD (CANADA ONLY)WIRE-LEAD (CANADA ONLY)
-
26011A26011-1614 WIRE-LEAD (CANADA ONLY)WIRE-LEAD (CANADA ONLY)
-
2603026030-1421 HARNESS,RR (CANADA ONLY)HARNESS,RR (CANADA ONLY)
-
2700227002-1095 RELAY-ASSY (CANADA ONLY)RELAY-ASSY (CANADA ONLY)
-
9200992009-1706 SCREW (CANADA ONLY)SCREW (CANADA ONLY)
-
9213792137-1001 SILICONE COMPOUND (CANADA ONLY)SILICONE COMPOUND (CANADA ONLY)
-
9214392143-1087 COLLAR (CANADA ONLY)COLLAR (CANADA ONLY)
-
92143A92143-1747 COLLAR (CANADA ONLY)COLLAR (CANADA ONLY)
-
9217092170-1396 CLAMP,HARNESS (CANADA ONLY)CLAMP,HARNESS (CANADA ONLY)
-
9999599995-1378 SET,KLF300-C7 (CANADA ONLY)SET,KLF300-C7 (CANADA ONLY)
