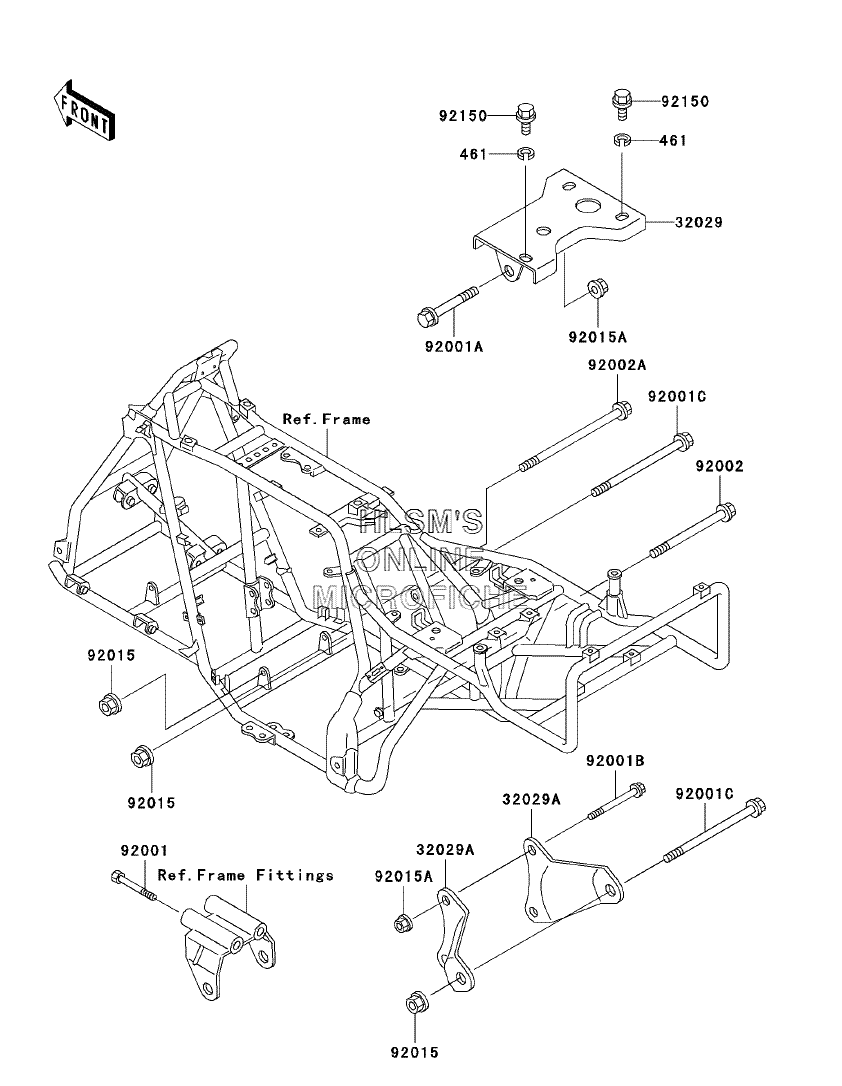

ENGINE MOUNT для Kawasaki Bayou 300 4x4 (KLF300-C15) - 2003 года выпуска
-
№АртикулНазвание
-
461461K0800 WASHER-SPRING,8MM,BLACKWASHER-SPRING,8MM,BLACK
-
3202932029-1569 BRACKET-ENGINE,TOPBRACKET-ENGINE,TOP
-
32029A32029-1614 BRACKET-ENGINE,FRBRACKET-ENGINE,FR
-
9200192001-1375 BOLT,8X65BOLT,8X65
-
92001A92001-1615 BOLT,FLANGED,8X60,BLACKBOLT,FLANGED,8X60,BLACK
-
92001B92001-1718 BOLT,FLANGED,8X85BOLT,FLANGED,8X85
-
92001C92001-1953 BOLT,FLANGED,10X160,BLACKBOLT,FLANGED,10X160,BLACK
-
9200292002-1087 BOLT,FLANGED,10X130BOLT,FLANGED,10X130
-
92002A92002-1546 BOLT,FLANGED,10X180BOLT,FLANGED,10X180
-
9201592015-1335 NUT,FLANGED,10MMNUT,FLANGED,10MM
-
92015A92015-1432 NUT,8MMNUT,8MM
-
9215092150-1066 BOLT,FLANGED,8X14BOLT,FLANGED,8X14
